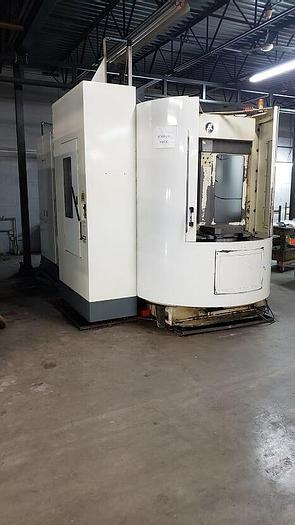

2002 Kitamura HX-400

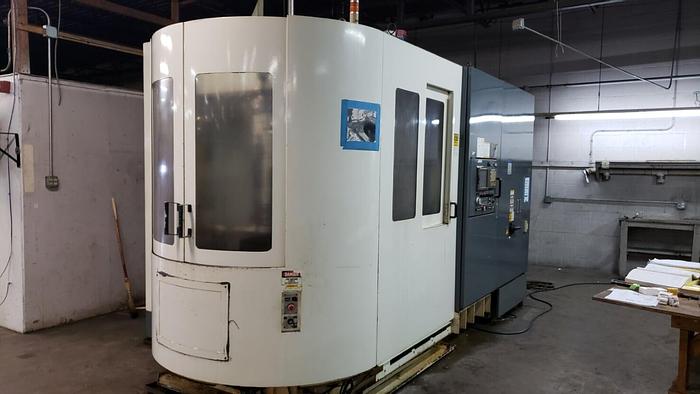

Kitamura Model HX-400 CNC Horizontal Machining Center,

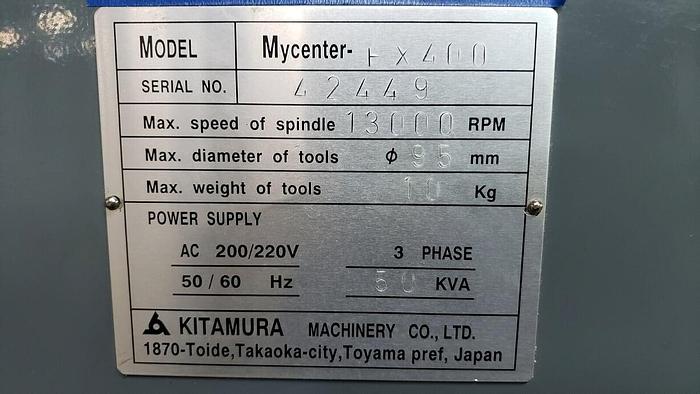

s/n 42449,

New 2002

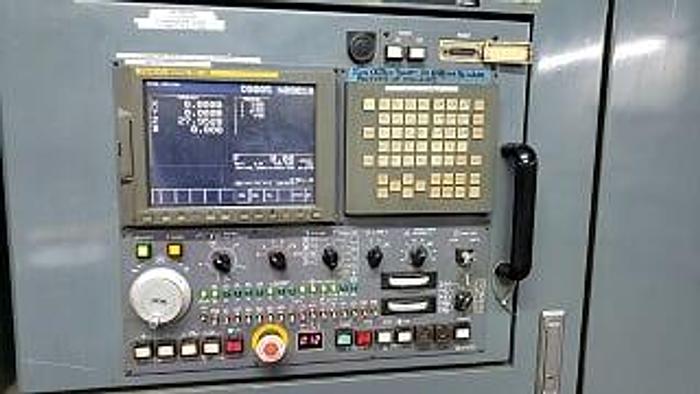

 Fanuc 16iM CNC Control,

Full 4th Axis,

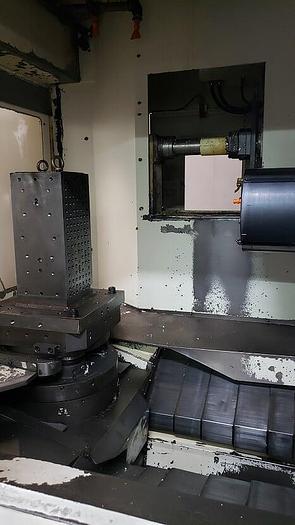

(2) 15.7" X 15.7" Pallets,

26" X 24" X 22" Travels,

40 Taper,

50 ATC,

13,000 RPM,

Specifications:

Max Weight Per Pallet...... 880 Lbs

Number Of Pallets............ 2

X-Axis Travel.........26"

Y-Axis Travel...........24"

Z-Axis Travel.........22"

“B” Axis Indexing.......0.001

Spindle Center To Table Top.......2”-26”

Spindle Nose To Pallet Center.... 5.9” X 27.9”

Rapid Traverse Rate........1,969 IPM XYZ

Spindle Speed.......13,000 RPM

Spindle Motor........ 35 HP

Tool Capacity..........50

Tool Change Time (Tool To Tool)...........1.3 Sec

Tool Change Time (Chip To Chip)........ 3.2 Sec

Machine Weight.......36,000 Lbs

Machine Dimensions.......209" x 97" x 126"H
