2001 BROTHER TC-S2A-O

2001 BROTHER TC-S2A-O

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

Description

BROTHER TC-S2A-0 CNC DRILLING & TAPPING CENTER

Catalogue Specifications

Table Work Area: 31.5" L x 12.6" W

X-Axis Travel: 27.5"

Y-Axis Travel: 14.2"

Z-Axis Travel: 16.1"

Table to Spindle Nose: 5.5" Min. - 16.1" Max.

Spindle Speeds: 16-10,000 RPM

Max. Spindle Speed in Tapping Mode: 6,000 RPM

Spindle Taper: # 30

Spindle Motor (10 Minutes / Continuous): 11.2 HP / 6.6 HP

Rapid Traverse (X, Y): 1,417 IPM

Rapid Traverse (Z): 1,969 IPM

Cutting Feedrate (X,Y,Z): 2.0 IPM - 394 IPM

Manual Feedrate (X,Y,Z): 2.0 IPM - 155 IPM

Maximum Table Load Capacity: 330 Lbs.

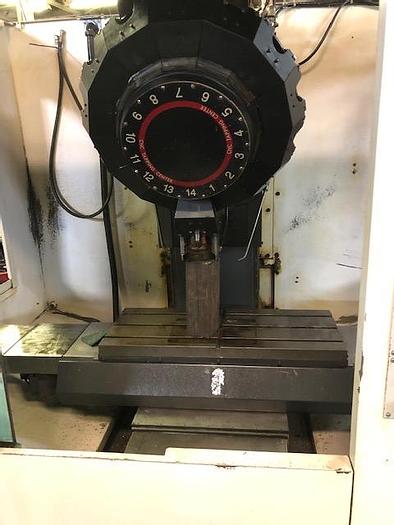

ATC: 14 Positions

Maximum Tool Weight: 6.6 Lbs.



EQUIPPED WITH:

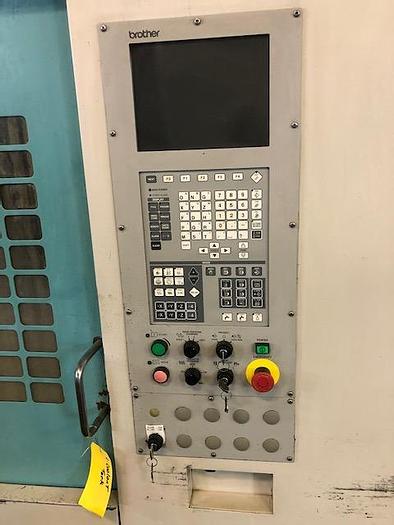

Brother A00 CNC Control (Conversational or G-Code)

Automatic Tool Changer

Coolant System

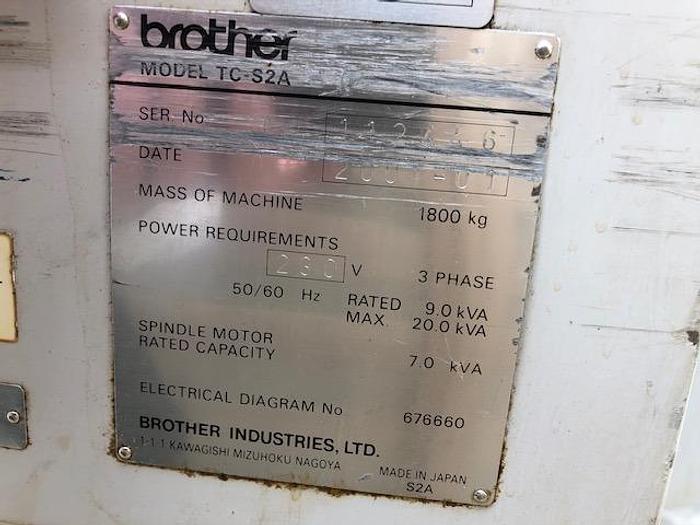

Serial Number: 112446


Year (New 2001)

https://youtu.be/19WUBG-RpME



Specifications

ManufacturerBROTHER
ModelTC-S2A-O
Year2001
ConditionUsed
