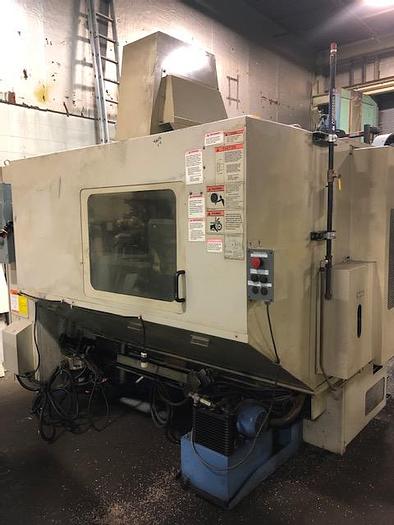

2000 MAZAK Integrex 100Y

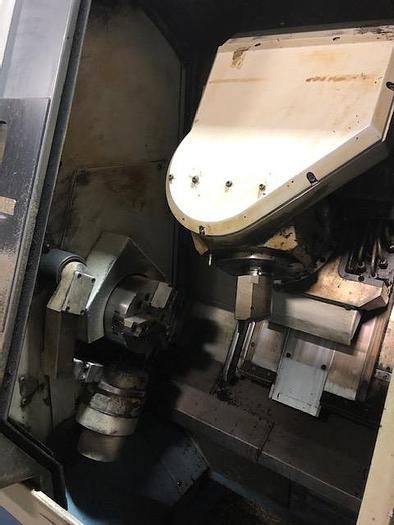

Mazak Integrex 100Y 2000 W/ LIVE TOOLING / MILLING

C-Axis:

Y-Axis:

Live Tooling

B-Axis:

B-Axis Travel: 0.001 Degree Incr"

SPECIFICATIONS

X-Travel: 16"

Z-Travel: 21"

Distance Between Centers: 20"

Max Swing Over Bed: 19"

Max Turning / Cutting Length: 20"

SPINDLE

Bar Capacity: 1.65"\43mm

Chuck Size: 6" kitegawa b 206

Chuck Type: Hydraulic

Spindle Bore: 2"

Spindle Speed: 10,000 RPM

Spindle Motor: 10 HP

Spindle Nose: A2-5

Total Spindles: 1

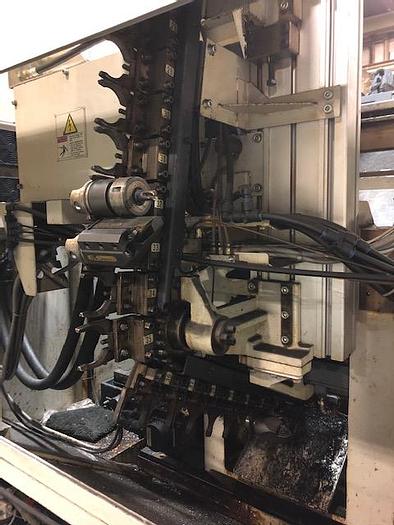

TURRET

Single Turret: Equipped With

Tool Positions: 40

Turret Max RPM: 6000 RPM

Turret Options: KM-63 Tooling Type

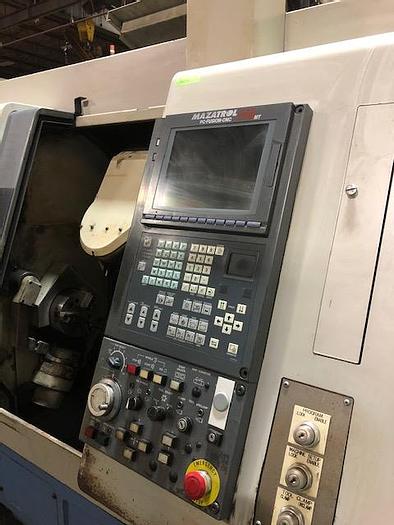

CONTROL Fusion 640T Control

Control Options: Color Monitor;Floppy Drive;RS-232;EIA/ISO Code Input Function

Additional Control Options: 10.4" Color TFT Display

IC Memory Card Interface

3.5" Floppy Drive

2GB Hard Drive

Machine Options:

Tool Eye

Additional Machine Specs: Spindle Index (Programmable): .001° / 360,000 Positions

6" Chuck

Spindle Torque: 119 ft/lb

(2) PCMCIA Type II Slots Variable Feed Rate Control

Tool Life Monitoring

Tool Wear Compensation

Automatic Tool Eye

Background Tool Patch Check

Contouring Y-Axis Control

Door Interlock

Coolant Through Milling Head

Milling-Spindle Synchronous Tapping

PCMCIA Interface

Hydraulic Pressure Interlock

KM-63 Tooling Type
