2006 HARDINGE ML-Elite ll 8/51 CNC 3 Axis Turning Center Lathe

Contact us for price

Livonia, MI

orCall 732-367-4130

Description

Hardinge ML-Elite ll 8/51 CNC 3 Axis Turning Center Lathe
Manufacturer: Hardinge
Model: ML Elite ll 8/51
Serial Number: ML-335
Year: 2006
General Specifications
CATALOG SPECIFICATIONS: Swing Over Bed 21"
Maximum Cutting Diameter 13.4"
Maximum Machining Length 14"
Maximum Bar Capacity 2.00"
X-Axis Travel 8.25"
Z-Axis Travel 14"
Rapid Traverse Rates X / Z 1,181 IPM
X and Z-axis Linear Guideways and Ball Screws

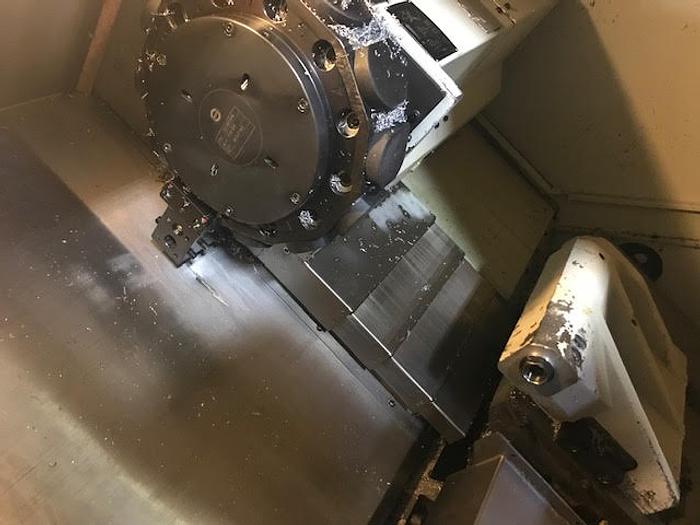

12-Position Turret,
Spindle Nose A2-6
20C Collet,
Bore 2.5",
Speeds 50 - 5,000 RPM,
Spindle Motor 15 HP,
2" Bar Cap.,
8" Chuck Cap Hardinge Patented Jaw Chuck/Collet Ready Spindles
230V, 3-Phase, 50/60Hz, 100FLA, 115/24 Control Volts,
Spindle Drive 44-AMPS

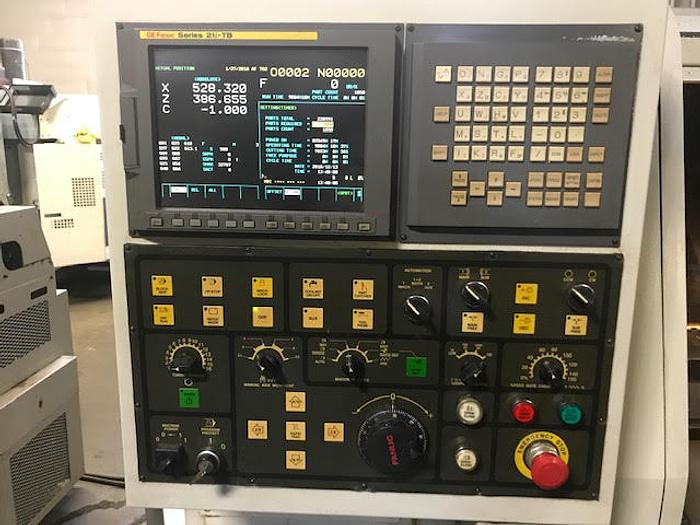

GE Fanuc Series 21i-TB Programmable Control Unit
Equipped With

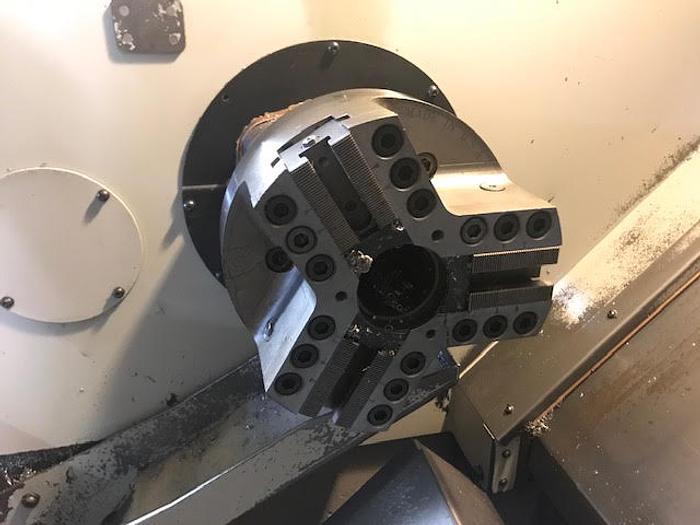

Fanuc 21i-TB CNC Control 8" 3-jaw chuck 12 position turret Live Tooling C" Axis, tailstock chip conveyor
ALL SPECIFICATIONS SUBJECT TO BUYER'S VERIFICATION

Specifications

Year2006
ConditionUsed
