STAR SR20R Swiss Type Cnc Lathe 2002

Contact us for price

Livonia, MI

orCall 732-367-4130

Description

Star SR20R Swiss Type Cnc Lathe 2002
Manufacturer:
STAR
Type:
Swiss-style Lathe
Model:
SR-20R
Year:
2002
Condition:
Good Working Condition
Specification:
STAR CNC Swiss Lathe
Model: SR-20R
Year: 2002

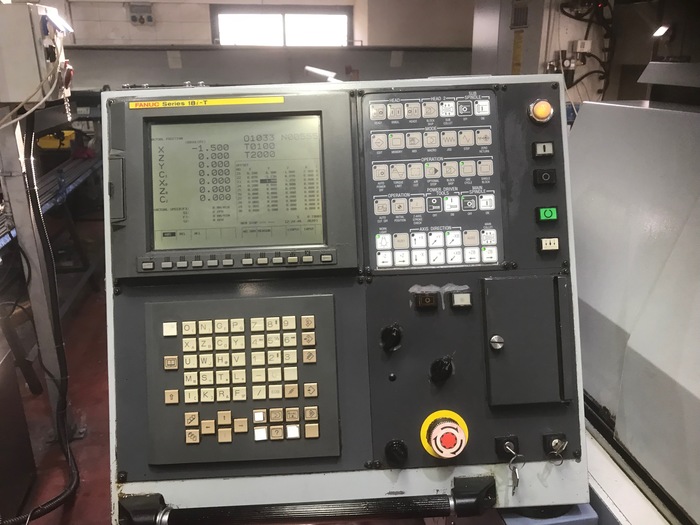

Control: Fanuc 18i-T
Max. machining diameter: 20 mm
Max. headstock stroke: Bar diameter x 2.5 (max. 55 mm)
4-spindle sleeve holder (for front working side)
- Max. drilling capability: 10 mm
- Max. tapping capability: M8 x P1.25
Power-driven attachment
- Max. drilling capability: 6 mm
- Max. tapping capability: M5 x P0.8
Main spindle speed: max. 10, 000 rpm
Main spindle motor: 2.2kw/3.7kw
Power-driven att. spindle speed: max. 5, 000 rpm
Power-driven att. drive motor: 0.4 kw
Dimension (WxDxH): 1, 855 x 1, 060 x 1, 750 mm
Weight: 1, 600 kg
Bar Feeder
Maker: IKURA SEIKI
Model: S204

Specifications

ConditionUsed
