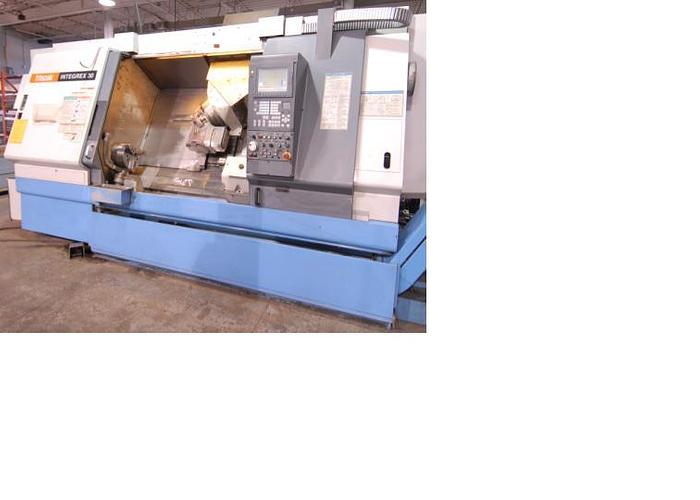

1999 MAZAK Integrex 30Y/1000

Contact us for price

Livonia, MI

orCall 732-367-4130

Description

Model: Integrex 30Y/1000
New: 1999
S/N 144045
Chuck Size ……………………………………… 12" Hyd. Chuck
Max Cutting Dia. / Length ................ 20" / 40"
Travel X ………………………………………….. 17.75"
Travel Y-Axis ................................... +/- 3.5"
Travel Z-Axis ................................... 40.5"
Spindle Nose/Bore ........................... A2--8 / 3.46"
Spindle Speeds ................................ 35 - 3,500 RPM
Spindle HP Cont / 30 min ................. AC 35 / 30 HP
Rotary Tool Spindle Nose .................. 40 Taper
Rotary Tool Spindle Speed ................ 15 - 6000 RPM
Rotary Tool Spindle HP ..................... AC 10 HP
Rapid Traverse Rate ......................... 393 / 472 / 708 IPM
Magazine Capacity ........................... 80 Position ATC
Approximate Machine Weight ........... 14,330 lbs.
Approximate Dimensions ................. 216" x 89" x 120"
- Mazatrol Fusion 640 Control
- 80 Position Automatic Tool Changer
- Tooleye
- 12" 3-Jaw Hyd. Chuck
- Parts Catcher

Specifications

ManufacturerMAZAK
ModelIntegrex 30Y/1000
Year1999
ConditionUsed
Maximum swing / over carriage20" / 15.75"
