BROTHER TC-S2D 5-AXIS CNC DRILL TAP
No longer available
BROTHER TC-S2D 5-AXIS CNC DRILL TAP
Livonia, MI
Description

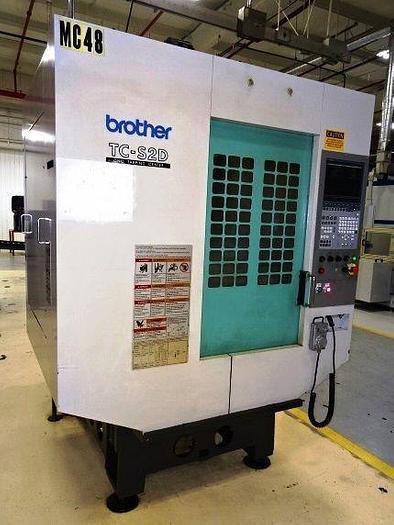

BROTHER TC-S2D 5-AXIS CNC DRILL TAP VERTICAL MACHINING CENTER
General Specifications
X-Axis Travel 19.7"
Y-Axis Travel 15.7"
Z-Axis Travel 11.8"
Distance Between Table top and Spindle 7.1" to 18.9"
Work area size 23.6" x 15.7"
Max. Table load capacity 551 Lbs.
Spindle speeds 10 to 10,000 RPM
Speed during tapping 6,000 RPM
Spindle Taper BT-30
Spindle Motor 14 HP

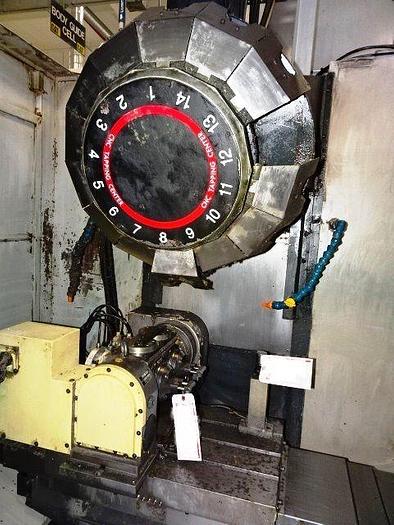

Tool Storage Capacity 14
Cutting Feed Rate (X,Y) 04 to 394 IPM
Cutting Feed Rate (Z) 0.4-7.87 IPM
Rapid Traverse Rate 1969 IPM Floor 81"x 87" x 112"H Machine weight 5,300 lbs.
Motor Specifications
Not Available
Equipped With

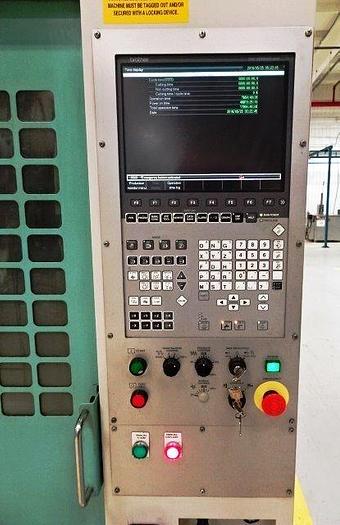

CNC B00 Controls
5-Axis Drives

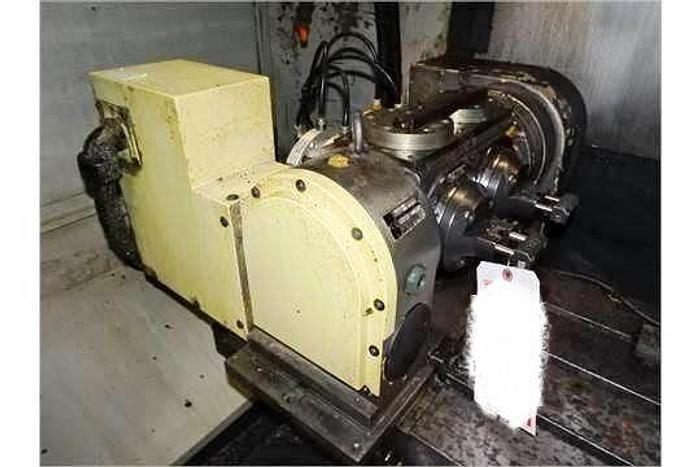

Nikken 5AX-2MT-105-120 (2) Spindle Rotary Tilting Table
105mm Diameter Table with 2 Stations
105 deg., Tilt, 22 RPM, 22 RPM, .001 increment
Blum Tool Setter, Coolant System, 15 Kva Transformer
REPLACEMENT PRICE APPROX $150,000.00
OPERRATING HOURS: 17,954
Serial Number
111147 Year
2009
Specifications
| Manufacturer | BROTHER |
| Model | BROTHER TC-S2D 5-AXIS CNC DRILL TAP |
| Year | 2009 |
| Condition | Used |
