1997 Takamaz XD-10 Value Fanuc 16T 1997

Contact us for price

Livonia, MI

orCall 732-367-4130

Description

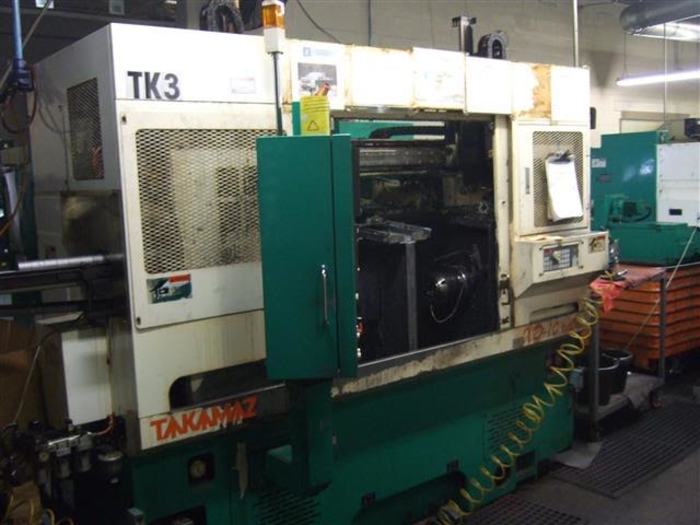

TAKAMAZ MODEL XD-10 CNC TWIN SPINDLE TURNING CENTER WITH GANTRY LOADING SYSTEM FANUC 16T 1997
Manufacturer: Takamaz
Model: XD-10 Value
Under Power: Yes
Capacity:
Chuck Size: 6" or 8" (x 2)
Optimum Turning Diameter: 3.14"
Optimum Turning Length: 2.75"
Spindle:
Spindle Nose: A2-5
Spindle Bearing ID: 2.95"
Spindle Speed: 4,500 RPM
Tool Post:
Type: 10 Station
Square Cutting Tool: 0.78"
Boring Holder ID: 0.98"
Maximum Stroke - X-Axis: 4.72"
Maximum Stroke - Z-Axis: 20.4"
Rapid Traverse - X-Axis: 708 IPM
Rapid Traverse - Z-Axis: 944 IPM
Motors:
Spindle Motor: AC 7.1 / 4.8 HP X 2
Feed Motor (X): AC 1.3 HP
Feed Motor (Z): AC 1.8 HP
Hydraulic Motor: AC 1.9 HP
Coolant Motor: AC 0.32 HP X 2
Size:
Spindle Center Height: 37.9"
L x W x H: 91" x 67" x 77"
Machine Weight: 9040 Lbs
Electric:
Total Electric Capacity: 29 kVA
Machine #1:
New 1997 - s/n 300050
Equipped With:
Takamaz-Fanuc Control (Fanuc 16T)

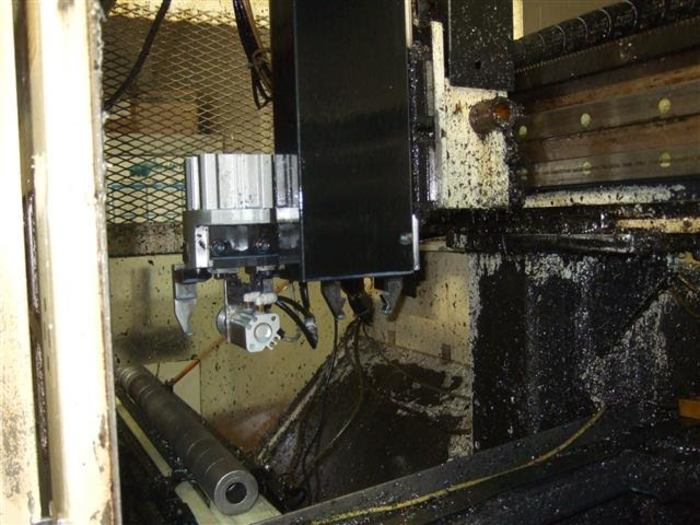

Robotic load/unload

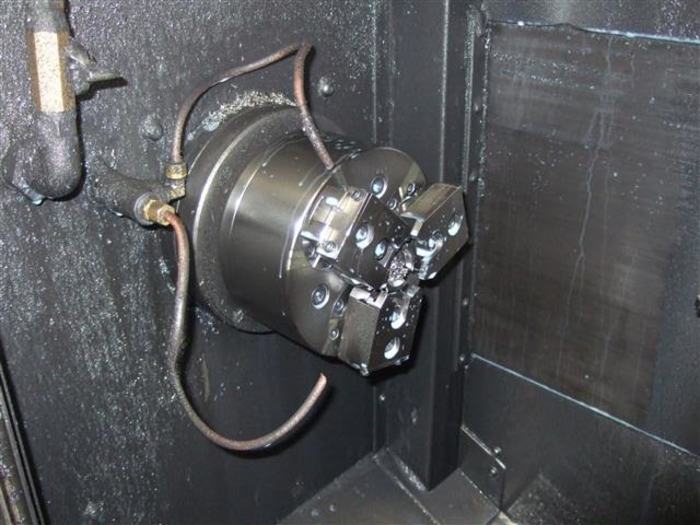

6" Kitagawa Chuck (Main)
Microcentric Collet (Sub-Spindle)
Chip Conveyor

Specifications

Year1997
ConditionUsed
ControlFanuc 16T
