OKUMA LU300

Contact us for price

Livonia, MI

orCall 732-367-4130

Description

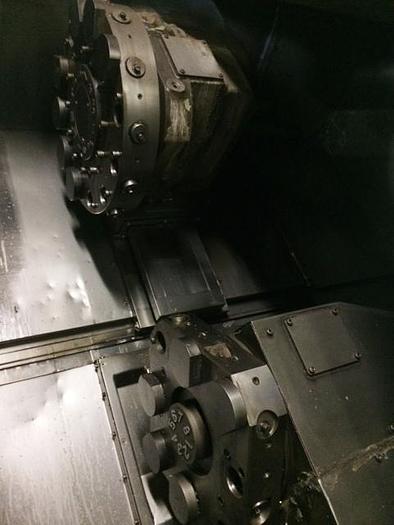

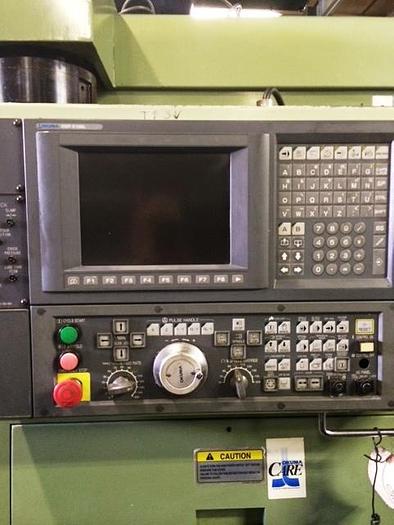

EQUIPPED WITH: Okuma OSP U100L CNC Control, Upper and Lower Simultaneous Tool Turrets,.
CATALOGUE SPECIFICATIONS:
Max Swing Over Slant Bed .................................... 20.87"
Max Turning Diameter......................................... 14.57"
Max Machinable Center Distance............................... 23.62"
Cross Travel (X-Axis) Upper Slide Above Center....... 10.23"
Longitudinal Travel (Z-Axis) Upper Slide.................... 25.2"
Rapid Traverse Rate X-Axis .................................. 787 IPM
Rapid Traverse Rate Z-Axis................................... 984 IPM
Spindle Bore ................................................ 2.44"
Spindle Speed Range (RPM).................................... 75-5000
Spindle Horsepower........................................... 30 HP
Approximate Machine Dimensions (Main Machine)................ 126" x 86"
Approximate Machine Height................................... 76"
Approximate Machine Weight (Main Machine)....................

Specifications

ManufacturerOKUMA
ModelLU300
Year2002
ConditionUsed
