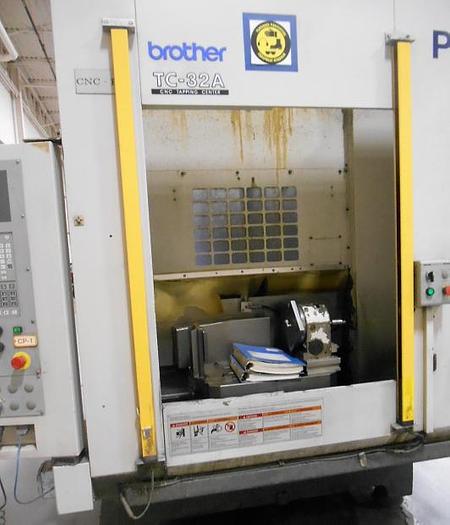

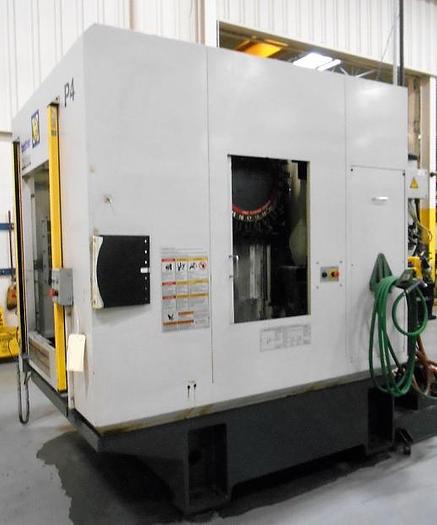

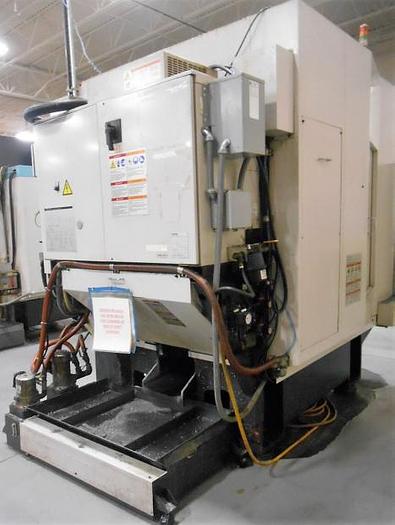

2000 BROTHER TC32A W/ Nikkon 4th axis 2000
No longer available
2000 BROTHER TC32A W/ Nikkon 4th axis 2000
Livonia, MI
Description
Brother TC32A CNC DRILL/TAP CENTER WITH PALLET CHANGER, Nikkon 4th axis, 21.65"X13.77"PALLETS,17.7"X,12.6"Y,16.1"Z,26 ATC, 12,000 RPM, DRILL/TAP, COOLANT, NEW 2000
Specifications
X-Axis Travel 17.71"
Y-Axis Travel 12.59"
Z-Axis Travel 16.14"
Distance from Table to Spindle 7.87"-24.01"
Table size 21.65"x13.77"
Max. Load Weight 176 Lbs.
Spindle Speeds 12-12,000 RPM
Spindle Taper HSKA40
Spindle Drive 7.5 HP/5 HP
Rapid Traverse 1968 IPM
Cutting Feed 787 IPM
Machine Dimensions (approx.) 130"x70"x93"H
Machine Wight (approx.) 7,700 Lbs.
Equipped With
Spindle Taper BT30
21 Automatic Tool Changer
Rotating Pallets

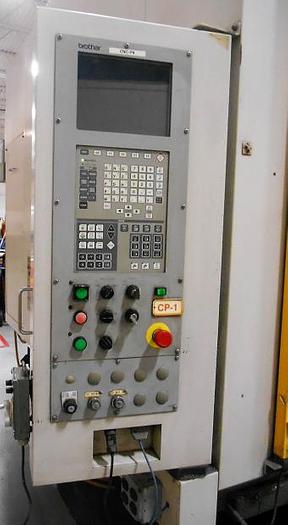

Brother A-00 CNC Control
Coolant System
Specifications
Manufacturer | BROTHER |
Model | TC32A |
Year | 2000 |
Condition | Used |
