OKUMA Crown 762S-BB OSP-700L Control
No longer available
OKUMA Crown 762S-BB OSP-700L Control
Livonia, MI
Description

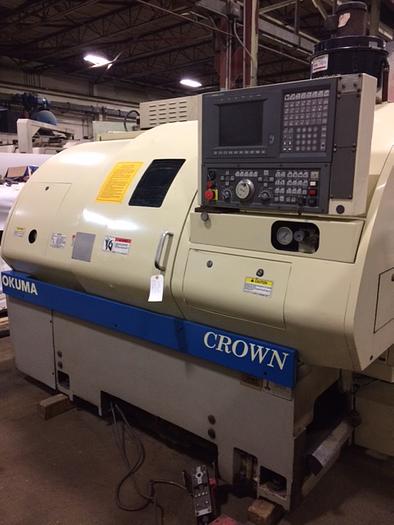

Okuma Crown Lathe Type 762S-BB OSP-700L control Big Bore
Installed 11/97
S/N: 09100308
10 inch SMW quick change chuck model THW 265-71
Chip conveyor Hennig KMO-0320-00
Royal filtermist F275
Zebra oil skimmer
30Kva three phase auto transformer
Big Bore
Assorted Tooling
• Specifications:
Capacity:
Max Turning Diameter: 10.63"
Max Turning Length: 19.68"
Distance Between Centers: 22.29"
Max Bar Capacity: 2.05"
Swing Over Bed: 21.65"
Swing Over Cross Slide: 15.75"
X Axis Travel: 7.28"
Z Axis Travel: 20.47"
Rapid Traverse X Axis: 590 IPM
Rapid Traverse Z Axis: 787 IPM
Spindle Nose: A2-6
Spindle Bore: 2.44"
Spindle Speed: 75 - 4200 RPM
Spindle Motor: 20 HP
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Tailstock Taper: MT-5
Tailstock Quill Dia.: 3.54"
Tailstock Quill Travel: 4.72"
General:
Power: 220v / 3-Phase
Overall Dimensions: 104" x 74" x 72" High
Weight: 10,000 lbs
Specifications
Manufacturer | OKUMA |
Model | Crown 762S-BB |
Year | 1997 |
Condition | Used |
