MORI SEIKI SL5A
No longer available
MORI SEIKI SL5A
Location:Livonia, MI
Description
Mori Seiki SL5A, Cnc Lathe 1986
S/N 1003
Specifications:
Maximum Machining Diameter 14.2"
Tailstock Quill Stroke / Base Stroke 3.94" / 31.50"
Equiped with

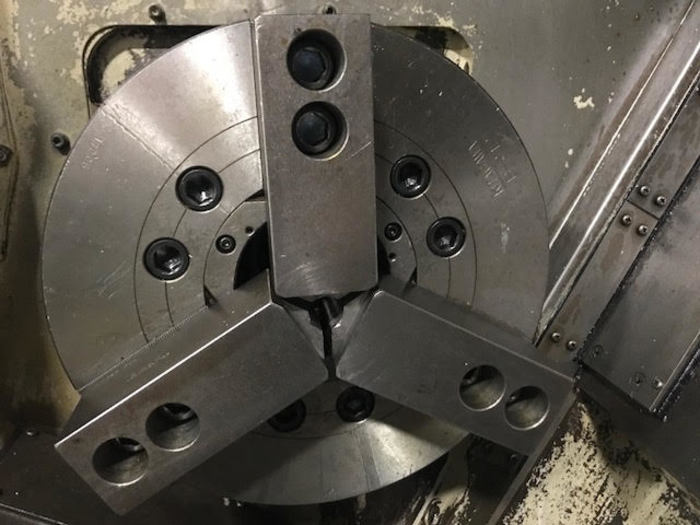

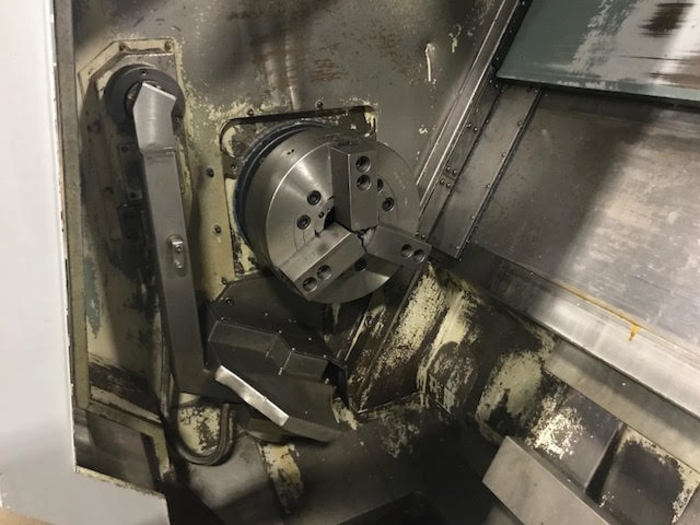

12" Hydraulic Chuck
Chip Conveyor
Tailstock

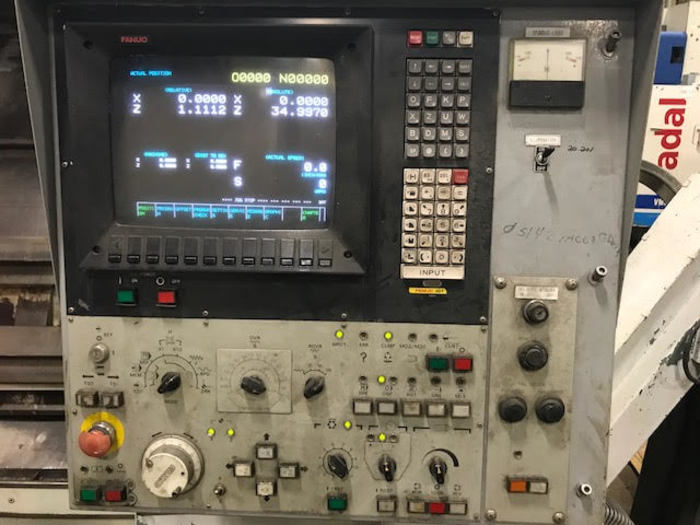

Conversational Control Option
Coolant System
RS-232 Port for DNC
Condition Good
Specifications
| Condition | Used |
| Chuck size | 12" Hydraulic Chuck |
| Maximum swing over bed | 24.4" |
| Center distance | 42.1" |
| X-axis travel | 12.2" |
| Z-axis travel | 42.1" |
| Spindle motor 30 min. / cont. | 40 HP / 30 HP |
| Spindle speed | 25 - 2500 RPM |
| Spindle nose / spindle bore | A2-8" / 3.03" |

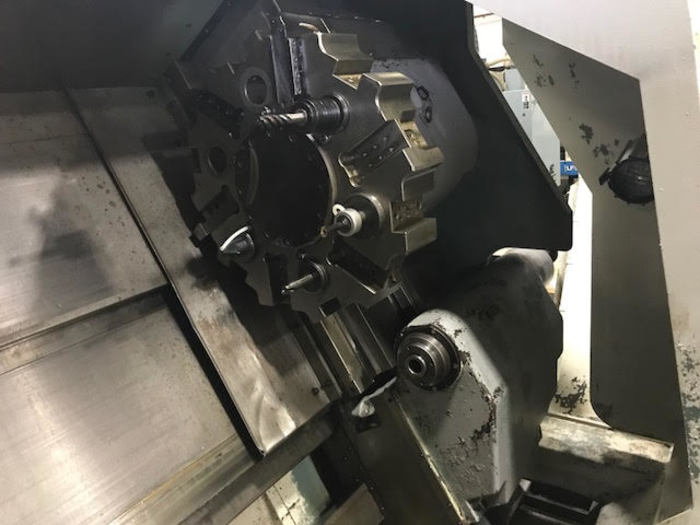

| Turret type | 10 Position Turret |
| Tailstock quill center | MT # 4 |
| Machine dimensions | 136"x74"x90" |
| Machine weight | 15,400 lbs. |
