KITAMURA H400 Fanuc 15M
No longer available
KITAMURA H400 Fanuc 15M
Livonia, MI
Description
1998 Kitamura H400 Fanuc 15M
S/N 42369

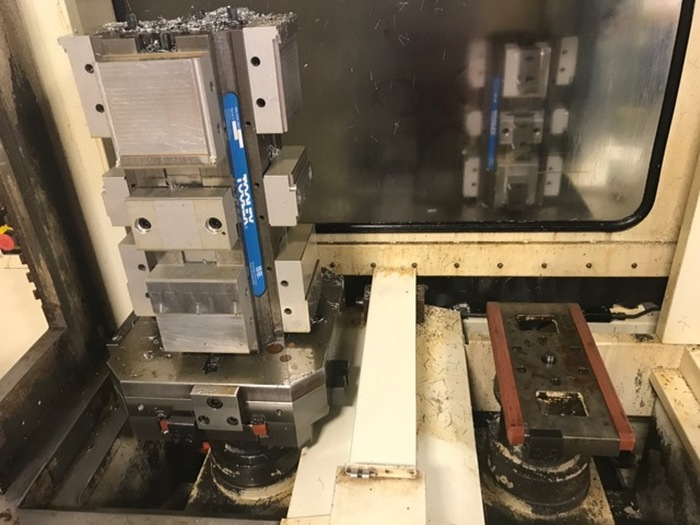

Pallet Size / Number of Pallets 15.7" x15.7" / 2 plt
Pallet Indexing .001 Degree Index
Number of Tool Positions 100 Position ATC
Equiped with
100 Position Toolchanger

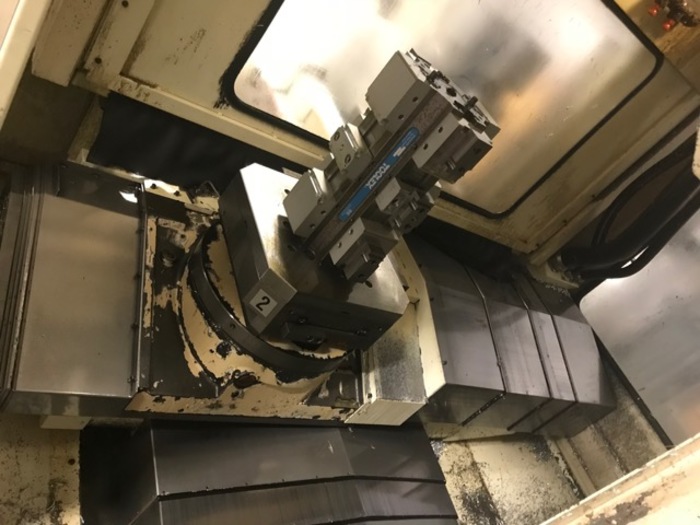

Full 4th Axis Rotary Table
Coolant Through Spindle
9.5" Color Monitor
Rigid Tapping
RS 232 Port Interface
Chip Conveyor
All Available Manuals
Specifications
| Condition | Used |
| X-axis travel | 24.02" |
| Y-axis travel | 20.08" |
| Z-axis travel | 20.08" |
| Maximum pallet load | 880 lbs. |
| Spindle taper | BT # 40 |
| Spindle speed | 20 to 10,000 RPM |
| Spindle motor | 20 HP |
| Spindle nose to table top | 2" - 21.8" |
| Pallet change time | 10 seconds |
| Rapid traverse rates | 949 IPM |
| Tool change time | 1.7 seconds |
| Machine dimensions l x w x h | 15' x 8' x 10' |
| Machine weight | 22,000 lbs. |
