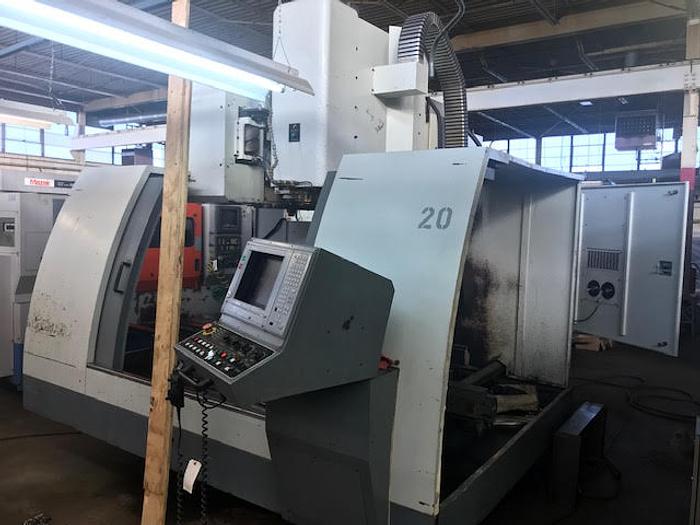

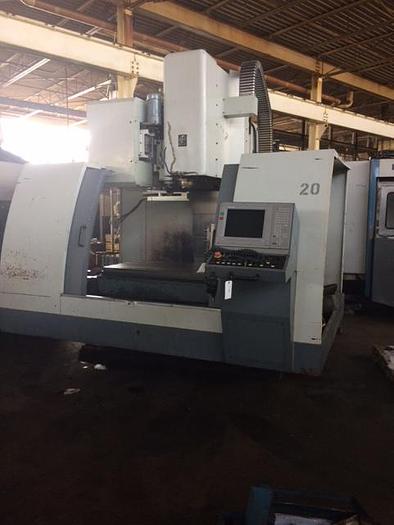

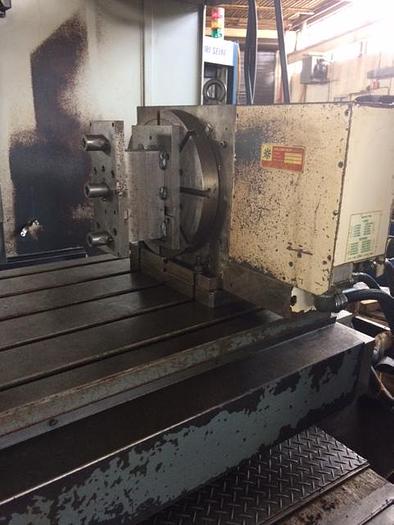

2001 BRUTE VMC 63/35/35 VMC, 50 Taper,8K RPM, with 4th axis Rotary Table
No longer available
2001 BRUTE VMC 63/35/35 VMC, 50 Taper,8K RPM, with 4th axis Rotary Table
$21,000 (USD)
Livonia, MI
Description
Machine Specifications:

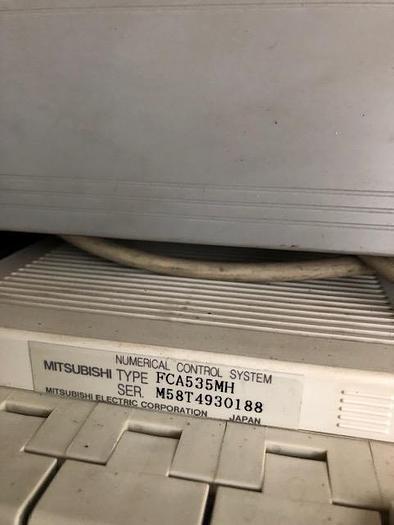

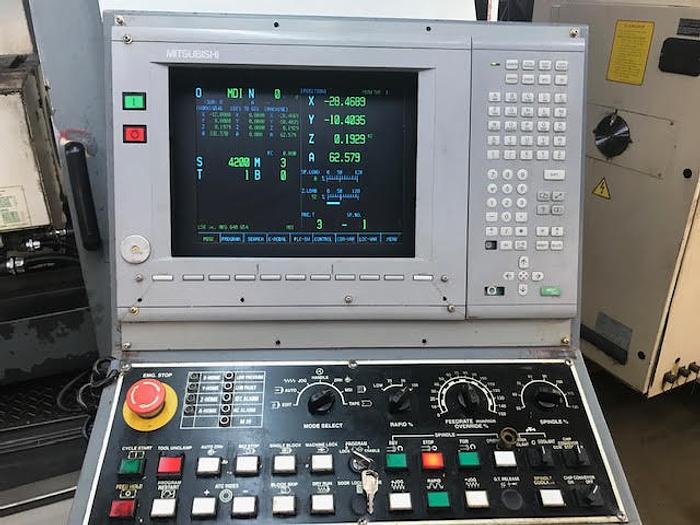

Control Miisubishi Meldas 535
Travels
X 62.9”
Y 35.4”
Z 35.4”
Spindle nose to table 6-41.4”
Spindle center to column ways 36”

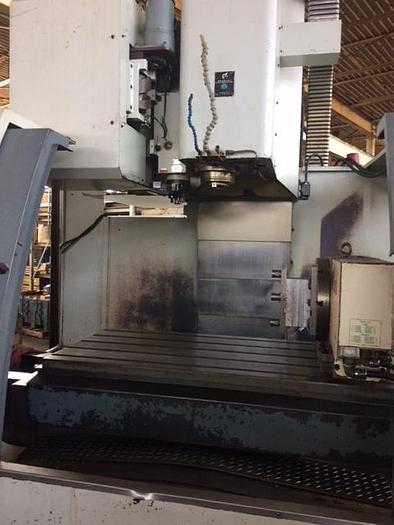

Table (L x W) 71” x 32”
T-slots .866” x 5.9”
Machine base width 64”
Machine saddle length 122”
Door opening 63”
Crane loading access Std
Max weight on table 8,000 lbs
Spindle
Taper size #50 Taper
Speed range 60-10,000 rpm
Transmission Digital Direct belt drive
Spindle max torque rating 325 ft-lbs
Spindle motor max power rating 25 hp opt 30 hp
CNC temperature controlled X/Y & Spindle
Ball screw diameter 63 mm
Ball screw pitch 10 mm
Max rapid rate X/Y/Z axes 590 IPM
Max cutting rate X/Y/Z axes 590 IPM
Accuracy
Positioning +/- .00015”
Repeatability +/- .0001”

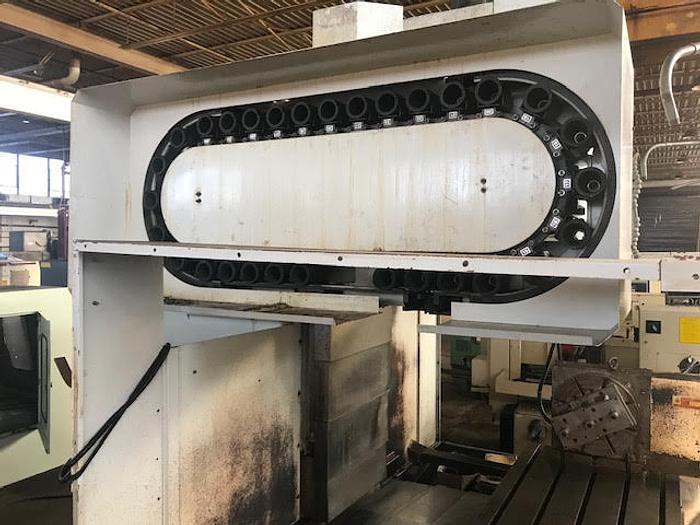

Tool Changer
Type (side mount) 24 Dual-arm
Max tool diameter 4.25”
Max tool weight 22 lbs
General
Air required @ 80-100 PSI 6 scfm / 18 scfm momentary
Power required 220 VAC 100 amps
Coolant tank capacity 106 gallons
Coolant tank motor 5 hp
Machine size (D x W x H) 161” x 165” x 135”
Machine weight 37,400 lbs
Hand wheel Remote
Rigid tapping Std
Automatic chip removal system Std
Specifications
Manufacturer | Brute |
Model | VMC 63/35 |
Year | 2001 |
Condition | Used |
