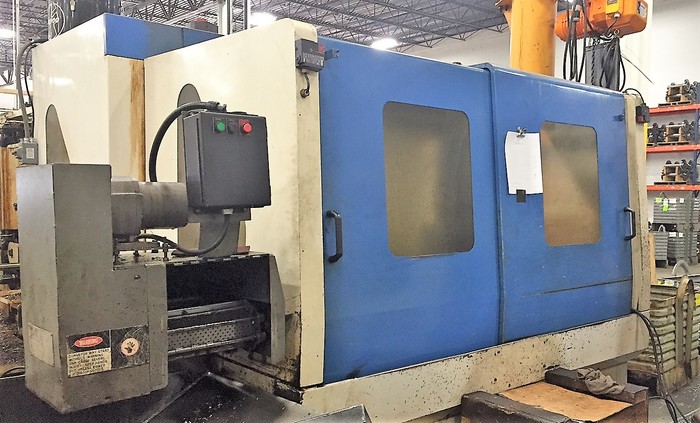

KIA CENTER H63 HMC 2006

No longer available

KIA CENTER H63 HMC 2006

Livonia, MI

Description

HYUNDAI KIA CENTER H63 Horizontal Machining Centers CNC (Fanuc 18iMB) 2006 Control CNC (Fanuc 18iMB) Year 2006 Description Coolant Thru Spindle (1000 psi Cool Jet), Rigid Tapping, 60 Tool Magazine, Chip Conveyor (Left Front Exit), Dual Chip Augers, Yellow Operation End Light, Remote Manual Pulse Generator, Two Gear Range Headstock, Heavy Duty Box Way Construction Specifications Pallet Size 24.8" (2) Travel: X-Axis 37.4" Y-Axis 32.5" Z-Axis 29.9" Pallet Index 1 Degree Spindle Speed 80 - 8000 RPM Spindle Motor 30 / 25 HP Spindle Taper Cat 50 Spindle Center to Table Top 0 - 32.5" Spindle Nose to Table Center 6.9" - 36.8" Tools 60 Rapid Traverse Rates 787 IPM Pallet Load Capacity 1000 lbs. Max Tool Diameter 4.3" Max Tool Length 23.6" Max Tool Weight 44 lbs. Machine Dimensions (L x W) 187.8" x 124.8" Machine Weight 30,800 lbs. FEATURES: FANUC 18iMB CNC CONTROL 10.4" Color LCD Coolant Thru Spindle (1000 psi CoolJet) Rigid Tapping 60 Tool Magazine Chip Conveyor (Left Front Exit)

Specifications

ConditionUsed
