1988 OKUMA LB15 BB CNC Lathe

Contact us for price

Livonia, MI

orCall 732-367-4130

Description

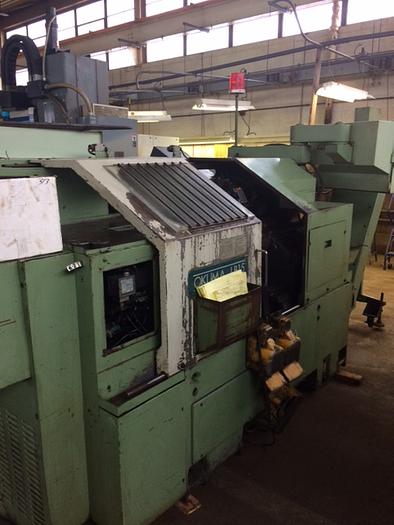

Okuma LB15 BB CNC Lathe

Year 1988

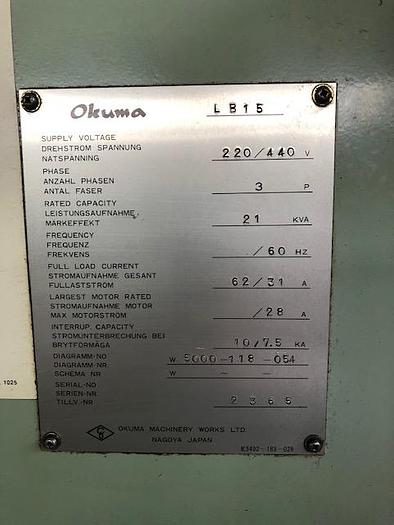

S/N 2365
General Specifications
Bar capacity 2.5"
Spindle bore 3"
Swing Over Bed 15.75”
Max Turning Diameter 9.84”
Max Work Length 19.68”
X-Axis Travel (Cross-Slide) 5.12” plus 1.77”
Z-Axis Travel (Longitudinal) 20.47”
Spindle Bore Diameter Approximately 2.3”
Spindle Nose A2-6
Spindle Speeds, 2 Ranges 70-3800 RPM
Spindle Drive Motor 15-20 HP
Number of Turret Positions-12
Size of OD/ID Turning Tools 1” x 1.5”
Tailstock Quill Diameter 3.45”
Tailstock Taper of Center-MT5
Tailstock Quill Stroke 4.72”
Cutting Feedrate-XZ 0.0001-40IPR
Rapid Traverse-XZ 472 IPM
Length of Bed Slideway 46.06”
Width of Bed Slideway 15.35”
Floor Space 107.68” x 73.03”
Approximate Machine Weight-9900 Lbs.

Equipped with: Okuma OSP5000L-G CNC Control-green screen with graphics, has IGF Conversational Programing, Chip Conveyor, new MT5 Riten Live Center, new Kitagawa B-208 Hydraulic Chuck with one set of jaws, 12 station turret has enough tools to start turning parts, includes a set of Manuals.

Specifications

ManufacturerOkuma
ModelLB15 BB CNC Lathe
Year1988
ConditionUsed
