2005 FADAL VMC 4020HT with 4-Axis & Fanuc Control- Video
No longer available
2005 FADAL VMC 4020HT with 4-Axis & Fanuc Control- Video
Livonia, MI
Description
Equipped With:
Fanuc 18i-MB5 CNC Control, 24 station Twin-Arm Automatic Tool Changer, 4th Axis Control and Programmable Rotary Table, Coolant System
Electrics:
240 Volt, 3 Phase
Manufacturer: Fadal Model: VMC 4020 HT Year: 2005 Serial Number: 012005077958
Main Unit Approx Weight: 10500.00 lbs
Main Unit Dimensions (in inches): Length: 124.00" Width: 96.00" Height: 108.00"
Specs:

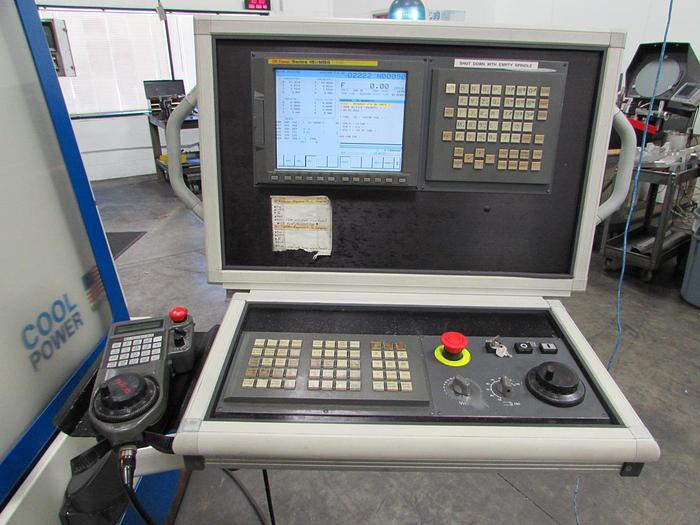

Machine Control: Fanuc 18i-MB5 CNC Control
Table Size: 48" x 20"
Machine Travels (X/Y/Z): 40" x 20"x 20"
Table Capacity: 3000 lbs
Spindle Taper: Cat 40
Spindle Speeds: 10 - 10,000 RPM
Transmission: High-Torque
Rapid Traverse Rate (X/Y/Z): 900 ipm
Maximum Cutting Feed Rate: 400 ipm
Tool Changer Style: Side Mount Twin Arm
Tool Changer Capacity: 24
Spindle Drive: 15 HP Vector Drive
Power Requirement: 220 Volt 3 Phase
Spindle To Table Distance: 4" - 24"
Specifications
Manufacturer | Fadal |
Model | VMC 4020HT |
Year | 2005 |
Condition | Used |
