2006 FADAL VMC 4020HT with Sidemount Toolchanger - Video
No longer available
2006 FADAL VMC 4020HT with Sidemount Toolchanger - Video
Livonia, MI
Description

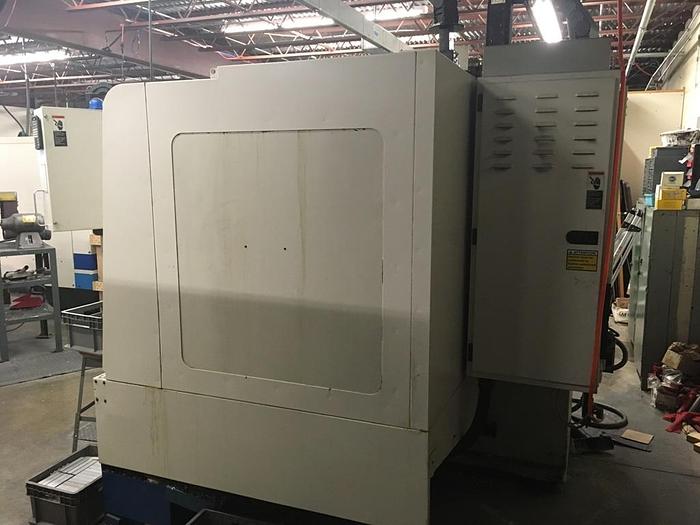

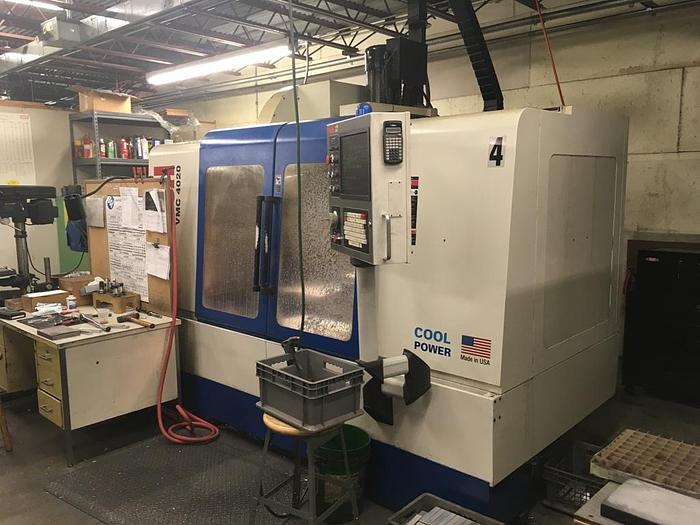

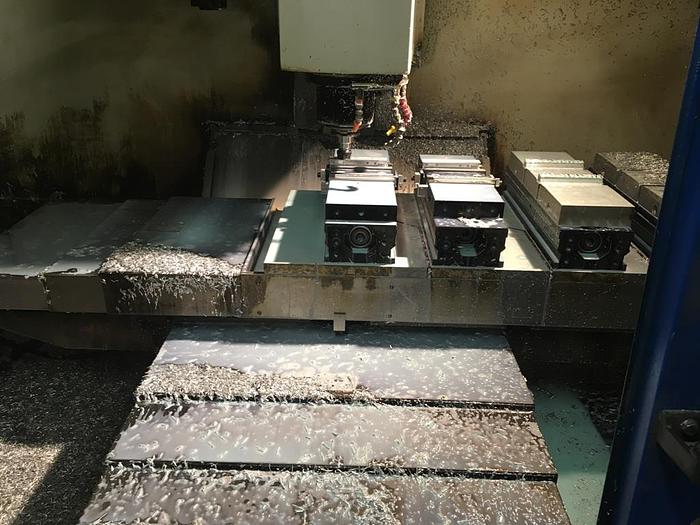

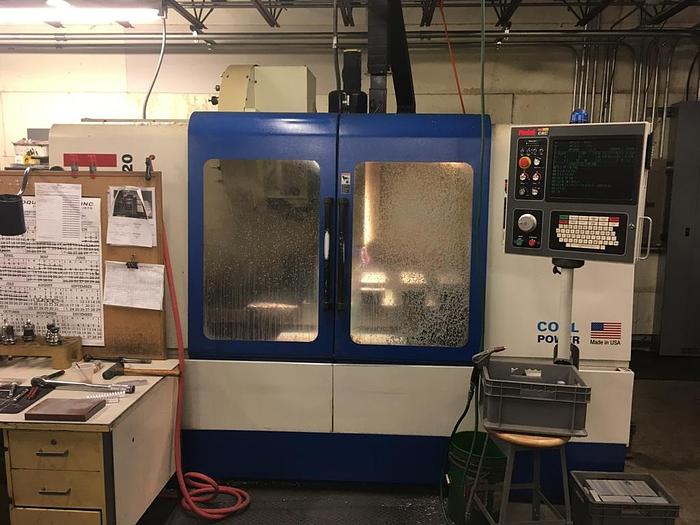

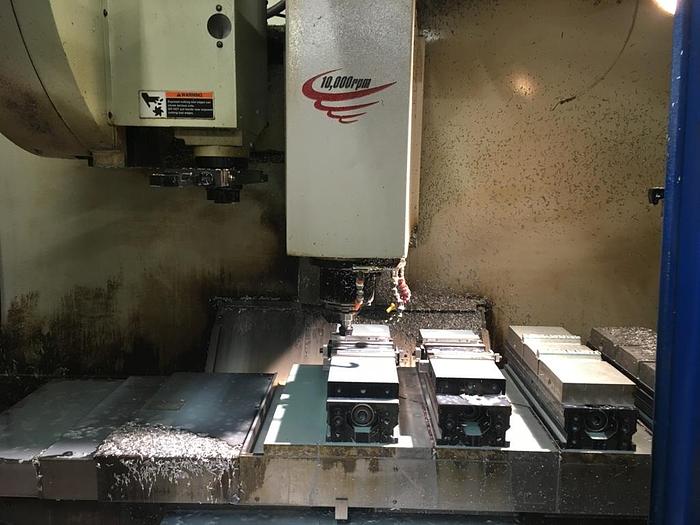

2006 Fadal VMC 4020HT CNC vertical Machining Center with Fadal Control, Sidemount Toolchanger and chip conveyor.
Good Condition. Under power and ready for inspection.
Specifications:
Machine Control: Fadal CNC Control
Table Size: 48" x 10"
Machine Travels (X/Y/Z): 40" x 20"x 20"
Table Capacity: 3000 lbs
Spindle Taper: Cat 40
Spindle Speeds: 10 - 10,000 RPM
Transmission: High-Torque
Rapid Traverse Rate (X/Y/Z): 900 ipm
Maximum Cutting Feed Rate: 400 ipm
Tool Changer Style: Side Mount Twin Arm
Tool Changer Capacity: 24
Spindle Drive: 15 HP Vector Drive
Power Requirement: 220 Volt 3 Phase
Spindle To Table Distance: 4" - 24"
Tool Changer Capacity: 24
Rigid Tapping
Fourth Axis Drive
Additional Motor for Flush Coolant To The Chip Conveyer
Chip Conveyer
Coolant Tank
Dimensions : Length: 124.00" Width: 96.00" Height: 108.00"
Weight: 10500.00 lbs
240 Volt, 3 Phase
Specifications
Manufacturer | Fadal |
Model | VMC 4020HT |
Year | 2006 |
Condition | Used |
