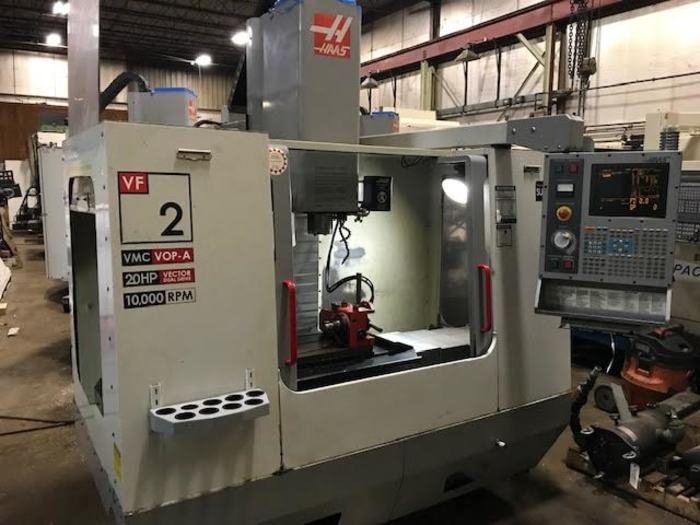

HAAS VF-2D Vertical 3-Axis CNC Machining Center 2002

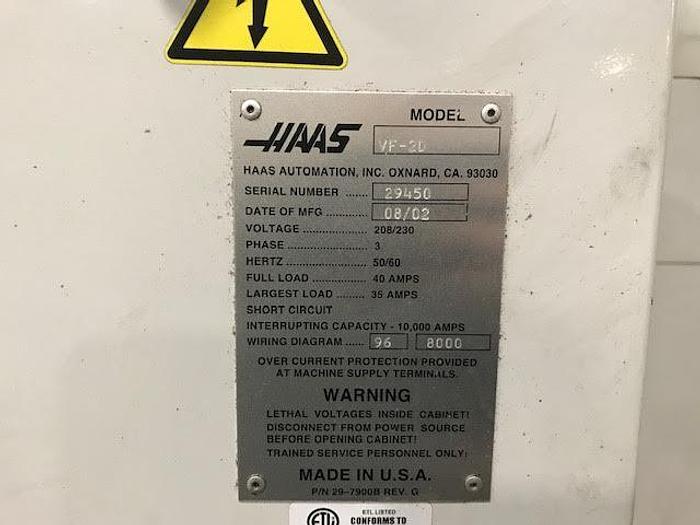

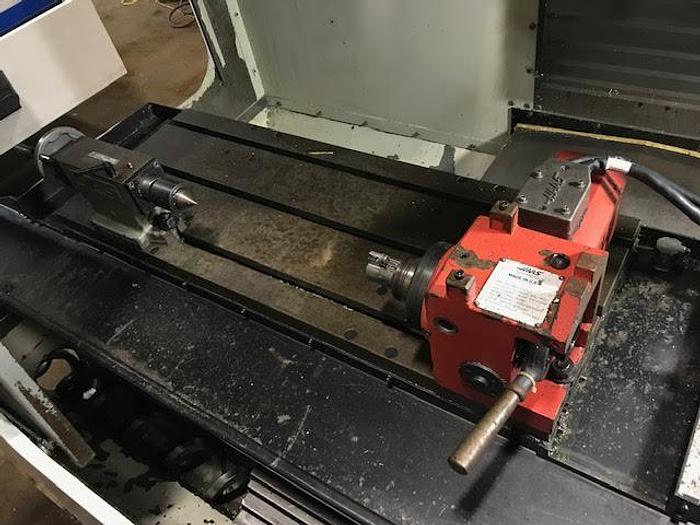

S/N 29450 X-Axis: 30" Y-Axis: 16" Z-Axis: 20" Spindle nose to table: 4" - 24" Size: 36" L x 14" W T-slot center distance: 4.92" Standard t-slots (3): 5/8" W Table load: 3,500 lbs (maximum) Rating: 20 hp (maximum) Speed: 10,000 rpm (maximum) Torque: 75 ft-lb @ 1400 rpm (maximum) Drive system: inline direct-drive Taper: cat-40 Bearing lubrication: air/oil injection Cooling: liquid cooled Rapids on X/Y/Z: 1000 in/min Maximum cutting: 650 in/min Maximum thrust X & Y: 2,550 lb Maximum thrust Z: 4,200 lb Capacity: (20) Tool Diameter (full): 3.5" (maximum) Tool Weight: 12 lb (maximum) Tool-to-tool: 4.2 sec (average) Chip-to-chip: 4.5 sec (average) Accuracy (1 axis): Positioning (±: 0.0002" Repeatability (±): 0.0001" Motor: 20 hp/ 208/230 v/ 3 ph Air required: 4 scfm, 100 psi Coolant capacity: 55 gallons 20 pocket tool changer Brushless Servos 2 Speed Geared Head Rigid Tapping Chip auger 3.5" Floppy Drive 1 MB Memory 4-Axis Ready 4th axis drive Haas indexer Programmable coolant
