1995 MIYANO BNC-42A

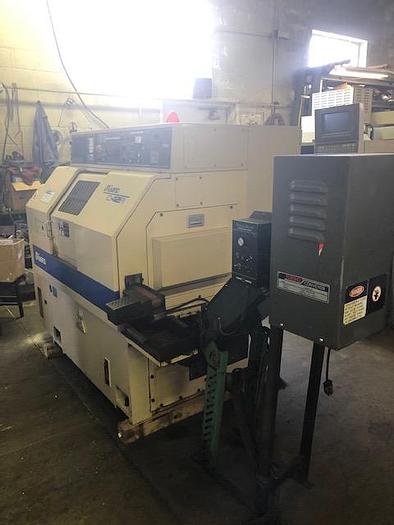

Miyano BNC-42A CNC Lathe -2 axes- with Tailstock.

Fanuc 0-TC, mid 90's serial  bn3226ab2

Iamca 12' magazine style bar feed,

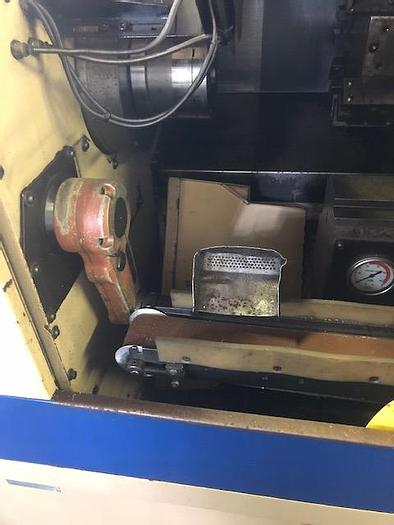

S-16 Collet system, 5C collet, Tool holders, 1.625 bar capacity, part catcher, and parts conveyer

Max. work diameter (D) SP1 42 mm Dia.

Max. work length (L)       175mm

Main Spindle speed (min-1)         SP1 60-6,000

Motors Spindle drive  10 h.p. total h..16.5

Machine Floor space       W 2,272 * D 1,270 mm with out 12' bar feed

Machine weight                6000 lb

230  3phase 60hz.

Chip conveyer
