1999 Mori Seiki ZL-200SMC

Contact us for price

Livonia, MI

orCall 732-367-4130

Description

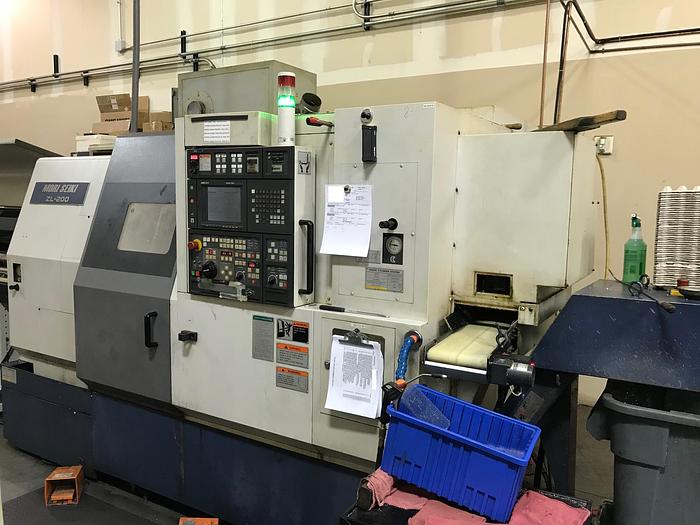

MORI SEIKI ZL-200SMC DUAL TURRET CNC TURNING CENTER
With LIVE TOOLING and SUB-SPINDLE
Model ZL-200SMC, New 1999 S/N# 74
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed..................................... 26.7"
Max Swing Over Cross Slide............................. 20.0"
Maximum Turning Diameter............................... 16.6"
Maximum Turning Length................................. 20.87"
Standard Chuck Size.................................... 8"
Cross Travel Turret 1 (X1-Axis)........................ 9.3"
Longitudinal Travel Turret 1 (Z1-Axis)................. 20.5"
Cross Travel Turret 2 (X2-Axis)........................ 6.9"
Longitudinal Travel Turret 2 (Z2-Axis)................. 19.3"
Rapid Traverse Rate (X1, X2 Axes)...................... 709 IPM
Rapid Traverse Rate (Z1, Z2 Axes)...................... 9450 IPM
Number of Turrets...................................... 2
Tool Positions Turret 1................................ 12
Tool Positions Turret 2................................ 8
Spindle Bore........................................... 3"
Spindle Nose........................................... A2-6
Spindle Speed Range.................................... 40-4000 RPM
Spindle Horsepower..................................... 15 HP
Approximate Machine Dimensions......................... 158" x 85"
Approximate Machine Height............................. 80"
Approximate Machine Weight............................. 12,840 LBS

EQUIPPED WITH:
Mori Seiki MSC501 Fanuc CNC Control, Twin Turrets With Live Tooling, Sub
Spindle
8" chuck for main spindle
6" chuck for sub spindle
2 pcs Z axis live tools
1 pcs X axis live tools
An assortment of turret tool blocks
Tool presetters front and back
Parts conveyor w side parts catcher to the right side of the control
Chip conveyor and original chip tray.
Standard coolant pump
All books and manuals

Specifications

ManufacturerMori Seiki
ModelZL-200SMC
Year1999
ConditionUsed
