2016 Haas EC-1600ZT
No longer available
2016 Haas EC-1600ZT
Livonia, MI
Description

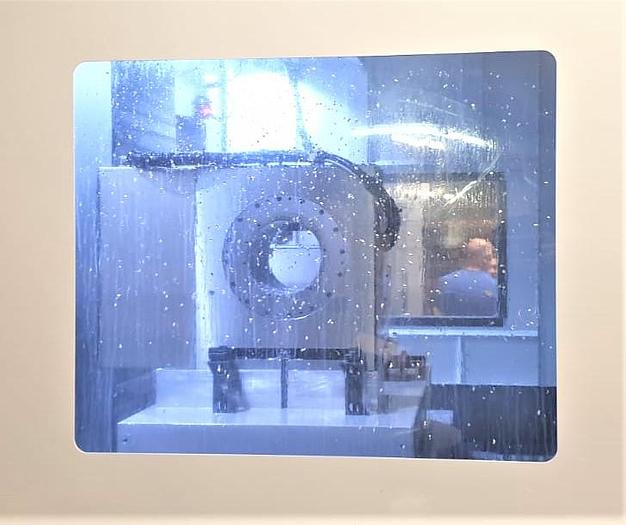

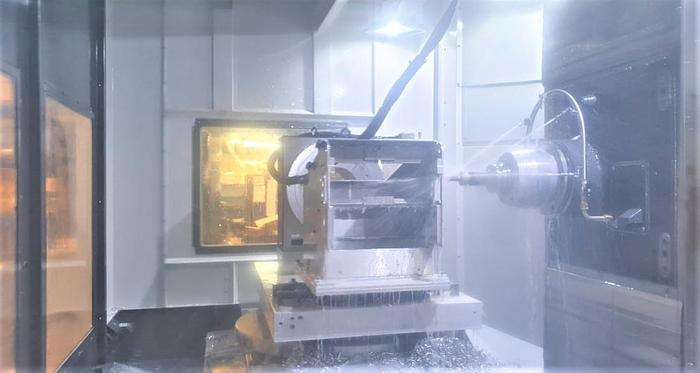

HAAS EC-1600ZT CNC 4-AXIS HORIZONTAL MACHINING CENTER WITH EXTENDED Z TRAVEL
Manufacturer: Haas
Model: EC-1600ZT
Year: 2016
________________________________________
Travels:
X-Axis 64"
Y-Axis 50"
Z-Axis 40"
Table:
Length 64"
Width 36"
T-Slot width 5/8"
T-Slot center distance 4.92"
Max. weight on table (evenly distributed) 10,000 lb
Spindle:
Max. Rating 30 HP
Max. Speed 10,000 RPM
Max. Torque 450 ft-lb @5,000 RPM
Drive system 2-speed geared head
Taper BT50
4th Axis (OPT):
Max. Rating 5.0 HP
Table 64"x32"
Platter diameter 30"
Max. weight on platter 10,000 lb
Rotational torque (continuous) 2000 ft-lb
Backlash 30 arc-sec
Gear ratio 500:1
Brake torque 4000 ft-lb
Min resolution 5 deg
Feedrates:
Rapids on X,Y & Z 540 in/min
Max. cutting 500 in/min
Axis Motors:
Max. Thrust X & Y 5600 lb
Max. Thrust Z 7500 lb

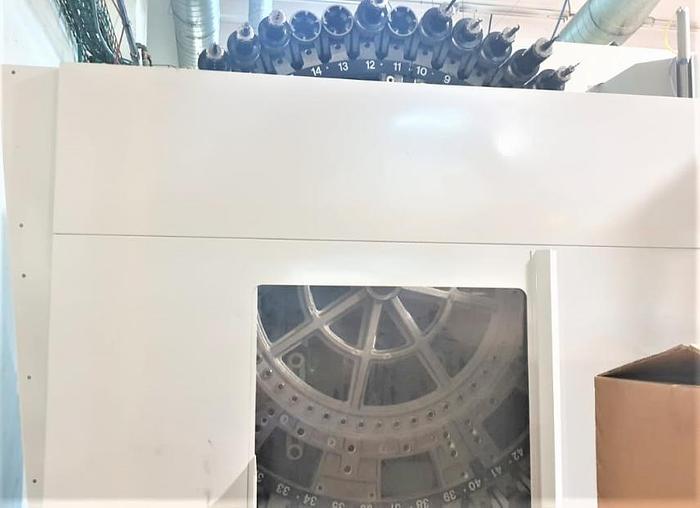

Tool Changer:
Type SMTC
Capacity 50+1
Max Tool Diameter (adjacent empty) 10"
Max Tool Diameter (full) 4"
Max Tool Diameter (from gage line) 20"
Max Tool Weight 30 lb
Tool-to-Tool (avg) 10.3 sec
Chip-to-Chip (avg) 12.6 sec
General:
Air required 9 scfm, 100 psi
Coolant capacity 95 gal
Equipped With
50 Taper Spindle, Full Enclosure
Thur Spindle Coolant High Pressure 300 PSI
4th Axis Rotary Table, 5th axis ready
50 ATC Side Mount
Remote Job Handle, Rigid Tapping
wips intuitive probe renishaw
(2) Chip Auguers
High speed machining
5th axis rotary table
Note: New Price $340,000.00
Specifications
Manufacturer | Haas |
Model | EC-1600ZT |
Year | 2016 |
Condition | Used |
