2006 Makino A71
No longer available
2006 Makino A71
Livonia, MI
Description

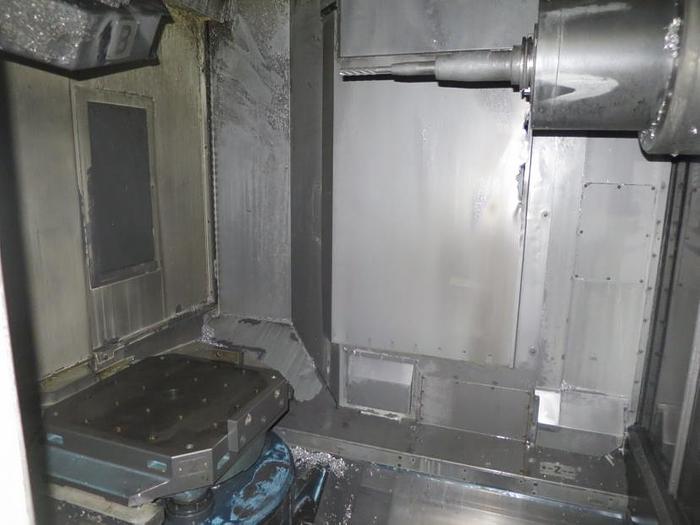

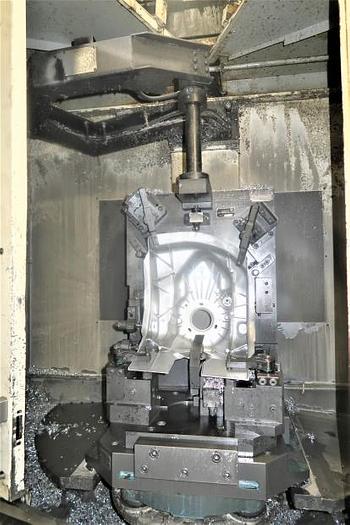

Makino A71 HMC 20"x20" Pallets, 28.7" X, 28.7"Y, 31.5"Z, 10,000 RPM, 50 Taper, 30 Kw, 60 ATC, Full 4th Axis, Coolant Thru, Pro 5 Fanuc CNC, New 2006
Specifications
Pallet 19.7" x 19.7"
X Axis 28.7"
Y Axis 28.7"
Z Axis 31.5"
2 Speed Range Spindle 10,000 RPM
Rapid Traverse 1,968 in/min
Max. Work Piece 31.5" x 39.4"
Max. Payload 1,540 Lbs.
ATC Capacity 60
Spindle Taper 50
Tool to Tool 1.7 Seconds
Chip to Chip 3.2 Seconds
Max. Tool Length 17.72"
Max. Tool Diameter 11.81"
Max. Tool Weight 44 Lbs.
MOTOR SPECIFICATIONS:
Main Spindle Motor 30Kw
Equipped With

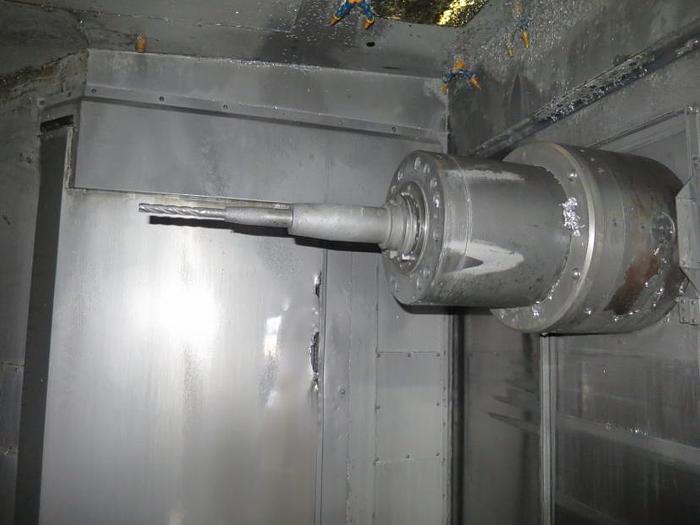

High Power 10,000 RPM Spindle
Shank
CAT 50 Spindle Interface
Retention stud
MAS1 Retention Stud
Table

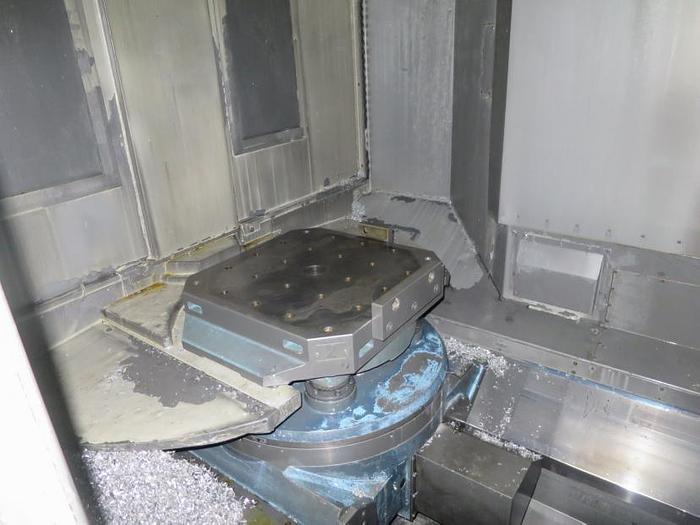

NC Rotary Table
ATC
60-tool ATC
P/C Cover w/ Door Intlck
Random Pallet Selection
Pallet Clamp Confirm Function
Payload 700Kg
Pallet
500mm Tapped Hole Pallets
300mm Table Cone Pitch Spec
Coolant
Eight (8) Nozzle Coolant

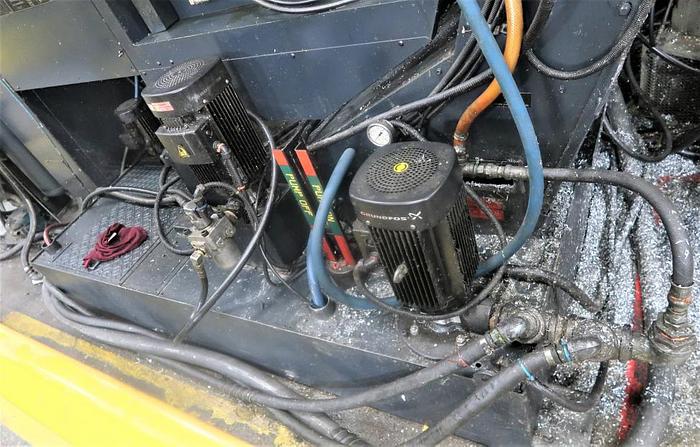

Overhead Shower Coolant System
300 psi TSC and Air
Water Soluble Coolant
Lift-up Chip Conveyor
Automatic Splash Guard
Splash Guard Door Interlock
Air/hydraulic pressure
Air Dryer
Daikin Auto Lubrication Unit
Others
Signal Light 3-layer
Manual
FANUC English Manual
English Installation Manual
Instruction Manual (Pro5)
Maint Man Troubleshoot (Pro5)
Maint Man Adjust/Replace Pro5
Overseas specification
Unit: Inch
English Specification
English Display
Packing/Lifting fixture/Anchor
Export Packing
Standard Specification
Auto Spdl lub temp contl
GI Control
20 Hr Dry Cycle Test Run (std)
Controller Type

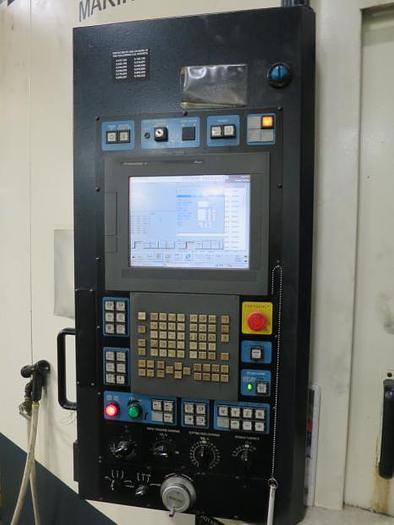

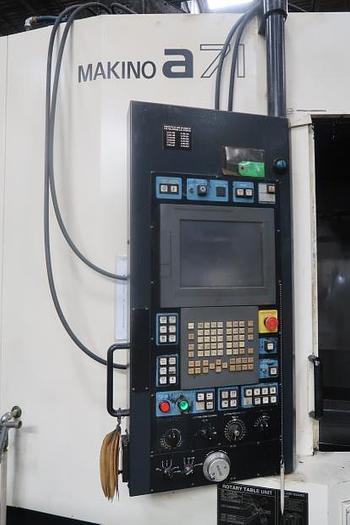

Professional 5 Control
Frequency
08/02/2006 Report on a Project's Components and Configuration 2
60Hz
Voltage 460V
Electric regulation UL Electrical Specification
Programming method Inch/Metric Selection
Part program storage & editing Part prog to 1050 ft (320m)
Registered Program Number: 63
I/O device
Data Center (standard)
Tool compensation
Tool Offsets Pairs (Total): 99
Tool Offset Memory Type A
Programming support function
Custom Macro common var 100
Specifications
Manufacturer | Makino |
Model | A71 |
Year | 2006 |
Condition | Used |
