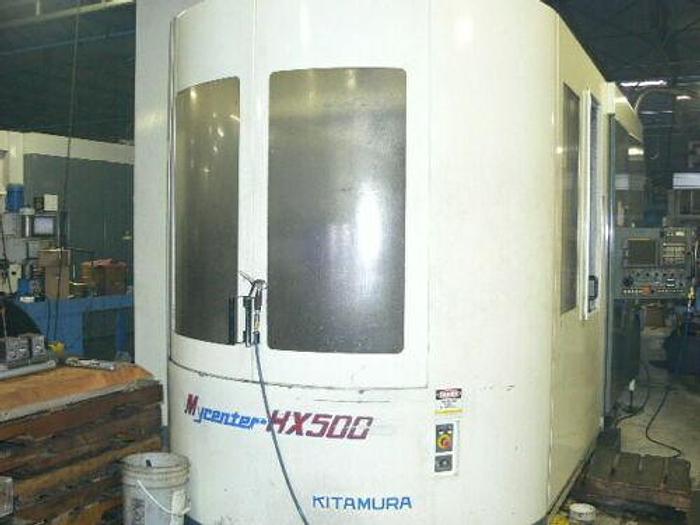

2000 Kitamura Mycenter-HX500i

Contact us for price

Livonia, MI

orCall 732-367-4130

Description

2000 Kitamura Mycenter-HX500i Horizontal Machining Center Fanuc 16iMB CNC Control

All Box Ways
• 19.7” x 19.7” pallet Tops
• Full 4th Axis table
• Large Capacity 31.5” Diameter x 43.5” Tall Workpiece
• CT 50 Taper-50 Tool ATC
• 1969 Rapids Z & Y Axes
• Double Decker Drum Style Chip Conveyor
• Heavy 44,440 Lbs Machine Weight

• IAC System 1 (Intelligent Advanced Control)
• Double Decker Style Chip Conveyor and Filtration System
• Full 4th Axis Rotary Table
• Coolant Thru the Spindle (220psi)
• AI Nano High Precision Contour Control
60m/min Feed with 1mm/block, 1,000 blocks/sec.
500 Block Look Ahead
Acceleration Setting for Individual Axis
Multi-Buffer, 200 Blocks
16 Million Pulse Encoder Feedback System (AI Nano HPCC Required)
• Data Server Upgrade (16mb)
Max. 38,000 byte/second (From Data Server to CNC)
• RISC-64 Bit Processor with NURBS Interpolation (G06.2)

TABLE Size 19.7 x 19.7

Tap Hole Size by Quantity M16 x 2.0 x 25

Table Indexing 0.001 Degree (4th Axis)

Maximum Table Load 1,760 Lbs.

Max. Workpiece Dia. 31.5

Max. Workpiece Height 43.5

TRAVELS X-Axis Travel 34.3

Y-Axis Travel 28.0

Z -Axis Travel 26.0

B-Axis Travel 0.000 Deg to 360.000 deg.

Distance from Table Top to

Spindle Center 2.00 to 30.0

Distance from Table Center

To Spindle Nose 5.9 to 31.9

B Axis Clamping Torque 2385 ft_lb.

SPINDLE Spindle Taper 50 NST

Spindle Speed 35 to 12,000 min 1 (Standard)

Spindle Max Torque 280.3 ft-lb.

Spindle Accel Time 2.2 Seconds (0-10,000 min-1)

Drive Method Gear Drive 2-Step

FEED Rapid Feed X,Y,Z 1969 ipm

Cutting Feed Rates 1969 ipm

Rapid Feed (B Axis) 8000 deg./min (22.2 min 1)

APC Number of Pallets 2

APC Time 5.8 sec.

Pallet Clamp Force 15,421 lbs.

APC Drive System Servo Motor Driven

ATC Tool Storage Capacity 50 Tools

Tool Selection Method Fixed Pot

Tool Holder Style CT (BT) 50

Max. Tool Diameter 4.9 (7.9)

Max. Tool Length 17.7

Max. Tool Weight 44 Lbs.

Tool to Tool 1.5 Sec.

Chip to Chip 5.5 Sec., Minimum

Magazine Drive Servo Motor Driven

Magazine Index Time 4.8 Seconds (25 Pots)

MOTORS Spindle Motor 35 Hp (26.0kw) AC/30 min.

30 Hp (22.0kw) AC/Cont.

Tool Change Motor 1 Hp

Coolant Motor 1.61 Hp

Lubrication Motor 0.027 Hp

UTILITIES Power Requirement 55 KVA, 200 v AC, 3 Phase

Air Requirement 90 psi, 15 cfm

FLOOR SPACE Required Space W x D 122.6 x 191.9

MACHINE WEIGHT Machine Net Weight 44,440 Lbs.

CONTROL Kitamura-Fanuc 16iMB Spec. Ver. 16iMB-013

Specifications

ManufacturerKitamura
ModelMycenter-HX500i
Year2000
ConditionUsed
