1990 MORI SEIKI SL-25MC
No longer available
1990 MORI SEIKI SL-25MC
Livonia, MI
Description

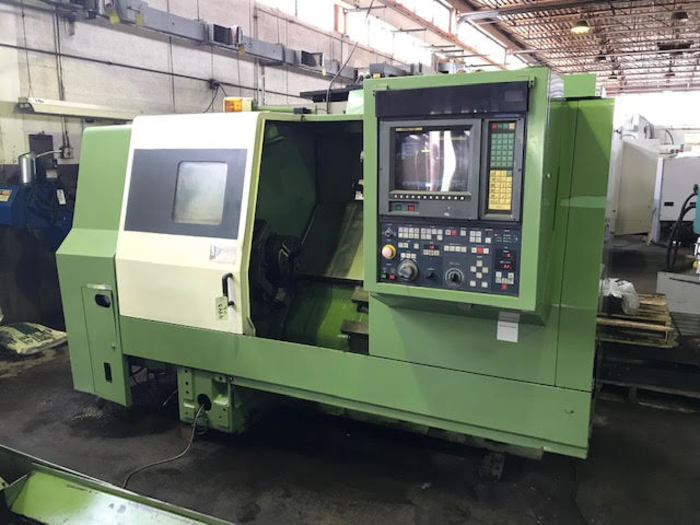

MORI SEIKI SL-25MC CNC TURN MILL CENTER

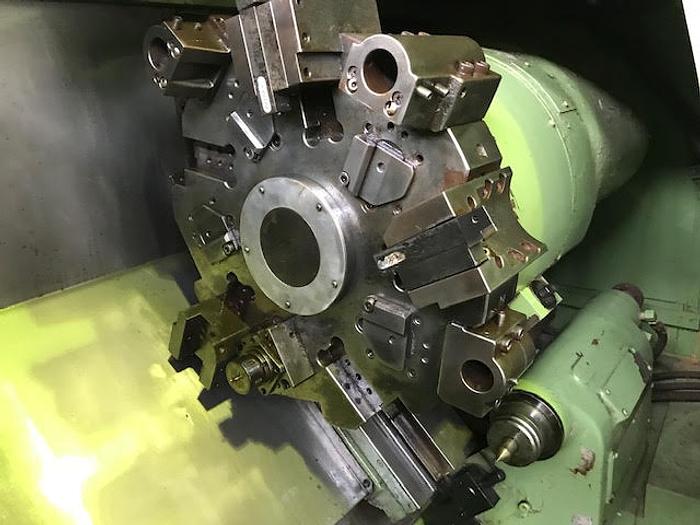

12-Station Turret with Live Tools/ Milling
Box Ways Design

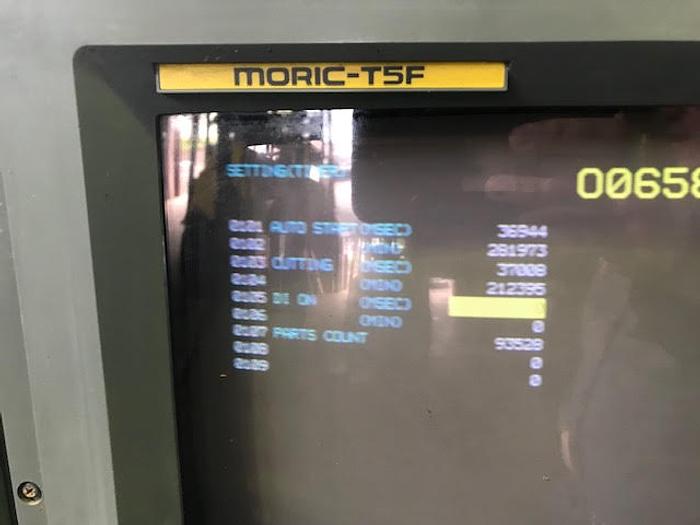

Fanuc 15Tf CNC Control

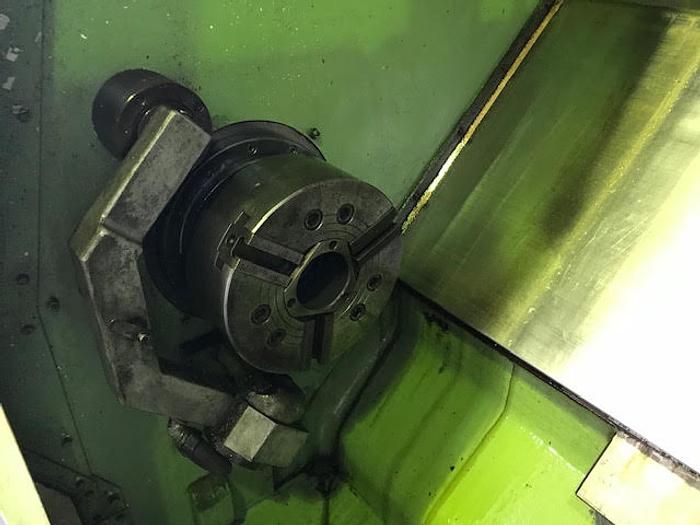

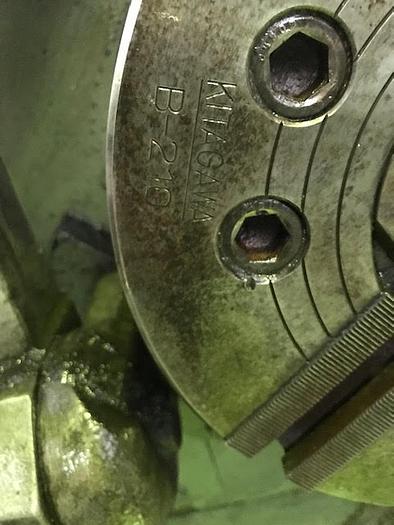

10″ 3-Jaw Kitagawa Hydraulic Chuck
2 Step gear spindle for powerful torque
Hydraulic Programmable Tailstock
Tool Setter

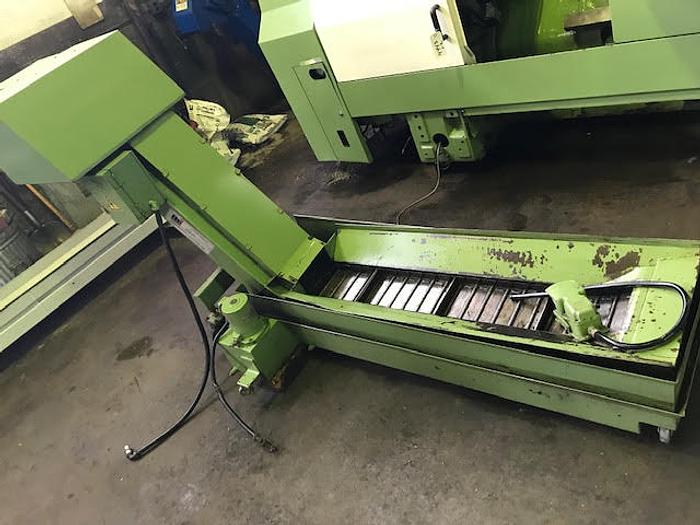

Turbo Chip Conveyor
Coolant System.
Automatic Lubrication system
Foot Operated Control for Chuck
Coolant Tank
Tool Holders, 1 Live Tool
MORI SEIKI SL-25MC Specifications:
Max Turning Diameter: 13.4″
Max Turning Length: 20.9″
Max Bar Capacity: 2.5″
Swing Over Cross Slide: 13.8″
Swing Over Bed: 20.5″
Distance Between Centers: 24.6″
X Axis Travel: 11.3″
Z Axis Travel: 43.33″
Rapid Traverse X Axis: 790 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-6
Spindle Bore: 3.1″
Spindle Speed: 35 – 3500 RPM
Spindle Motor: 20 HP
Live Tooling Motor: 5/3 HP
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Tailstock Quill Dia.: 4.33″
Tailstock Quill Stroke: 3.93″
Tailstock Taper: MT-5
General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 32kva
Overall Dimensions: 110″ x 68″ x 80″ High
Overall Dimensions: 150″ x 68″ x 80″ High with Chip Conveyor
Weight : 13000 lbs Approx.
Specifications
Manufacturer | MORI SEIKI |
Model | SL-25MC |
Year | 1990 |
Condition | Used |
