1975 NOMURA B85SR

1975 NOMURA B85SR

Contact us for price

Illinois

Contact Us

orCall 732-367-4130

Description

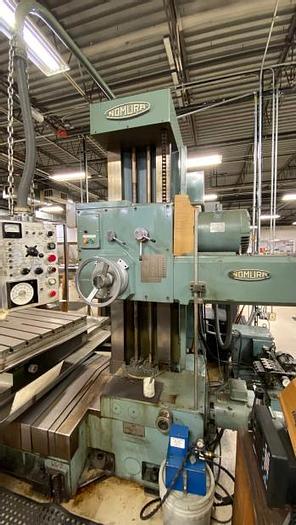

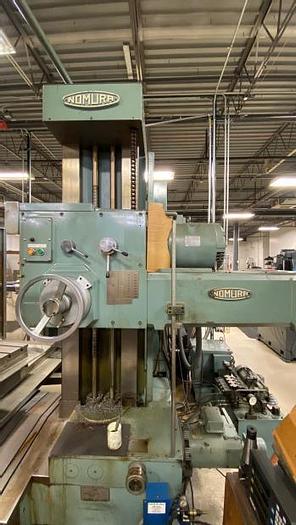

3.35" NOMURA TABLE TYPE HORIZONTAL BORING MILL - NOMURA B85SR



Specifications

Spindle Size 3.35

X-Horiz Tvl of Table 40.0

Y-Vert Tvl of Head 40.0

Power 15.0

RPM 1200.0

SPINDLE DIAMETER ------------------------------ 3.35"

TAPER IN SPINDLE -------------------------------- #50

SPINDLE OUT TRAVEL ----------------------------- 20"

TABLE WORKING SURFACE ------------------------ 35.4" X 39.4" ( POWERED ROTARY TABLE )

CROSS TRAVEL OF TABLE -------------------------- 40"

LONGITUDINAL TRAVEL OF TABLE ----------------- 24"

VERTICAL HEAD TRAVEL ---------------------------- 40"

RAPID TRAVERSE

SPINDLE SPEEDS --- 21 TO 1200 RPM

MAIN DRIVE MOTOR --------------------------------- 11 KW, 10 HP A.C.

APPROXIMATE MACHINE WEIGHT ------------------ 19,800 LBS

APPROXIMATE MACHINE DIMENSIONS ------------ 141"(LR) X 99"(FB) X 116"(H)



Equipped With

POWERED ROTARY TABLE 39" X 35.24"

POWER DRAW BAR WITH #50 TAPER

STEEL WAY COVERS

PENDANT CONTROL


Specifications

ManufacturerNOMURA
ModelB85SR
Year1975
ConditionUsed
