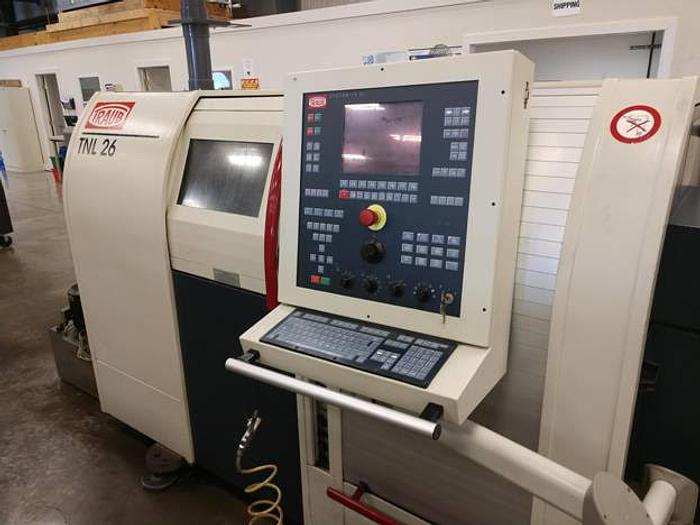

2001 TRAUB TNL-26 CNC SWISS TURN LATHE / TURN CENTER w/ LIVE TOOLING
No longer available
2001 TRAUB TNL-26 CNC SWISS TURN LATHE / TURN CENTER w/ LIVE TOOLING
Livonia, MI
Description
2001 TRAUB TNL-26 CNC SWISS TURN LATHE / TURN CENTER w/ LIVE TOOLING
Specification Description
Max Diameter Bar Capacity 1.26"
Max Machining Length 9.842"
Main Spindle Motor 15 / 10 HP
Main Spindle Speed 8000 RPM
Main Spindle Index .001 Degrees
Number of Tools 34
Turrets (2) 12 Station
Front Working Tools Live 5 / 5
Backworking Tools Live 5 / 5
Tool Drive Unit Motor 7.5 / 3 HP
Tool Drive Unit Speed 6000 RPM
Sub Spindle Turning Dia 1.26"
Sub Spindle Turning Length 5.512"
Sub Spindle Index .001 Degrees
X-Axis Travel 1.97"
Y-Axis Travel 0.787" / + 0.787"
Z-Axis Index 8.86"
Machine Dimensions (L x W x H) 145.9" x 50.8" x 64.2"
Equipped With:
TRAUB TX8I CNC CONTROL
LNS BAR LOADER
CHIP CONVEYOR
PARTS CATCHER
RIGID TAPPING
LIVE TOOLING
300 MB MEMORY
RS 232 PORT
FLOPPY DISK DRIVE
Tooling
ALL AVAILABLE MANUALS
Specifications
| Manufacturer | TRAUB |
| Model | TNL-26 |
| Year | 2001 |
| Condition | Used |
