1997 MORI SEIKI DL150y

Contact us for price

Livonia, MI

orCall 732-367-4130

Description

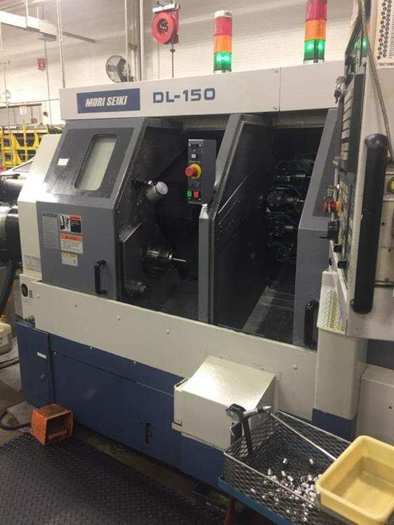

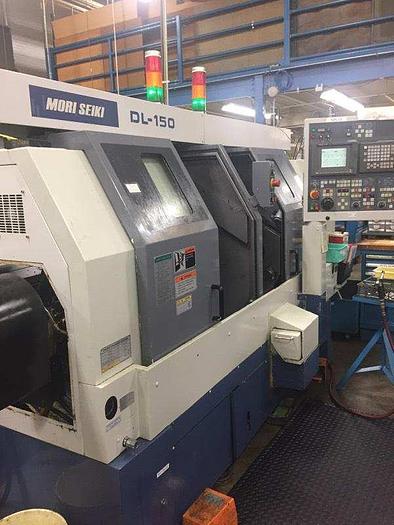

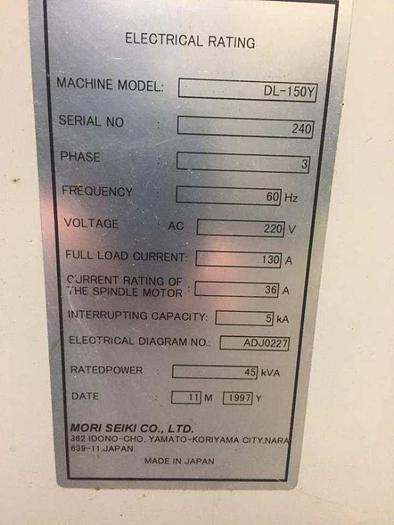

Mori Seiki DL150y 6-Axis Opposed Spindle Turning and Milling Center mfg 11\97 delivered 1998 serial no 240


Specification Description
Max. Swing over bed 11"
Maximum Turning Diameter (each Spindle) 7.8"
Maximum Turning Length (each Spindle) 7.8"
Standard Chuck Size 6"
Cross Travel Turret 1 (X1-Axis) 9.3"
Longitudinal Travel Turret 1 (Z1-Axis) 9.8"
Cross Travel Turret (X2-Axis) 9.3"
Longitudinal Travel Turret 2 (Z2-Axis) 9.8"
Headstock 2 Travel (W1-Axis) 30.9"
Rapid Traverse Rate (X1, X2 Axes) 709 IPM
Rapid Traverse Rate (Z1-Axis) 945 IPM
Rapid Traverse Rate (Z2-Axis) 1181 IPM
Number of Turrets 2
Tool Positions 12 each turret
Bar Capacity 1.75"
Spindle Nose A2-5
Spindle Speed Range 30-5000 RPM
Spindle Horsepower 10 HP
Approximate Machine Dimensions 126" x 77" x 70"H
Approximate Machine Weight 12,320 lbs

Equipped With:

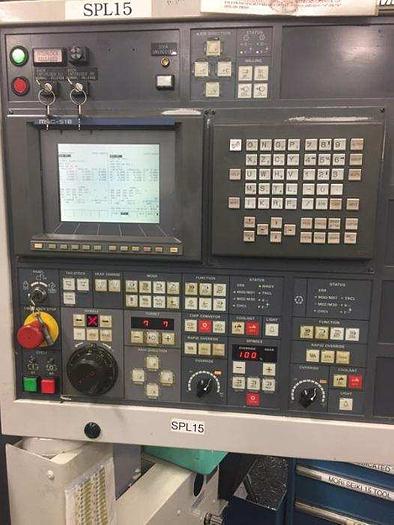

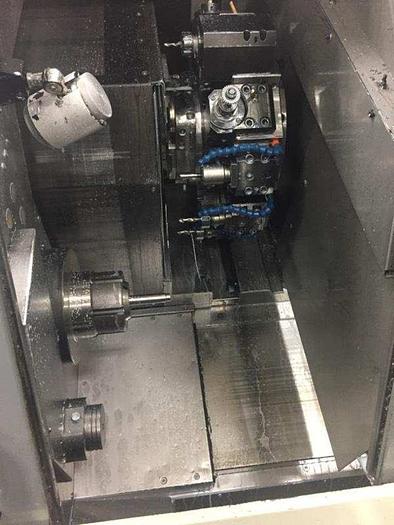

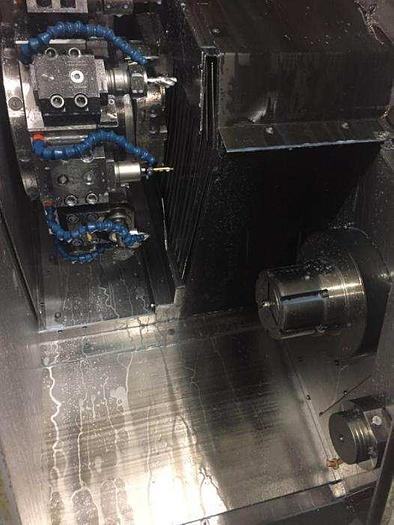

Mori MSC518 CNC control. (2) 10 HP opposed spindles. (2) 12 position turrets. Live milling both turrets ,y axis Misc. Tool Holders, , Twin Work Lights, Coolant System, Collet Chuck Parts catcher

Specifications

ManufacturerMORI SEIKI
ModelDL150y
Year1997
ConditionUsed
