2003 MORI SEIKI ZT2500Y

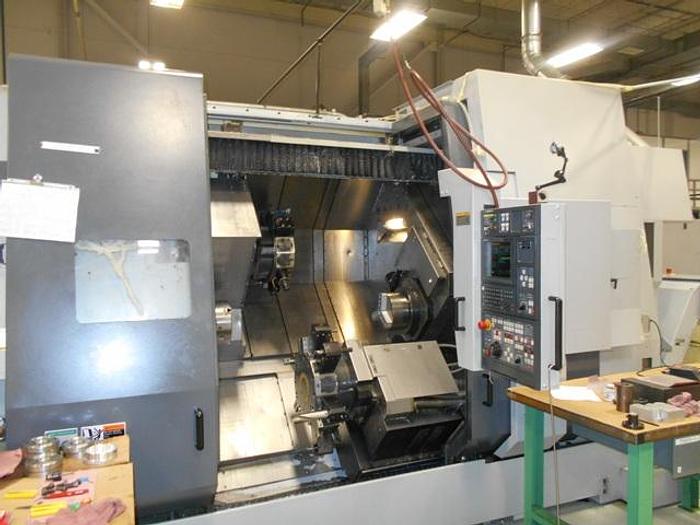

2003 Mori Seiki ZT2500Y CNC Lathe

Control: Fanuc MSX-501

Max. Turning Diameter.................................... 14.9"

X-Axis Travel (No1 / No2)................................ 11" / 7.9"

Z-Axis Travel

Turrets (No1 / No(2)..................................... 37.8" /

38.8"

Y-Axis Stroke............................................ 3.54" (+ or

–)

Rapid Traverse Rate X / Z Axes........................... 945 IPM

Maximum

Turning Length........................................... 51.2"

Turret Positions (1)..................................... 12

Turret Positions (12).................................... 12

Spindle Motors........................................... 30 HP

Spindle Bore............................................. 2.8"

Bar Capacity............................................. 2.5"

Spindle Speeds (Both Spindles)........................... 4,000 RPM

Spindle Nose............................................. JIS A2-8

Approx. Weight........................................... 25,300 lbs

Live Tooling Motors...................................... 3.5 / 6 HP

Live Tooling Speeds (Both)............................... 4,000 RPM

Equipped With:

Fanuc MSX-501 Control

RS232C Port Interface

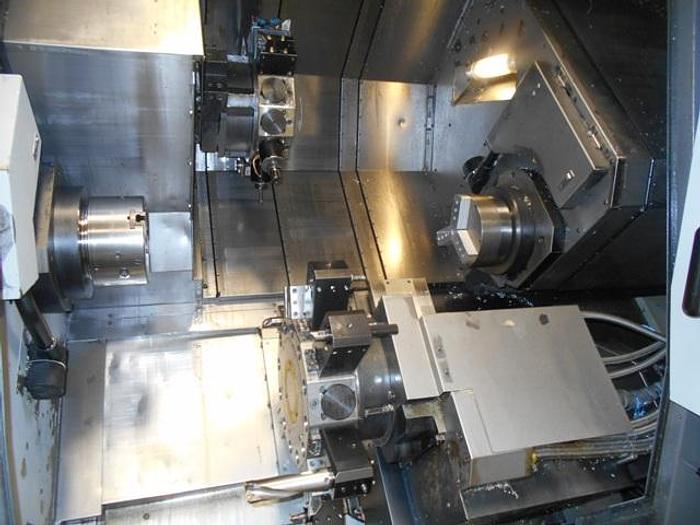

(2) 10" Diameter 3-Jaw Hydraulic Chucks

Chip Conveyor

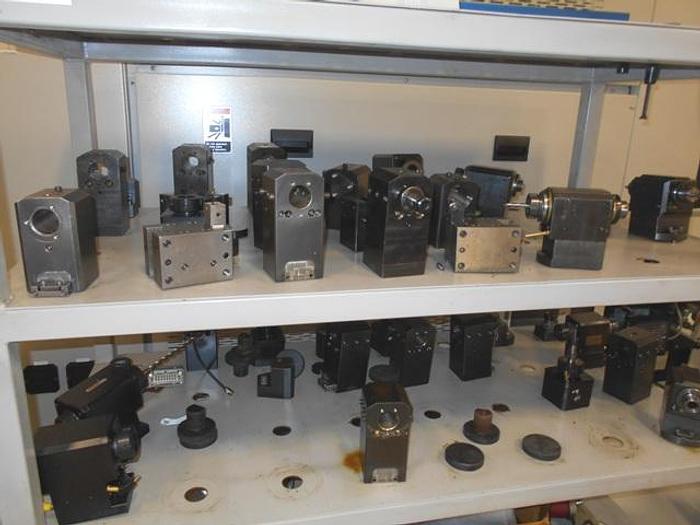

(10) Live Tool Holders

(12) Turning and Boring Holders

Chip Conveyor & Coolant Tank

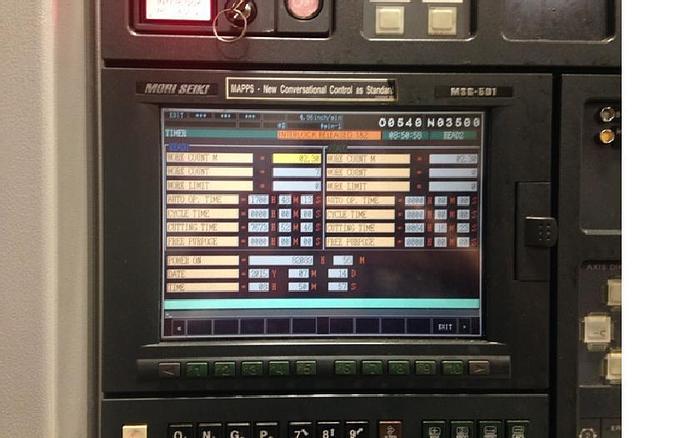

MAPPS Conversational Programming
