1997 Hardinge Conquest T42

1997 Hardinge Conquest T42

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

Description

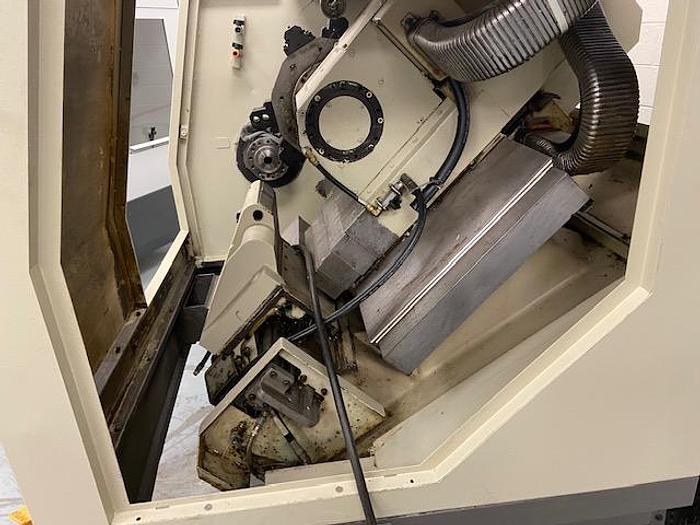

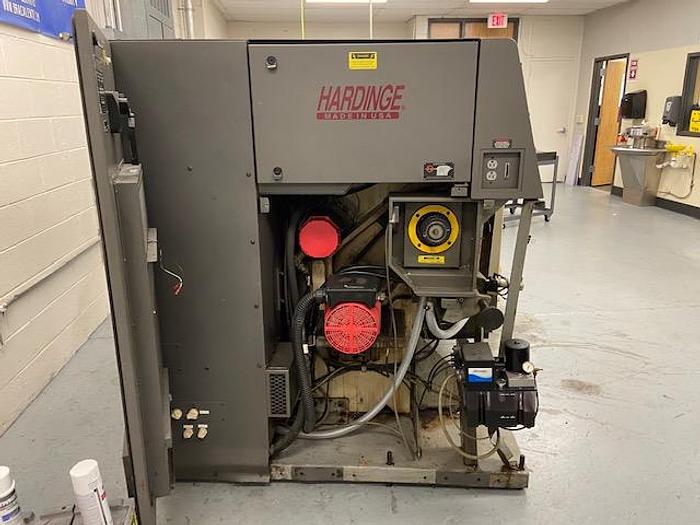

Hardinge SG-42 Conquest T42 CNC Slant Bed Lathe w/ Fanuc Controller 1997





Brand: Hardinge

Model: SG-42 Conquest T42

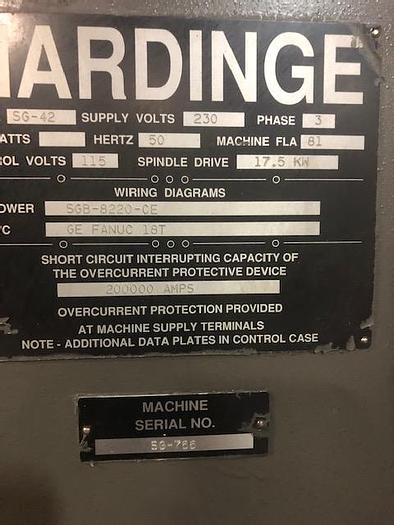

Serial #: SG-766

Approx. Shipping Weight: 10,000 Lbs.

Approx. Shipping Dimensions: 11′ L x 8′ W x 6′ H

Specifications:

Max Swing Over Upper Axis Way Cover: 21.2″

Chuck Size: 6″

Speed Range: 44 to 4400 RPM

Max X-Axis Traverse Rate: 472 IPM

Max Z-Axis Traverse Rate: 630 IPM

Max X-Axis Travel: 5.31″

Max Z-Axis Travel with Collet: 13.9″

Max Z-Axis (Drilling) Thrust: 1500 Lbs.

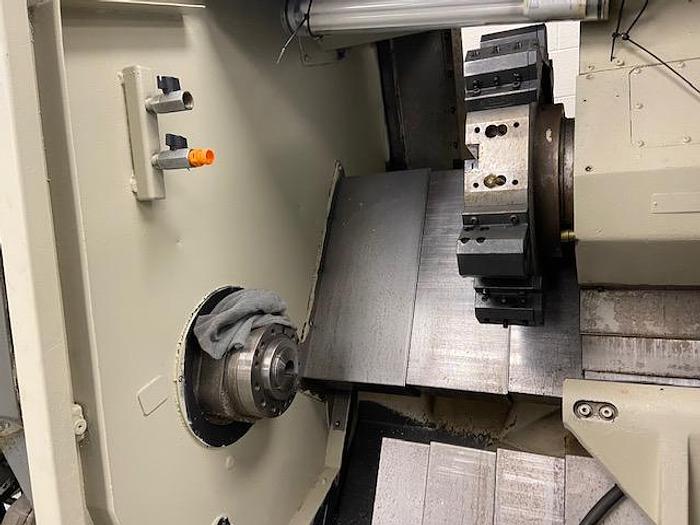

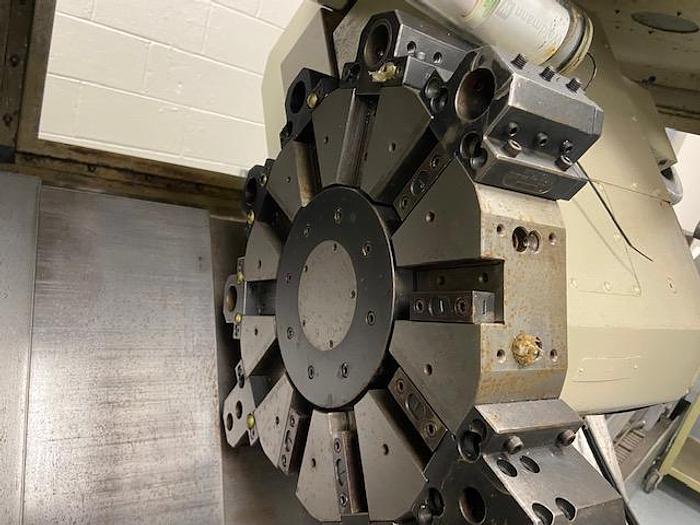

No. of Turret Positions: 12

Max Square Shank Tool Size: 3/4″

Max Round Shank Tool Size: 1-1/4″

Max Distance from Spindle Face to Turret Face: 14″

Max Turning Diameter with Standard Qualified 3/4″ Square Shank Tool (1″ Head): 9.5″

Hole Through Spindle: 1.625″

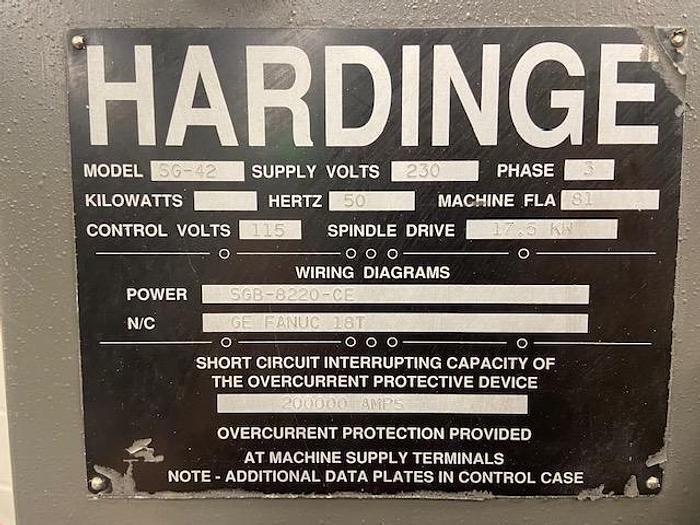

Electrical: 230V/3PH

Equipped With:

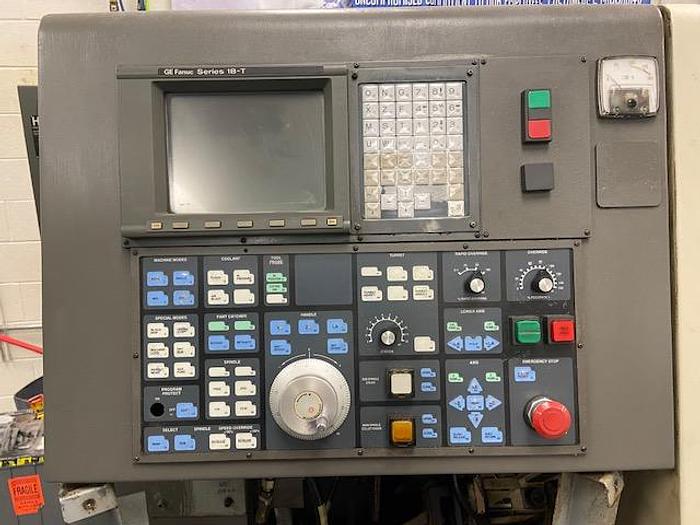

GE Fanuc 18T CNC Control, 12 Position Turret, Turbo Model 6275-8246 Chip Conveyor, Manuals,

Specifications

ManufacturerHardinge
ModelConquest T42
Year1997
ConditionUsed
