2001 HITACHI SEIKI Super HICELL 250 1600

Contact us for price

Livonia, MI

orCall 732-367-4130

Description

HITACHI SEIKI Super HICELL 250 1600 5 AXIS TURNING CENTER 2001

Capacity:
Max Turning Diameter: 19.685″
Max Turning Diameter with Rotating Tool: 15.748″
Max Turning Length: 1600 - 62.992"
Max Bar Capacity Main Spindle: 2.559″
Max Bar Capacity Sub Spindle: 1.65″
Swing Over Bed: 19.68″

X Axis Travel: 23.62″
Z Axis Travel: 63"
Y Axis Travel: 5.90″ (+/-2.95″)
B Axis: 0.001°
C Axis Main & Sub Spindle: .001
Rapid Traverse X & Z Axis: 1181 IPM
Rapid Traverse Y Axis: 590 IPM

Spindle Nose: A2-8
Spindle Bore: 3.07″
Spindle Speed: 0 – 4000 RPM
Spindle Motor: 25/20 HP
Sub Spindle Motor: 10/7.5 HP

Milling Spindle Speed: 80-8000 RPM
Milling Motor: 10/705 HP
Milling Spindle Taper: NT40 Short Taper

Max Tool Diameter: 4″
Max Tool Length: 9.84″
Max Tool Weight: 15lbs

General:
Power: 36 kva, 220v / 3-Phase
Overall Dimensions: 130″ x 76″ x 90″ High
Overall Dimensions: 178″ x 76″ x 90″ High with Chip Conveyor on Right Side
Weight: 17600 lbs

Equipped With:

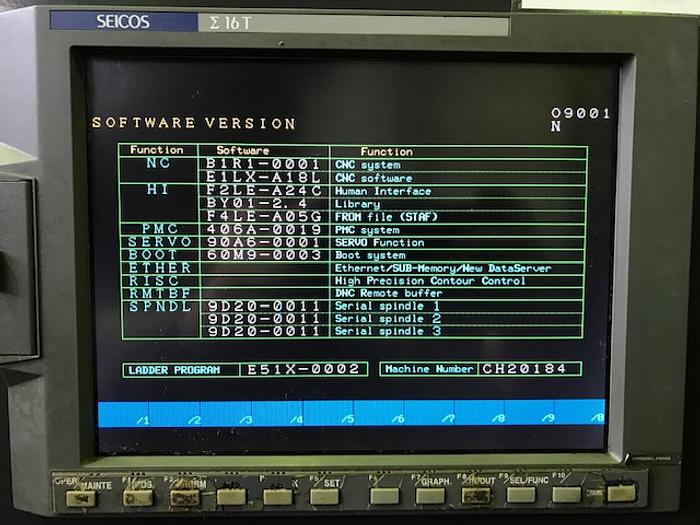

Seicos 16T (Fanuc 16iT) CNC Control
10.4″ Color Display

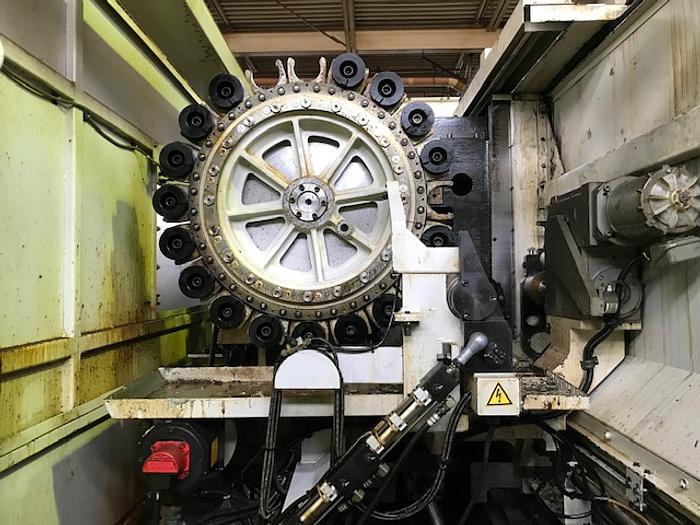

40 Station Tool Magazine
Rigid Tapping

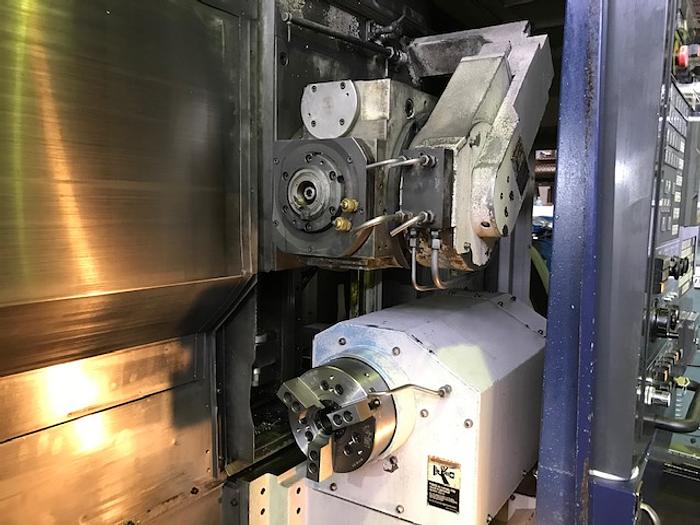

Programmable Main & Sub Spindle with Full C Axis
Built in High Torque Motor on Headstock

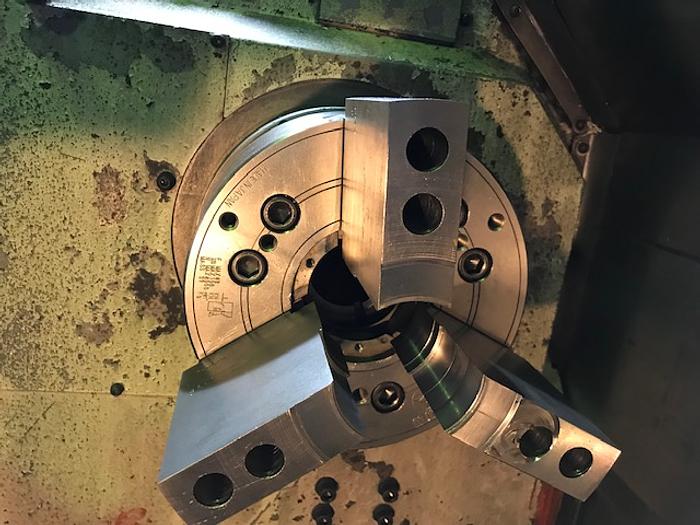

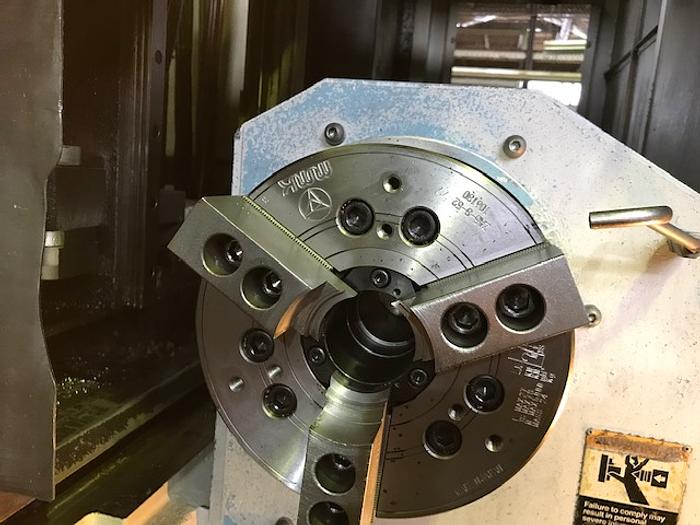

10″ MMK Hydraulic Main Chuck
8″ MMK Hydraulic Sub Spindle Chuck
Parts Catcher
PCMCIA Card Slot
Hi Pressure Coolant System
Barfeed Interface
RS-232 ports
Chip Conveyor
Comes with All Original Manuals,
10″ & 8″ Chucks,
Whole Lot of Tool Holders,
Chip Conveyor.

Specifications

ManufacturerHITACHI SEIKI
ModelSuper HICELL 250 1600
Year2001
ConditionUsed
