2011 Haas VF5SS

Livonia, MI

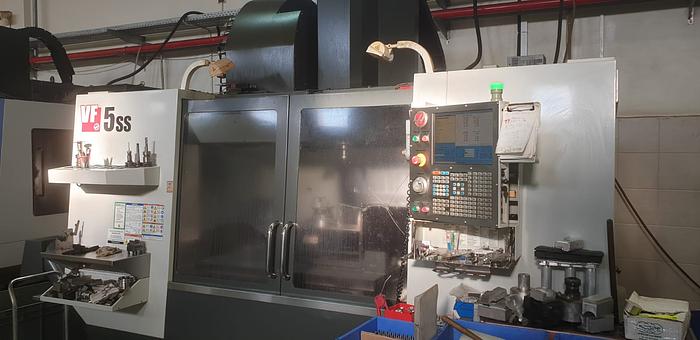

Haas Vertical Machining Center VF-5SS 2011

40 Taper Vertical Machining Centers
VF-5SS Super-Speed Vertical Machining Center;
50" x 26" x 25" (1270 x 660 x 635 mm),
40 taper,
30-hp (22.4 kW) vector drive,
12,000 rpm, inline direct-drive,
high-speed 24+1 side-mount tool changer,
1200 ipm (30.5 m/min) rapids,
1 MB program memory,
15" color LCD monitor,
USB port,
memory lock keyswitch,
rigid tapping
95-gallon (360 liter) flood coolant system.

VMC Options
COORD Coordinate Rotation & Scaling
HSM High-Speed Machining
MACRO user-definable macros
30-10474 side-Mount Tool Changer, 40-taper, 40+1 tools
RJH-C Remote Jog Handle with color LCD.
SOM spindle orientation
LK1 lifting kit
4AXBL 4th-Axis Drive and Wiring
5AXD 5th-Axis Drive and Wiring (4th-axis drive not included)
PCOOL-O Programmable Coolant Nozzle
PFDM Early power failure detection module. Protects the work-piece and cutting tool from damage by sensing power failure and prevents the spindle from dropping.
WIPS-R wireless intuitive probing system; renishaw
TSC50T Through spindle coolant, 300 PSI (21 bar)
MACC-2 Multi-Auger Chip Conveyor System; quad side augers and belt-type chip conveyor
VQC Visual Quick Code
AAG Automatic Air Gun
HIL High-Intensity Lighting
EXPANDED-MEMORY 750 MB expanded memory

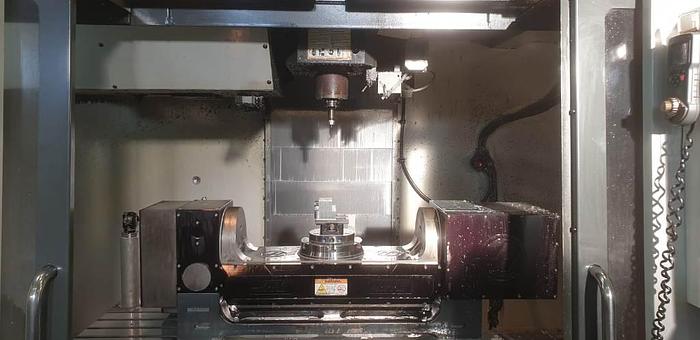

TR210 210 mm (8.27") Tilting 2-Axis Trunnion Rotary Table.
