2005 Starrag Heckert CWK500 D

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

Description

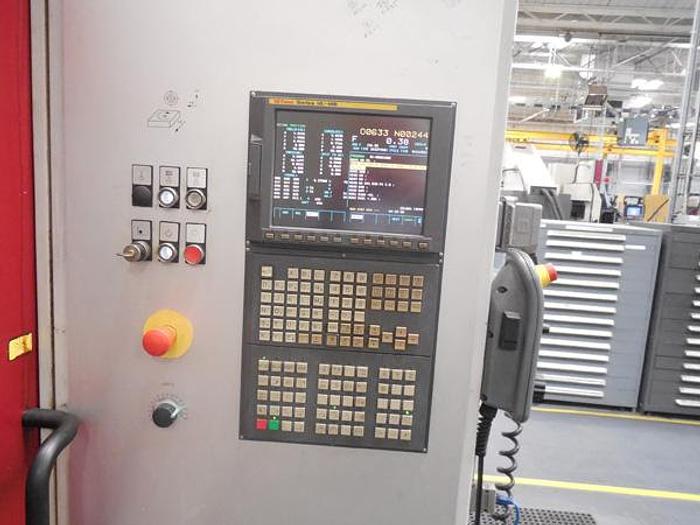

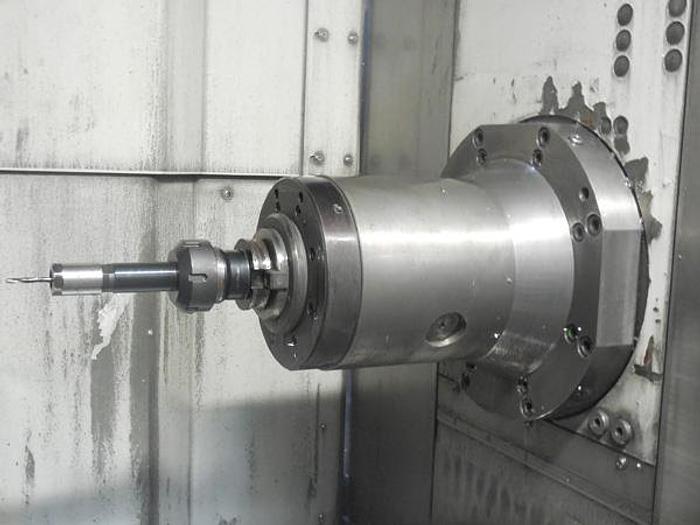

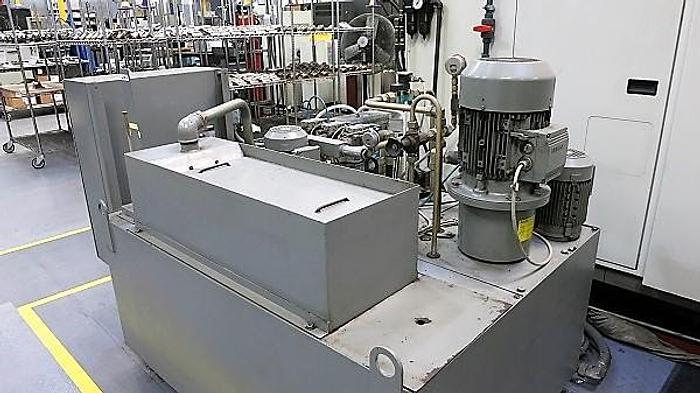

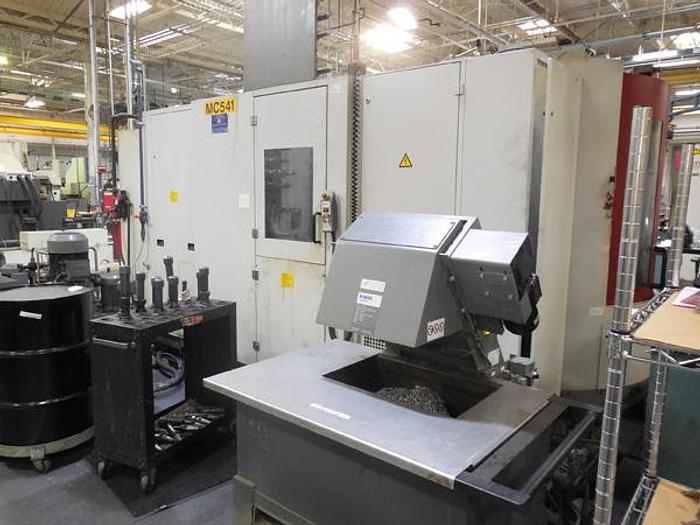

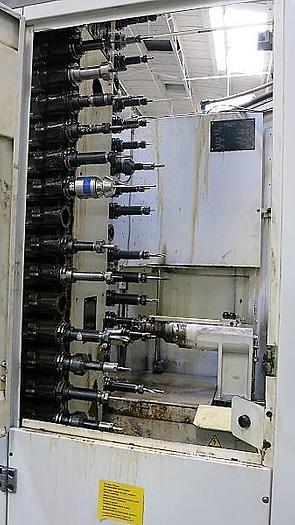

2005 Starrag Heckert CWK500 D 4-Axis HMC Pallet Size 19.6" x 19.6" (500mm x 500mm) Number of Pallets 2 Rotation on Pallets .0001 (360,000 deg.) Load Capacity 1,760 lbs (800kg) Max. Rotation Speed 25 RPM Swing 31.5" Travels: X-Axis 29.53" Y-Axis 29.53" Z-Axis 29.53" Spindle Taper CAT#40 Spindle Speeds 20 - 10,000 RPM Spindle Motor 43.6 HP Tool Changer 60 pos ATC Max. Feed Rate 1575 IPM Dimensions 5.64m x 6.35m x 3.34m H Approx. Weight 31,460 lbs (14,300 kg) Equipped With: * Fanuc 16iM CNC Control * Chip Conveyor * Thru Spindle Coolant * Coolant Nozzle * Spindle Chiller * Glass Scales * Probe

Specifications

ManufacturerStarrag Heckert
ModelCWK500 D
Year2005
ConditionUsed
