2004 Citizen L20 VIII

Livonia, MI

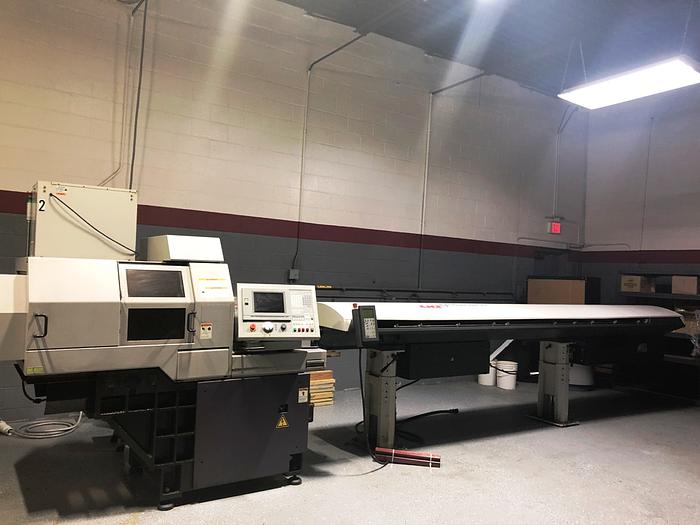

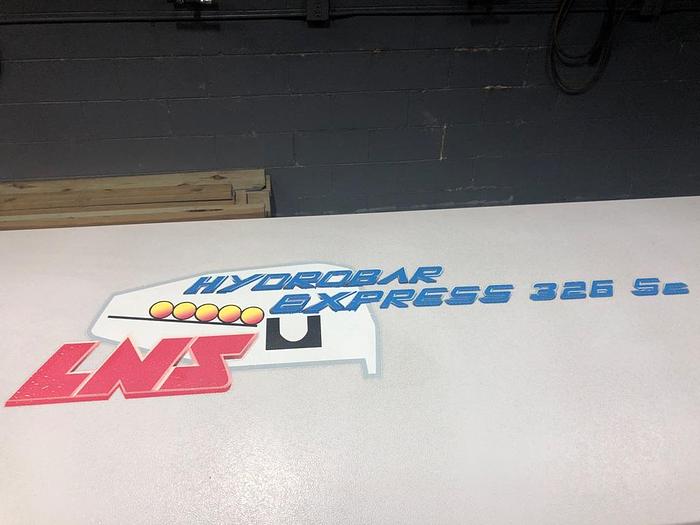

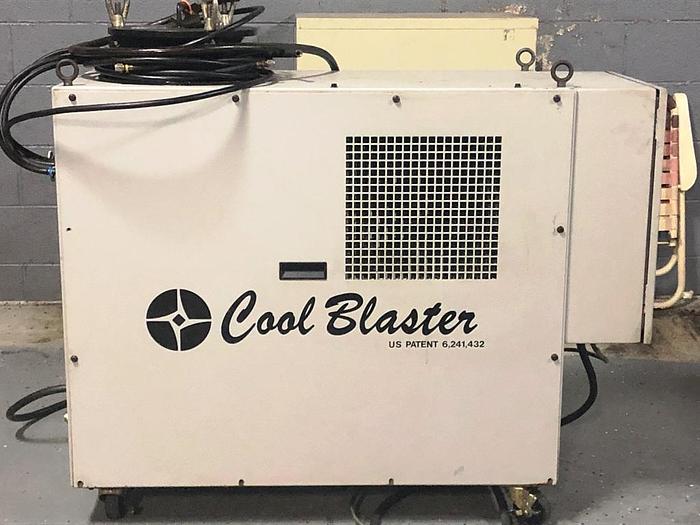

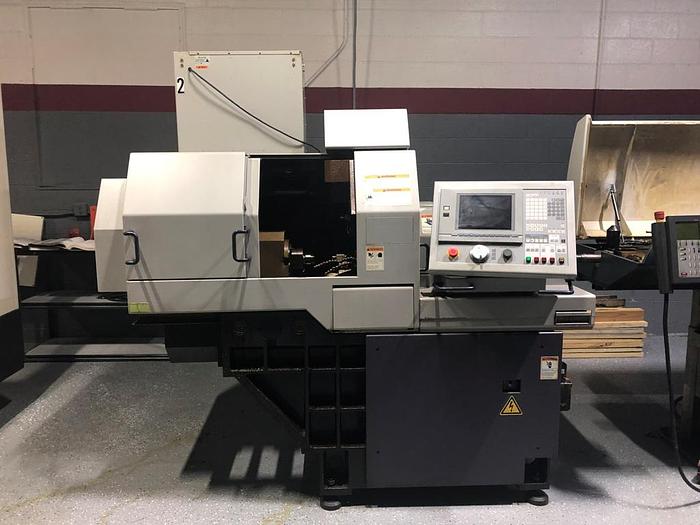

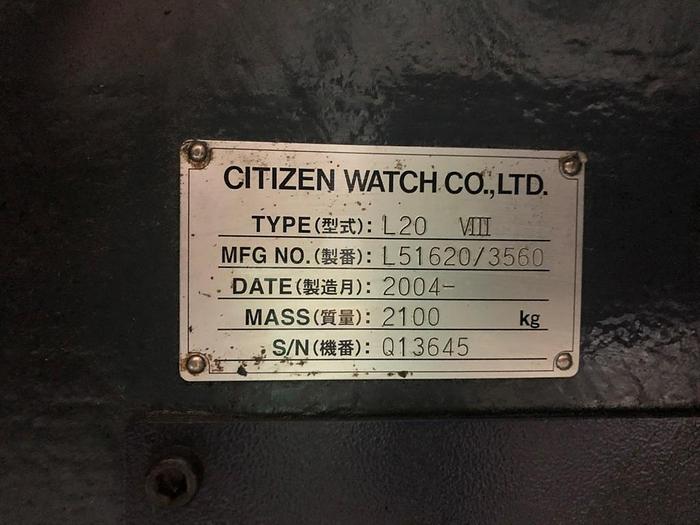

Citizen L20 VIII Swiss Lathe 2004 LNS MAGAZINE, BAR LOADER, PARTS CATCHER, MIST COLLECTOR SYSTEM, MANUAL, EXTRA TOOLING, CHANNEL GUIDES, HIGH PRESSURE COOLANT SYSTEM. S/N: 013645 Specifications: Maximum machining diameter : 20mm Maximum machining length : 200mm/1chuck Maximum drilling diameter for main spindle : 10mm Maximum tapping diameter for main spindle(tap,die) : M8 Main Spindle through-hole diameter : 26mm Spindle speed : Max.10,000min-1 Maximum drilling diameter for gang rotary tool : 8mm Maximum tapping diameter for gang rotary tool : M6 Gang rotary tool spindle speed : Max.6,000min-1 Maximum chuck diameter of back spindle : 20mm Maximum protrusion length of the back spindle workpiece : 30mm Maximum drilling diameter in back machining process : 8mm Maximum tapping diameter in back machining process : M6 Back spindle speed : Max.8,000min-1 Number of tools to be mounted : Max.37 Tool size : Turning tool : 12mm(13mm, 16mm) Sleeve : 25mm(GDS107,210)19.05mm Rapid feed rate : 32m/min Motors : For spindle drive : 2.2/3.7kW For tool spindle drive(gang tool post) : 1.0kW For back spindle drive : 0.75/1.5kW For cutting coolant oil : 0.4kW Input power capacity : 7.3kVA Center height : 1,050mm Weight : 2,350kg


ModelL20 VIII
