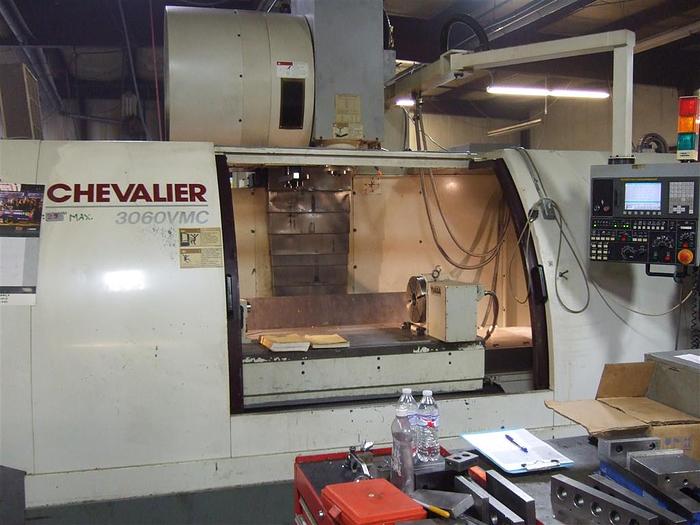

2006 Chevalier 3060VMC,

Contact us for price

Livonia, MI

orCall 732-367-4130

Description

2006, Chevalier, 3060VMC,

Machine Type: CNC Verticals

Year: 2006

Model: 3060VMC

Control: Fanuc 0iMC

Under Power: Yes

Table:

---------------

Table Size: 67 x 28.5"

Maximum Table Load: 5500 Lbs

Travels:

---------------

X-Axis Travel: 60"

Y-Axis Travel: 31.5"

Z-Axis Travel: 30"

Spindle Nose to Table Top: 7.9" - 37.9"

Spindle:

---------------

Spindle Speeds (Maximum0: 40 - 4,000 RPM

Spindle Taper: CT 50

Main Motor: 20 HP

Tool Changer:

---------------

Tool Changer Positions: 24 ATC

Max. Tool Diameter: 4.3"

Max. Tool Weight: 33 Lbs

Rapids:

---------------

Rapid Traverse (XY/ Z): 590 / 590 / 472 IPM

General:

---------------

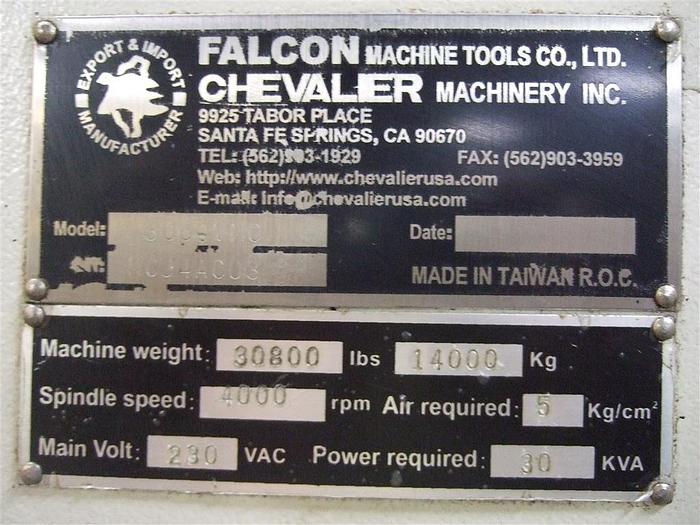

Weight: 30,800 Lbs

Width: 17' 2"

Depth: 11' 2"

Height (with Z-Axis all the way up): 11'

Equipped With:

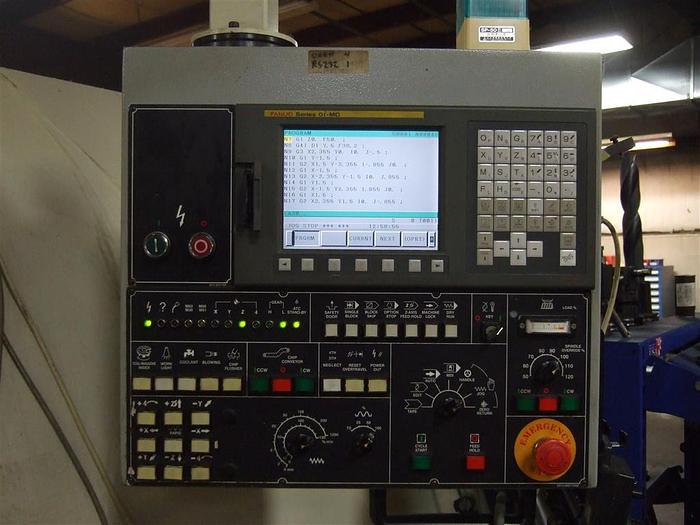

Fanuc 0iMC Control with Ethernet, RS-232, and Flash Drive

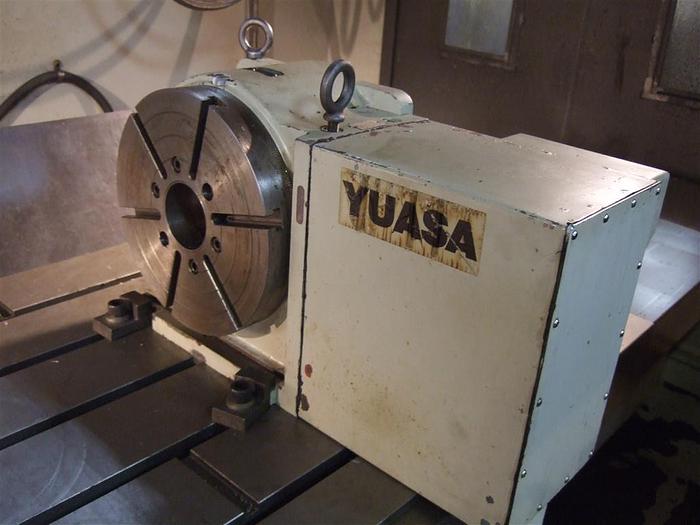

Yuasa 11" Full Contouring Rotary Table with Tailstock

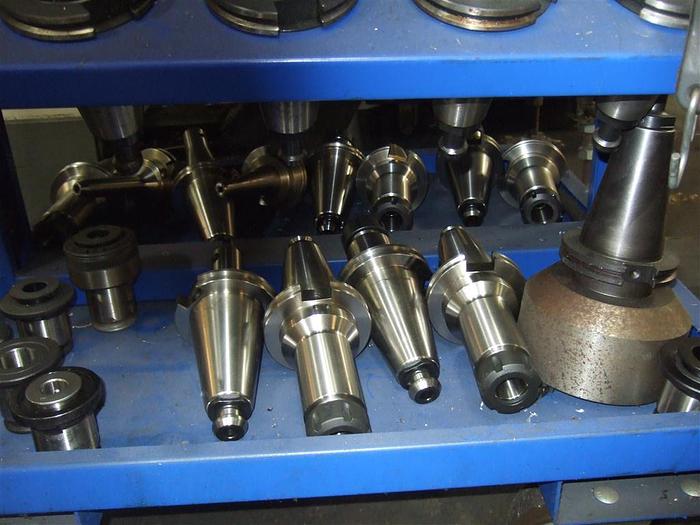

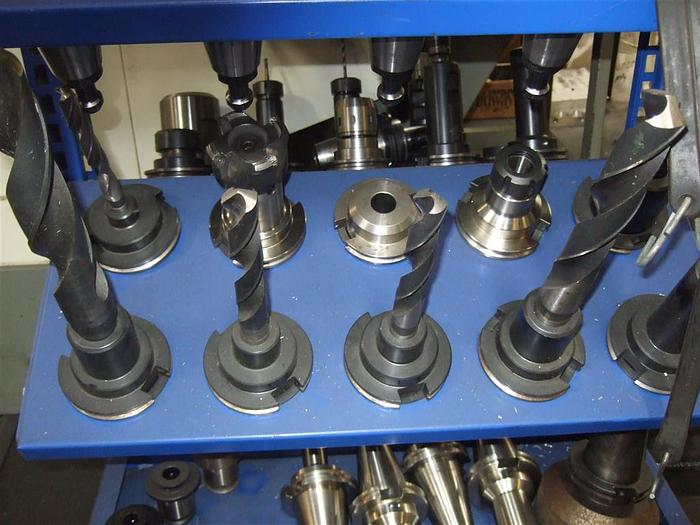

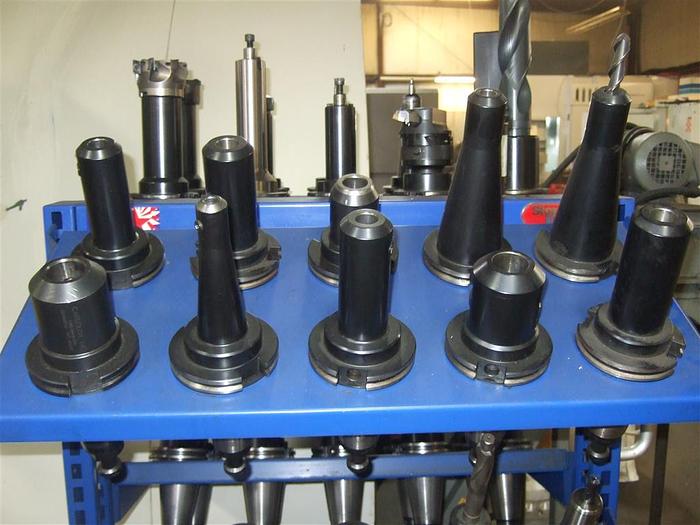

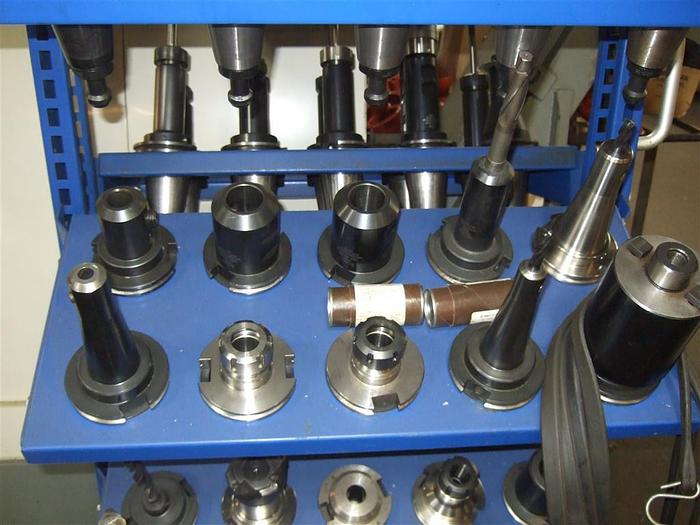

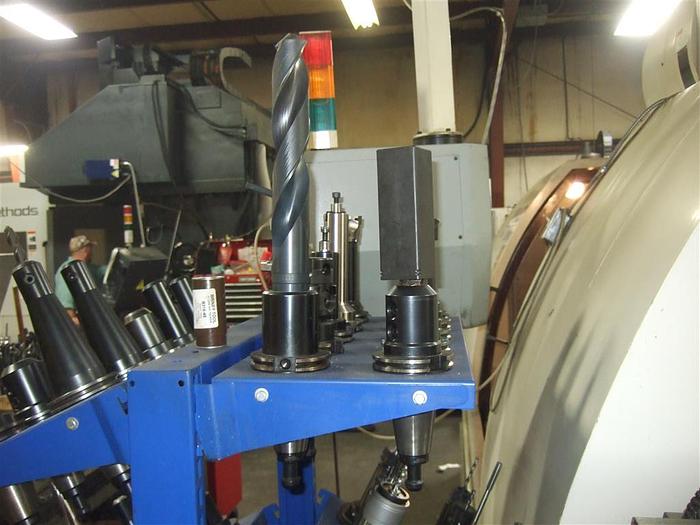

Assorted 50 Taper Tool Holders available at additional cost

24 Position Side Mount Tool Changer

20 HP Gear Driiven Spindle

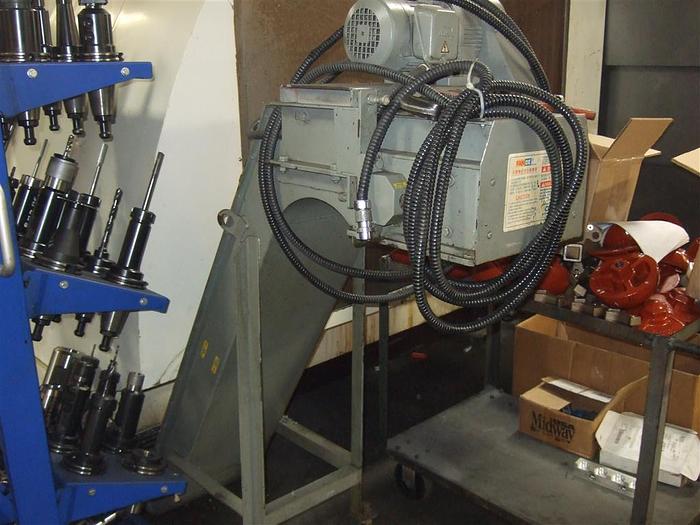

Chip Conveyor

Comments:

X & Y Axis Ball Screws were replaced recently

Recent ballbar test showed the machine to be less than .001" in a 20" circle

Specifications

ManufacturerChevalier
Model3060VMC,
Year2006
ConditionUsed
