2004 FANUC ROBODRILL ALPHA T14iD

FANUC ROBODRILL ALPHA T14iD 4-AXIS CNC DRILL TAP MACHINING CENTER 2004

Specifications

X 19.6

Y 15.7

Z 12.9

Power 10.0

RPM 20000.0

# ATC 14.0

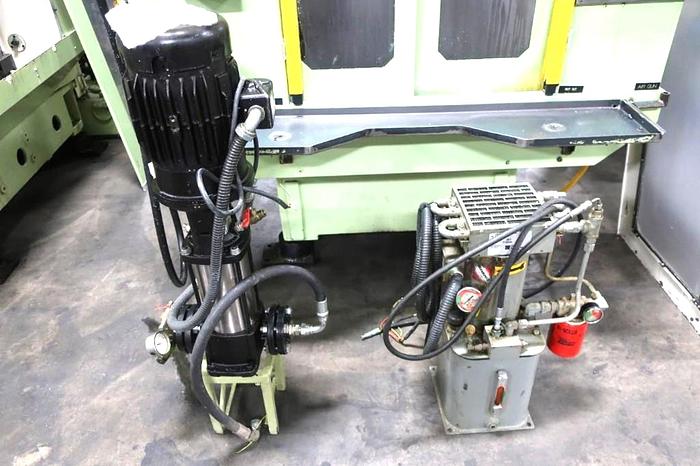

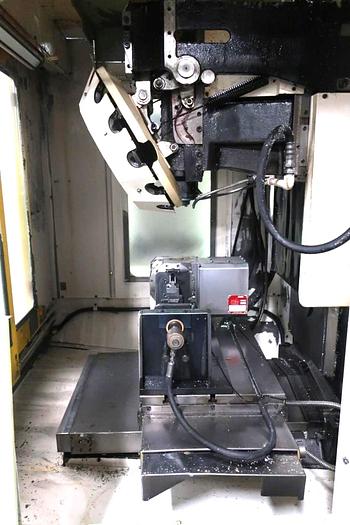

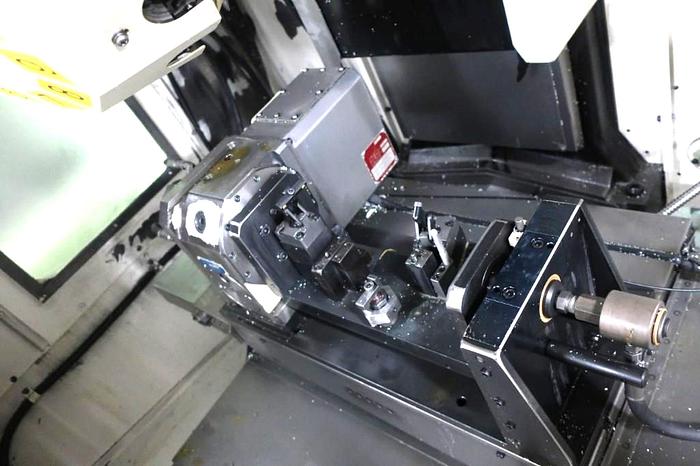

2004 FANUC ROBODRILL AT14ID 4-AXIS VERTICAL MACHINING CENTER, 14-POSITION ATC, 10,000 RPM BIG PLUS BT30 SPINDLE, 4TH AXIS TSUDAKOMA ROTARY TABLE, HYDRAULIC CLAMPING, AUTO DOOR, BARNES CHIP CONVEYOR W/ DRUM FILTER, HIGH PRESSURE COOLANT

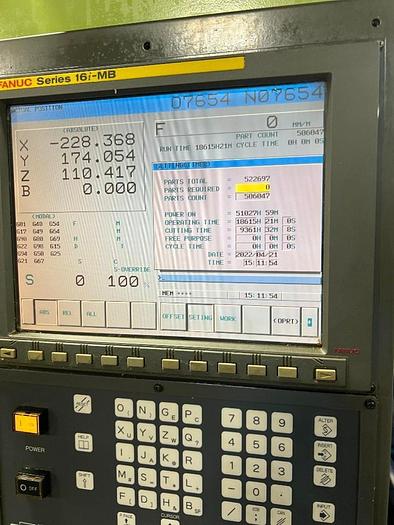

CNC Control: Fanuc 16i-MB

Table Size: 25.6” X 15.75"

Table Capacity: 550 pounds

X-Axis Travel: 19.7 inches

Y-Axis Travel: 15.74 inches

Z-Axis Travel: 12.9 inches

Spindle Speed: 10,000 RPM 10.3/7.5 HP

Spindle Taper: BT-30

Tool Changer Capacity: 14

Rapid Traverse Rate: 2,125 IPM

Tool change time: 0.9 sec.

Floor space: 85” x 72” x 95”

Weight : 6,000 Lbs.
