2011 BROTHER TC-S2D

BROTHER TC-S2D 4-AXIS CNC DRILL TAP VERTICAL MACHINING CENTER 2011

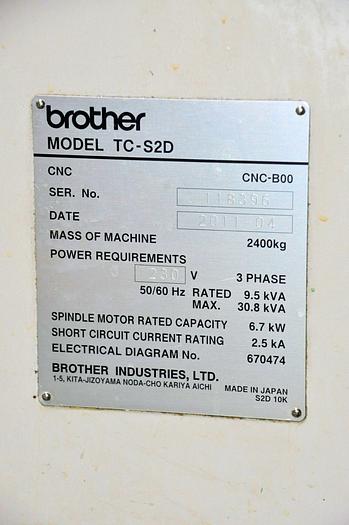

| Year: 2011 | BROTHER TC-S2DN | S/N: 118396

SPECIFICATIONS:

X            19.7"

Y             15.7"

Z             11.8"

POWER 10.1 kW

RPM     16,000 RPM

# ATC   14

TAPER  7/24 #30

X-Axis Travel 19.7"

Y-Axis Travel 15.7"

Z-Axis Travel 11.8"

Distance Between Table top and Spindle 7.1" to 18.9"

Work area size 23.6" x 15.7"

Max. Table load capacity 551 Lbs.

Spindle speeds 10 to 16,000 RPM

Speed during tapping 6,000 RPM

Spindle Taper BT-30

Spindle Motor 14 HP

Tool Storage Capacity 14

Cutting Feed Rate (X,Y) 04 to 394 IPM

Cutting Feed Rate (Z) 0.4-7.87 IPM

Rapid Traverse Rate 1969 IPM

Floor 81"x 87" x 112"H

Machine weight 5,300 lbs.

EQUIPPED WITH:

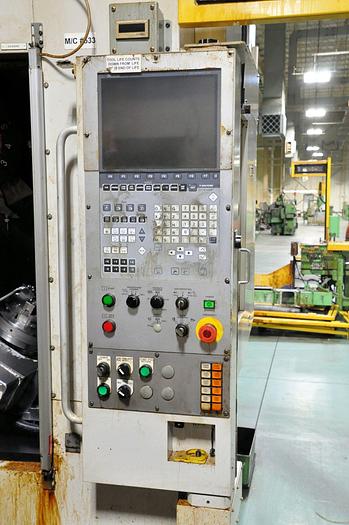

CNC B00 Controls

4-Axis Drives, 4 simultaneous,

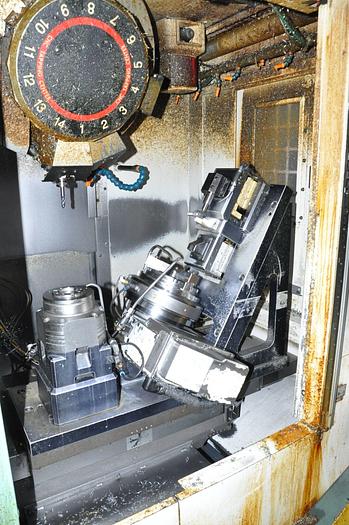

Rotary 4th Axis Table, 3-JAW CHUCK WITH ACCUATOR AND TAILSTOCK

Coolant System
