2001 Chevalier FM-43H

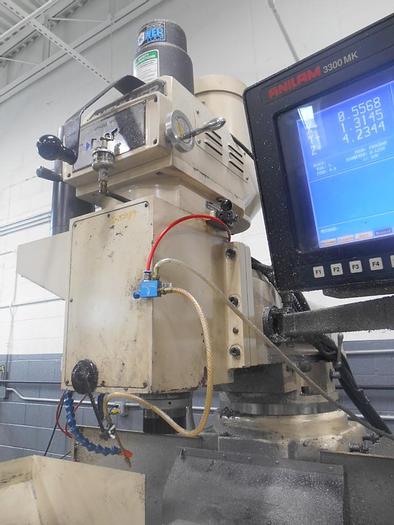

Chevalier CNC 3-Axis Vertical Milling Machine

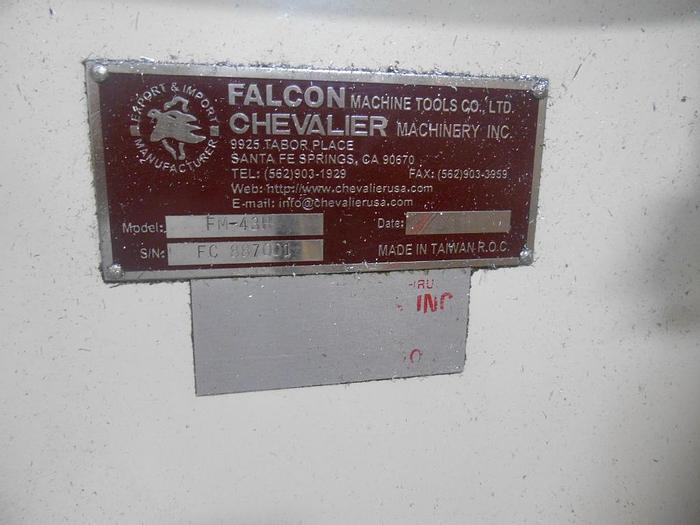

Model:  FM-43H

Serial number:  FC 887001

New 2001 (estimated)

SPECIFICATIONS:   (Note:  These specs are subject to verification by purchaser)

Table size:  10” x 54”

Knee adjustment (manual) up/down:  18-1/2” adjustment

CAT 40 Spindle taper with power draw bar

3,600 RPM Maximum Spindle Speed

5 HP Main Motor on Spindle

X Axis programmable travel:  34”

Y Axis programmable travel:  15”

Z Axis programmable travel quill travel:  5”

Full 3-axis contouring capability

USB Port for downloads

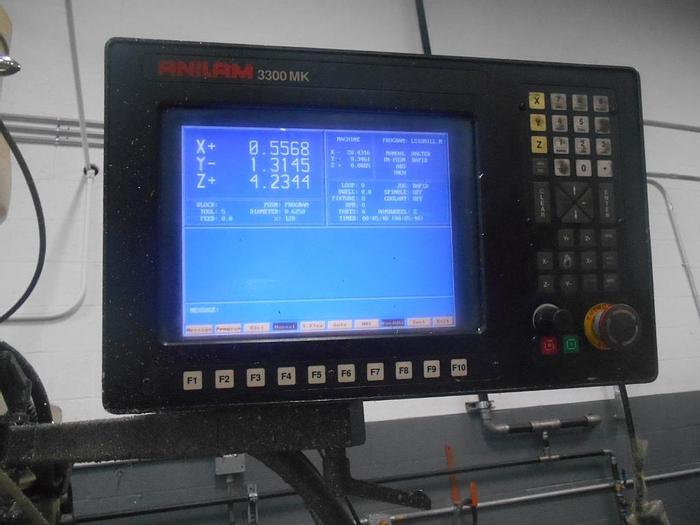

Anilam 3300MK CNC Control with color monitor.
