2003 OKUMA Macturn 250W

2003 OKUMA Macturn 250W
Contact us for price
Livonia, MI
Description

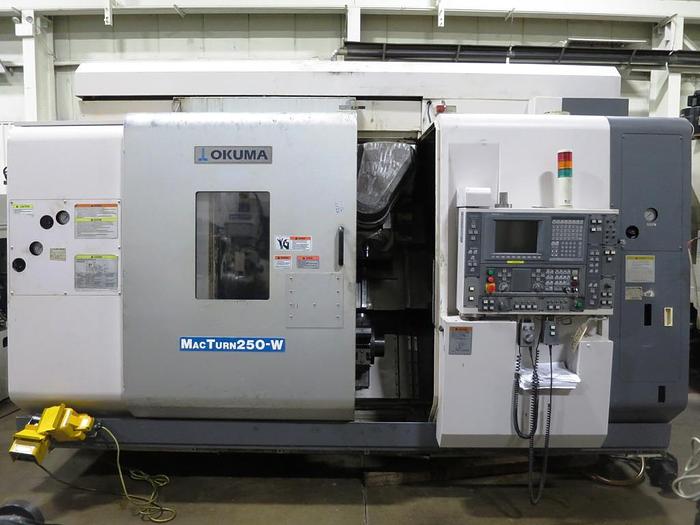

OKUMA MACTURN 250W 9-AXES CNC TURN MILL CENTER LATHE
Manufacturer: Okuma
Model: Macturn 250W
Serial Number: 106646
Year: 2003
________________________________________
General Specifications
Main Spindle
Max. Bar Diameter 2.44"
Max. Machining Diameter 21.65"
Diameter above Bench 21.65"
Type A2-6
Power 30 HP
Speed 50-5,000 RPM
C-Axis 360,000 Positions
Sub Spindle
Max. Bar Diameter 2.04"
Type A2-6
Power 15 HP
Speed 50-5,000 RPM
C-Axis 360,000 Positions
Stroke 56.7"
Milling Head B-Axis
HSK-63
Spindle Speed 6,000 RPM
Power 10 HP
Changer 40 Positions
B-Axis 210 degrees
Strokes XxY 18.7"X,+/-31.4"Y
Strokes Z 46.1"
Lower Turret
VDI 40
Number of Positions 12
Strokes X & Z 10.2"Y,34.3"Z
Rapid Traverse
1181 IPM
Y-Axis 1023 IPM
Z-Axis 1575 IPM
W-Axis 1575 IPM
B-Axis 1180 IPM
C-Axis 200 IPM
Machine Dimensions 150"L x 160"W
Machine Height 114"H
Machine Weight (approx.) 31,000 Lbs.
Equipped With
OSP E100 CNC Control
10" 3-Jaw Chuck Main Spindle
6" 3-Jaw Chuck Sub Spindle
12,000 RPM Option Live Tool Spindle
Mist Buster
Sub-Spindle with Full C-Axis
Lower Turret
44 Magazine Tool Changer
High Pressure Chip Blaster
Renishaw Tool Probing Option
Tool Setter
Chip Conveyor
NOTE: Machine Manufactured New 2003 - Installed New 2005
ALL SPECIFICATIONS SUBJECT TO BUYER'S VERIFICATION
Specifications
Manufacturer | OKUMA |
Model | Macturn 250W |
Year | 2003 |
Condition | Used |
