2003 OKUMA Macturn 250W - Nine axis CNC Lathe

2003 OKUMA Macturn 250W - Nine axis CNC Lathe

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

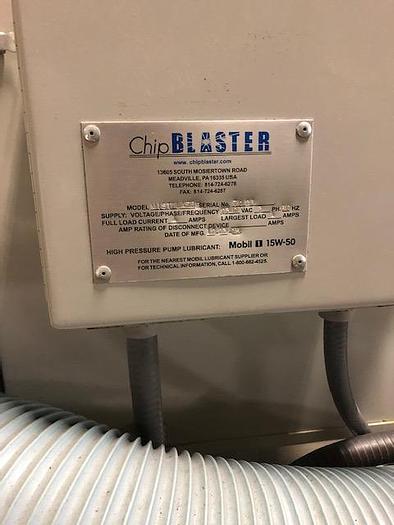

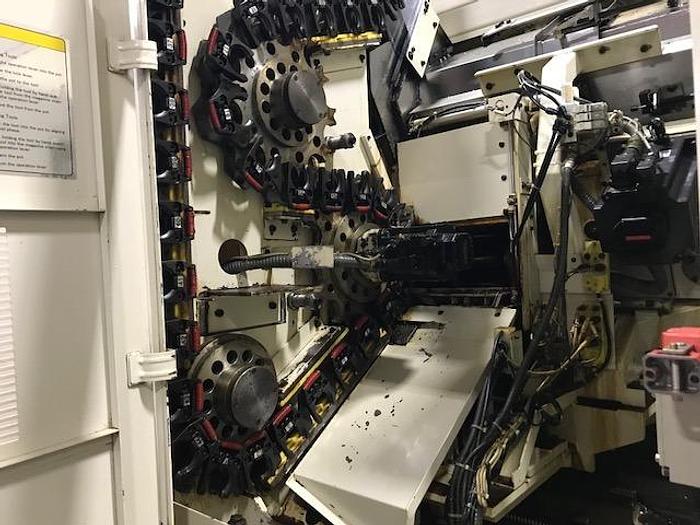

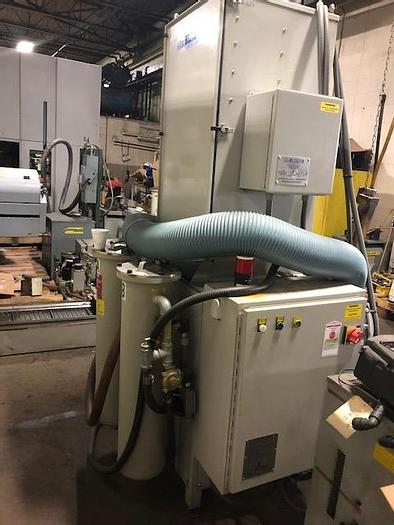

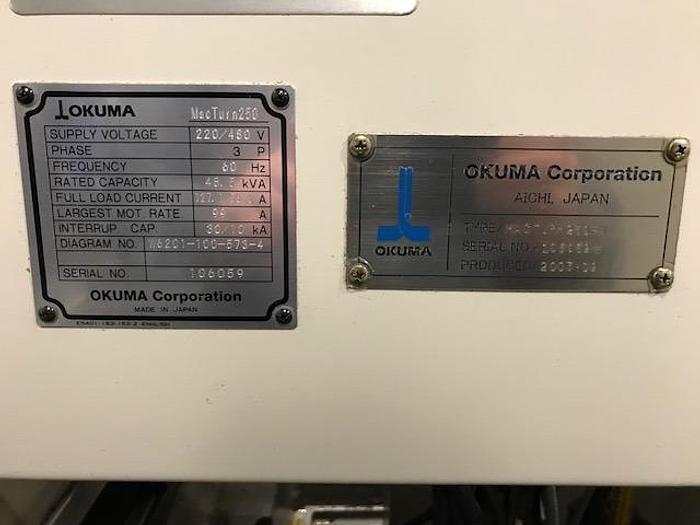

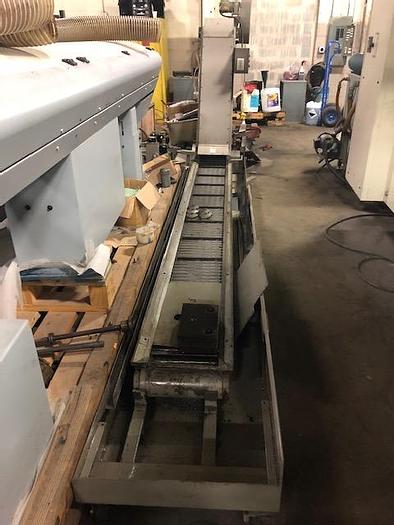

OKUMA MACTURN 250W 9-AXES CNC TURN MILL CENTER LATHE Manufacturer: Okuma Model: Macturn 250W Serial Number: 106059 Year: 2003 ________________________________________ General Specifications Main Spindle Max. Bar Diameter 2.44" Max. Machining Diameter 21.65" Diameter above Bench 21.65" Type A2-6 Power 30 HP Speed 50-5,000 RPM C-Axis 360,000 Positions Sub Spindle Max. Bar Diameter 2.04" Type A2-6 Power 15 HP Speed 50-5,000 RPM C-Axis 360,000 Positions Stroke 56.7" Milling Head B-Axis HSK-63 Spindle Speed 6,000 RPM Power 10 HP Changer 40 Positions B-Axis 210 degrees Strokes XxY 18.7"X,+/-31.4"Y Strokes Z 46.1" Lower Turret VDI 40 Number of Positions 12 Strokes X & Z 10.2"Y,34.3"Z Rapid Traverse 1181 IPM Y-Axis 1023 IPM Z-Axis 1575 IPM W-Axis 1575 IPM B-Axis 1180 IPM C-Axis 200 IPM Machine Dimensions 150"L x 160"W Machine Height 114"H Machine Weight (approx.) 31,000 Lbs. Equipped With OSP E100 CNC Control 10" 3-Jaw Chuck Main Spindle 6" 3-Jaw Chuck Sub Spindle 12,000 RPM Option Live Tool Spindle Mist Buster Sub-Spindle with Full C-Axis Lower Turret 44 Magazine Tool Changer High Pressure Chip Blaster Renishaw Tool Probing Option Tool Setter Chip Conveyor NOTE: Machine Manufactured New 2003 - Installed New 2005 ALL SPECIFICATIONS SUBJECT TO BUYER'S VERIFICATION


ModelMacturn 250W
