2013 Haas VF2SS
No longer available
2013 Haas VF2SS
Livonia, MI
Description

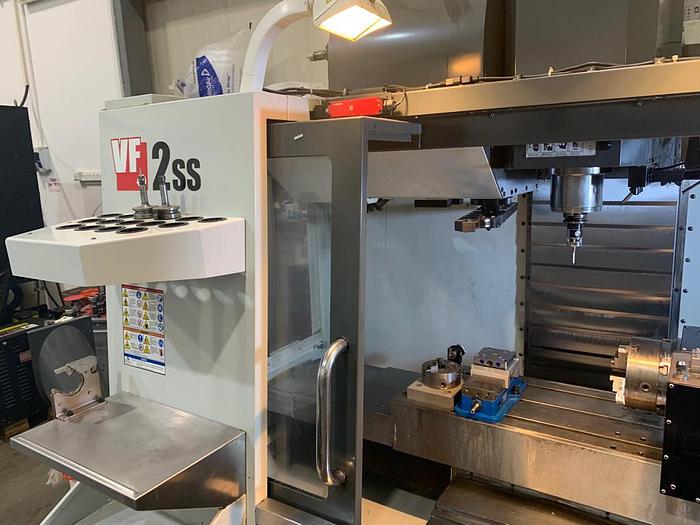

HAAS VF-2SS 4-AXIS SUPER SPEED VERTICAL MACHINING CENTER 2013
Specifications
Travels
X-Axis 30"
Y-Axis 16"
Z-Axis 20"
Spindle Nose to Table (- min) 4"
Spindle Nose to Table (- max) 24"
Table:
Length 36"
Width 14"
T-Slot Width 5/8"
T-Slot Center Distance 4.92"
Number of Std T-Slots 3
Max. Weight on Table (evenly distributed) 1,500 lbs.
Spindle:
Max. rating 30 HP
Max. speed 12,000 RPM
Max. Torque 90 ft-lb @ 2000 RPM
Drive System inline direct-drive
Taper BT 40
Bearing lubrication Air/Oil injection
Cooling Liquid/Cooled
Feedrates:
Rapids on X 1000 in/min
Rapids on Y 1000 in/min
Rapids on Z 1000 in/min
Max. Cutting 833 in/min
Tool Changer:
Type SMTC
Capacity 24+1
Max. Tool Diameter (adjacent empty) 5"
Max. Tool Diameter (full) 3"
Max. Tool length (from gage line) 11"
Max. Tool weight 12 lb.
Tool-to-Tool (avg) 1.6 sec.
Chip-to-Chip (avg) 2.2 sec.
General:
Air required 4 scfm, 100 PSI
Coolant capacity 55 gal
Machine weight 8,000 lbs
Equipped With
Haas CNC Controls
Side Mount 24 Position Automatic Tool Changer
12,000 RPM Inline direct drive Spindle
Expanded Memory 750 MB
Chip Conveyor auger
Coolant System
Rigid Tapping
Splash Guards
High Intensity Lighting
High Speed Machining
Programmable Coolant Nozzle
early power failure detection module
remote jog handle
wips-r intuitive probing. renishaw
macros
rotational & scaling
spindle orientation
4th axis enabled
4th axis rotary table
intuitive programing systems
hard drive
Replacement price $90,000
Specifications
Manufacturer | Haas |
Model | VF2SS |
Year | 2013 |
Condition | Used |
