2015 HAAS VF-3
No longer available
2015 HAAS VF-3
Livonia, MI
Description
HAAS VF3- CNC PRECISION VERTICAL MACHINING CENTER 2015
Specifications
Travels:
X Axis 40"
Y Axis 20"
Z Axis 25"
Spindle nose to table (max) 29.5"
Spindle nose to table (min) 4.5"
Table:
Length 54"
Width 25"
T-Slot width 5/8"
T-Slot center distance 3.15"
Number of Std T-Slots 5
Max. weight on table (evenly distributed) 3500 lbs

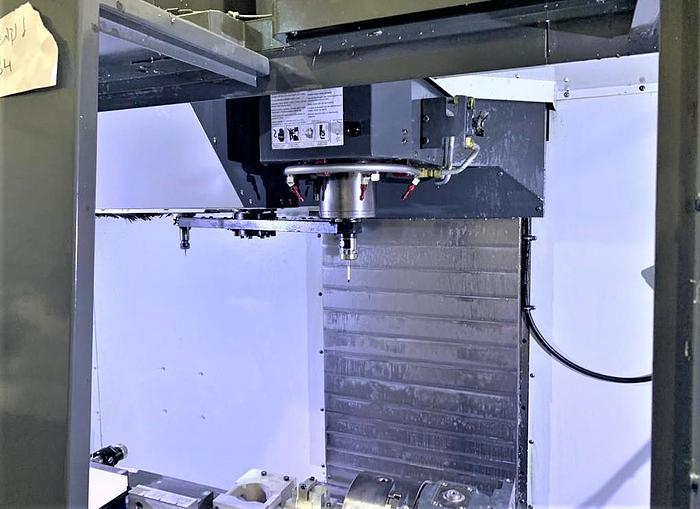

Spindle:
Max rating 30 HP
Max speed 15,000 RPM
Max torque 90ft-lb @ 2000 RPM
Drive system inline direct-drive
Max. torque w/opt gearbox 250ft-lb @ 450 RPM
Taper BT40
Bearing lubrication air/oil injection
Cooling liquid cooled
Feedrates:
Rapids on X, Y & Z 710 in/min
Max. cutting 500 in/min
Axis Motors:
Max. thrust X & Y 2550 lb
Max. thrust Z 4200 lb

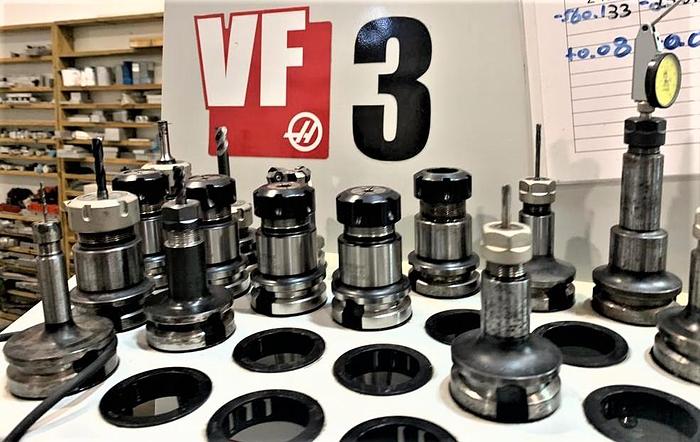

Tool changer::
Type Carousel (SMTC Opt)
Capacity 40
Max. tool diameter (full) 3.5"
Max tool weight 12 lb
Tool to tool (avg) 4.2 sec.
Chip to chip (avg) 4.2 sec
General:
Air required 4 Scfm,100 PSI
Equipped With

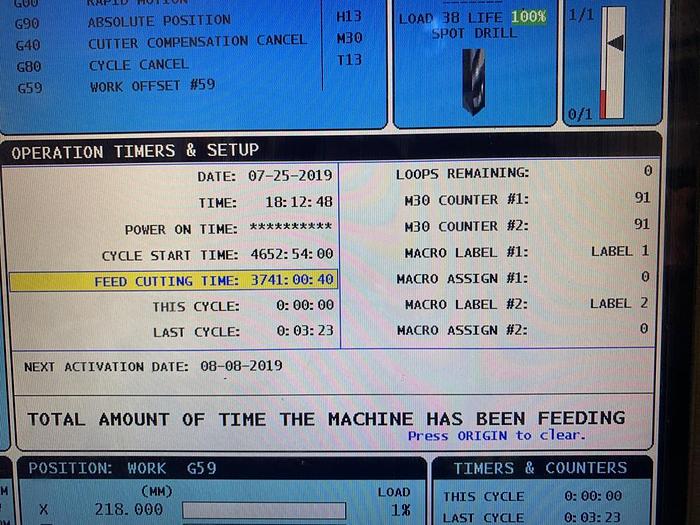

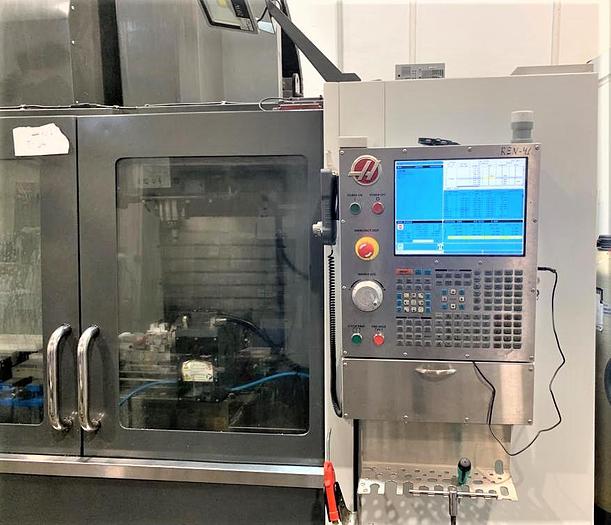

Haas CNC Controls
Macros
Rotation & Scaling
Rigid Taping
Spindle Orientation
Intuitive Programming

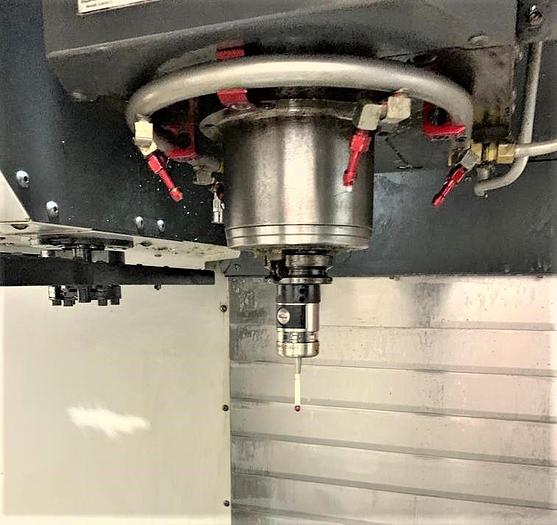

Wireless Renishaw Probe
Chip Augar

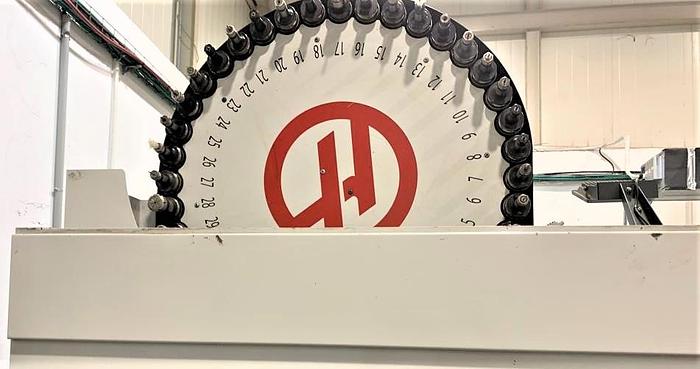

40 Position side Mount Tool Changer
High Voltage options
early power failure detection
remote jog handle
40 position side mount tool changer
wips-r inuitive probing, renishaw
4th & 5th axis enabled
hard drive

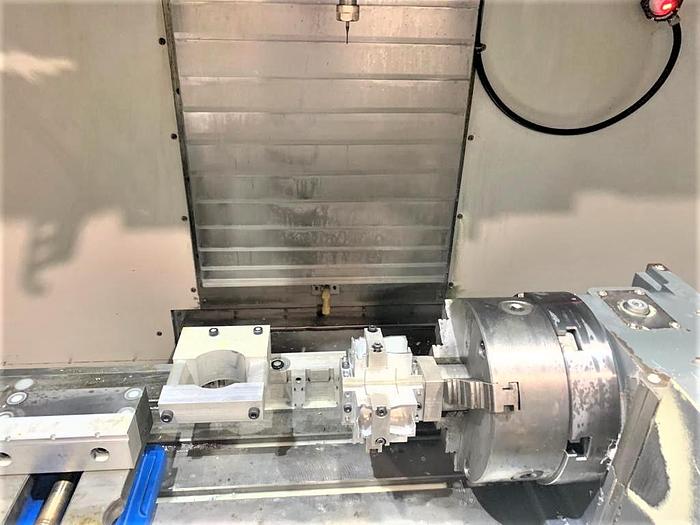

4th axis rotary table
replacement price $115,000
Specifications

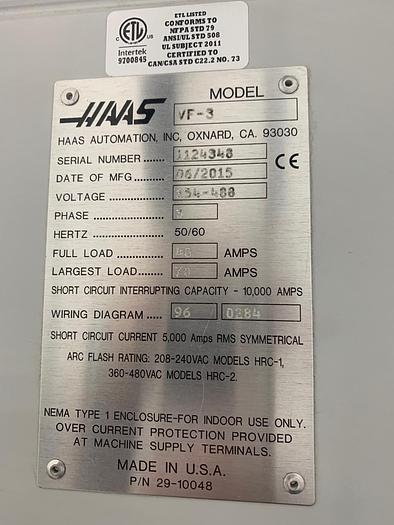

Manufacturer | HAAS |
Model | VF-3 |
Year | 2015 |
Condition | Used |
