1995 OKUMA CADET L1420 LNC10 CNC Lathe - Big Bore CADET L1420 LNC10

$23,000 (USD)

Livonia, MI

orCall 732-367-4130

Description

Okuma CADET L1420 LNC10
SPECIFICATIONS:
SWING OVER SADDLE..................... 18.90"
DISTANCE BETWEEN CENTERS.............. 25.59"
MAX. TURNING DIAMETER................. 14.17"
X-AXIS TRAVEL ........................ 9.05"
Z-AXIS TRAVEL ........................ 26.38"
SPINDLE SPEED......................... 65-3200 RPM
NUMBER OF SPEEDS...................... INFINITELY VARIABLE
SPINDLE NOSE.......................... A2-8
SPINDLE BORE.......................... 3.15"
NUMBER OF AXIS........................ 2

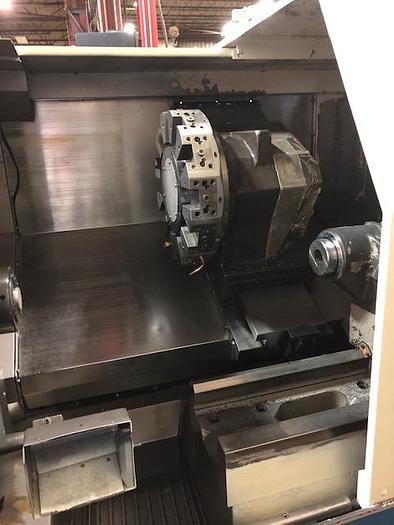

TURRET................................ V12
TAILSTOCK QUILL DIA. ................. 3.94"
TAILSTOCK TAPER ...................... MT#5
TAILSTOCK QUILL STROKE ............... 4.72"
MAINSPINDLE MOTOR .................... 20/15HP
APPROX. WEIGHT ....................... 13,600 LBS

EQUIPPED WITH:

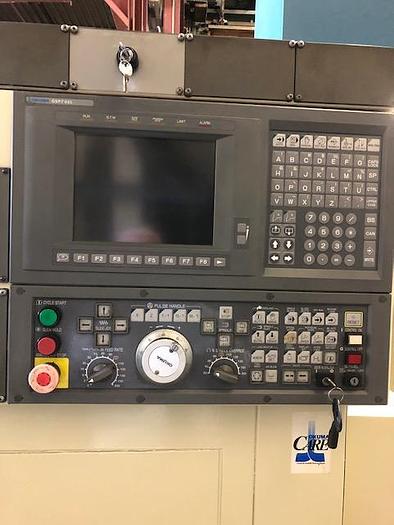

OSP 700L CONTROL

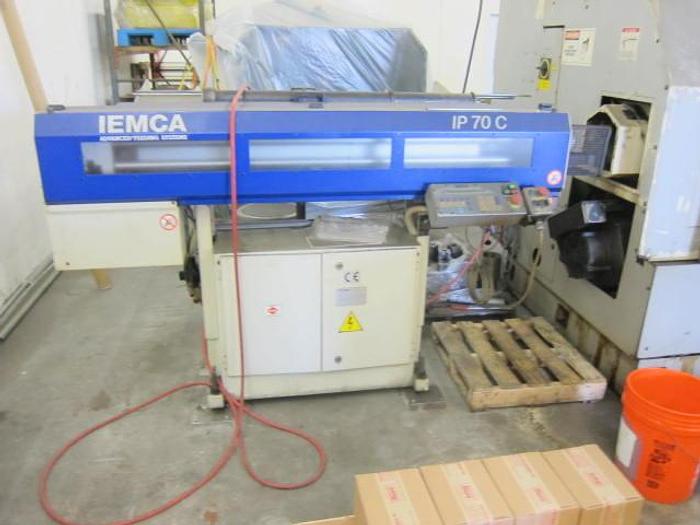

Iemca Bar Feed
Collet Chuck

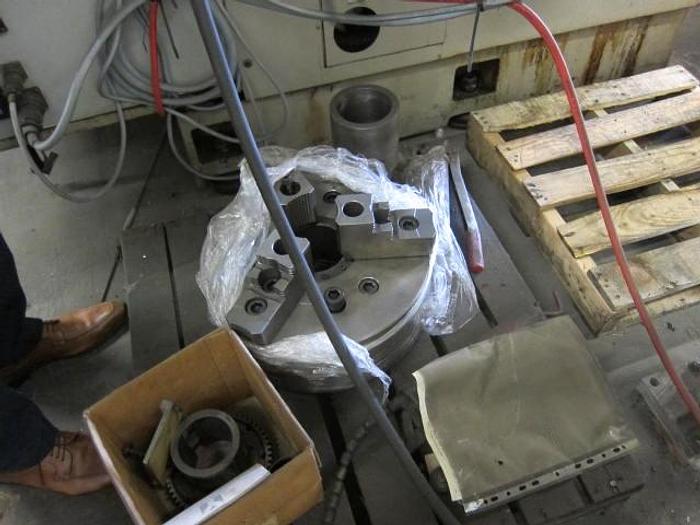

15" 3 Jaw Chuck

Specifications

ManufacturerOKUMA CADET L1420 LNC10 CNC Lathe - Big Bore
ModelCADET L1420 LNC10
Year1995
ConditionUsed
