2002 Makino A71

2002 Makino A71

Contact us for price

Livonia, MI

Contact Us

orCall 732-367-4130

Description

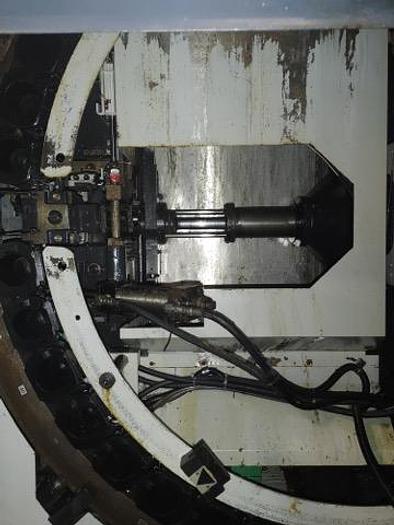

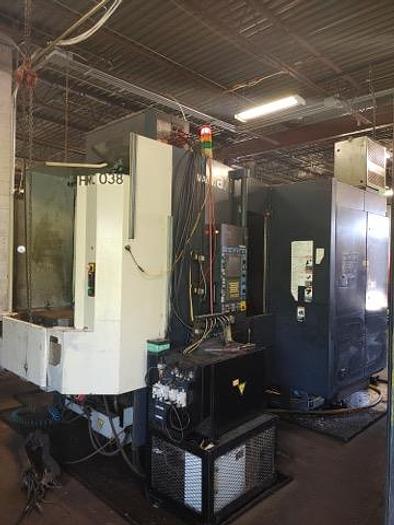

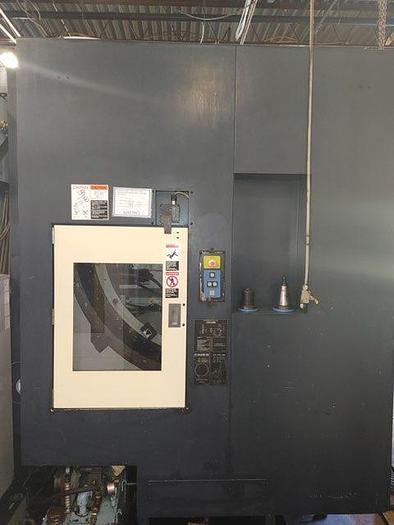

20" x 20" Pallet Makino A71 CNC 4-Axis Precision Horizontal Machining Center 2002



Manufacturer: Makino

Model: A71


Year: 2002



________________________________________

General Specifications

Pallet 19.7" x 19.7" X Axis 28.7" Y Axis 28.7" Z Axis 31.5" 2 Speed Range Spindle 10,000 RPM Rapid Traverse 1,968 in/min Max. Work Piece 31.5" x 39.4" Max. Payload 1,540 Lbs. ATC Capacity 40 Spindle Taper 50 Tool to Tool 1.7 Seconds Chip to Chip 3.2 Seconds Max. Tool Length 17.72" Max. Tool Diameter 11.81" Max. Tool Weight 44 Lbs. MOTOR SPECIFICATIONS: Main Spindle Motor 30Kw





Equipped With

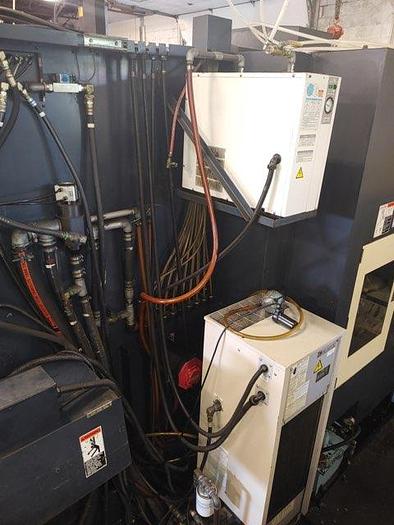

Makino Pro 3 CNC Control (Fanuc16i) Full 4th Axis Rotary Table Thru Spindle Coolant System Hydraulic Unit, Chiller 40 Position Tool Changer Chip Conveyor Hydraulic clamping for fixtures on pallets helical interpolation tool compensation

 ALL SPECIFICATIONS SUBJECT TO BUYER'S VERIFICATION

Specifications

ManufacturerMakino
ModelA71
Year2002
ConditionUsed
