1999 Kitamura H400

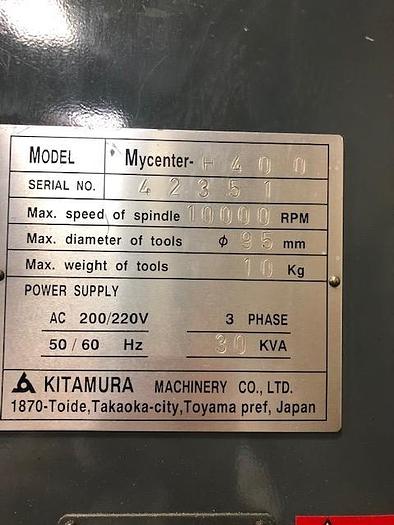

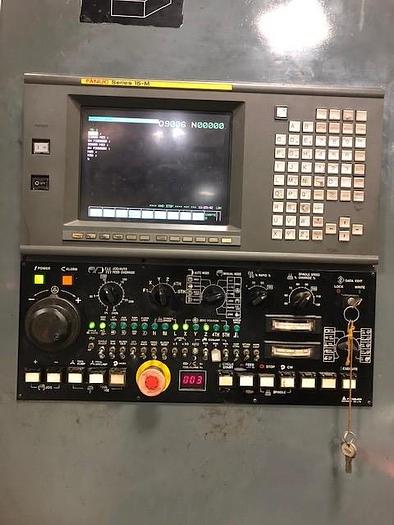

1999 Kitamura HMC Model H400 with Fanuc 15M control. S/N 42195

Specifications:

Pallet Size / Number of Pallets  15.7" x15.7" / 2 plt

X-Axis Travel     24.02"

Y-Axis Travel     20.08"

Z-Axis Travel     20.08"

Pallet Indexing .001 Degree Index

Maximum Pallet Load   880 lbs.

Spindle Taper  CT # 40

Spindle Speed  20 to 10,000 RPM

Spindle Motor  20 HP

Spindle Nose to Table Top          2" - 21.8"

Number of Tool Positions            100 Position ATC

Pallet Change Time        10 seconds

Rapid Traverse Rates     949 IPM

Tool Change Time           1.7 seconds

Machine Dimensions L x W x H  15' x 8' x 10'

Machine Weight              22,000 lbs.

Equipped with

100 Position Toolchanger

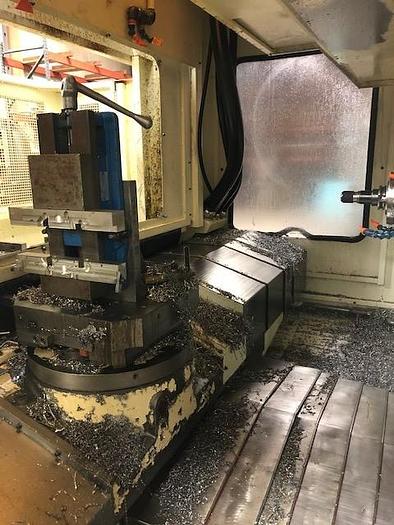

Full 4th axis

Coolant Through Spindle

9.5" Color Monitor

Rigid Tapping

RS 232 Port Interface

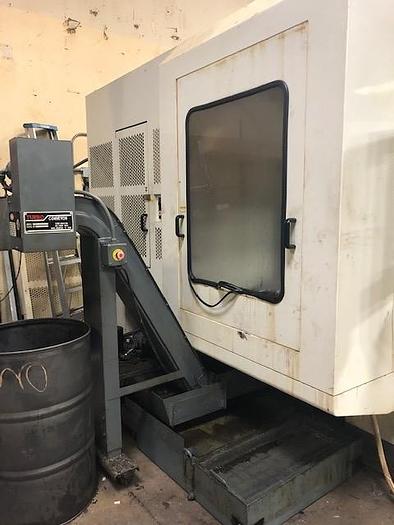

Chip Conveyor

All Available Manuals
