1999 KITAMURA H400

Contact us for price

Livonia, MI

orCall 732-367-4130

Description

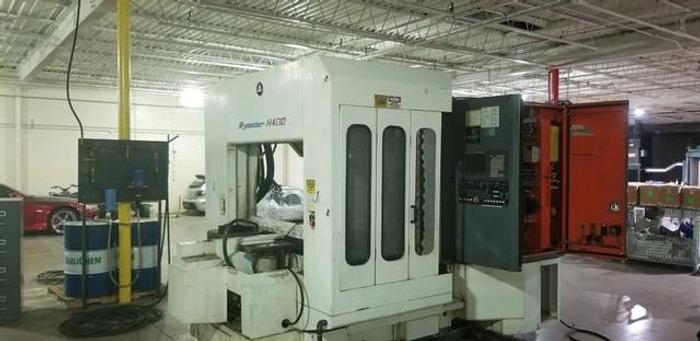

1999 Kitamura H400 Fanuc 15M
S/N 42386
Pallet Size / Number of Pallets 15.7" x15.7" / 2 plt
X-Axis Travel 24.02"
Y-Axis Travel 20.08"
Z-Axis Travel 20.08"
Pallet Indexing .001 Degree Index
Maximum Pallet Load 880 lbs.
Spindle Taper BT # 40
Spindle Speed 20 to 10,000 RPM
Spindle Motor 20 HP
Spindle Nose to Table Top 2" - 21.8"
Number of Tool Positions 100 Position ATC
Pallet Change Time 10 seconds
Rapid Traverse Rates 949 IPM
Tool Change Time 1.7 seconds
Machine Dimensions L x W x H 15' x 8' x 10'
Machine Weight 22,000 lbs.

Equiped with
100 Position Toolchanger
1 degree indexing
Coolant Through Spindle
9.5" Color Monitor
Rigid Tapping
RS 232 Port Interface

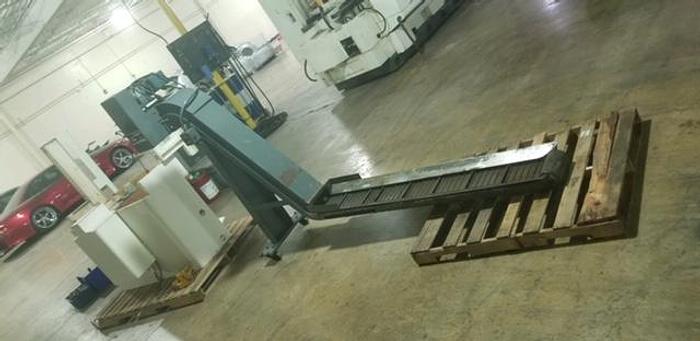

Chip Conveyor
All Available Manuals

Specifications

ManufacturerKITAMURA
ModelH400
Year1999
ConditionUsed
