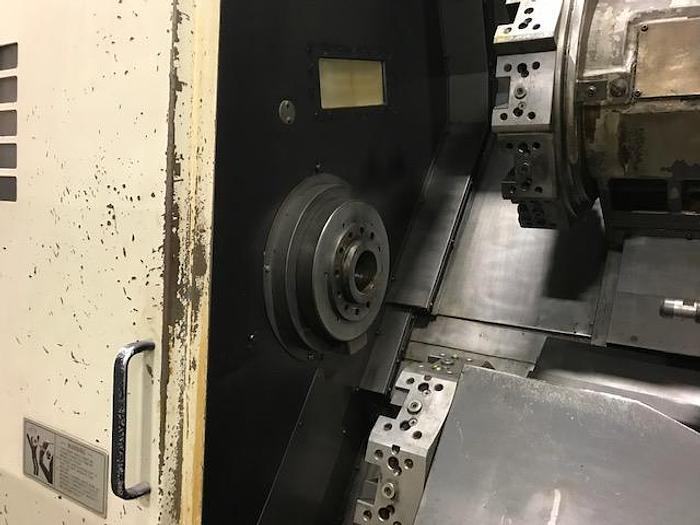

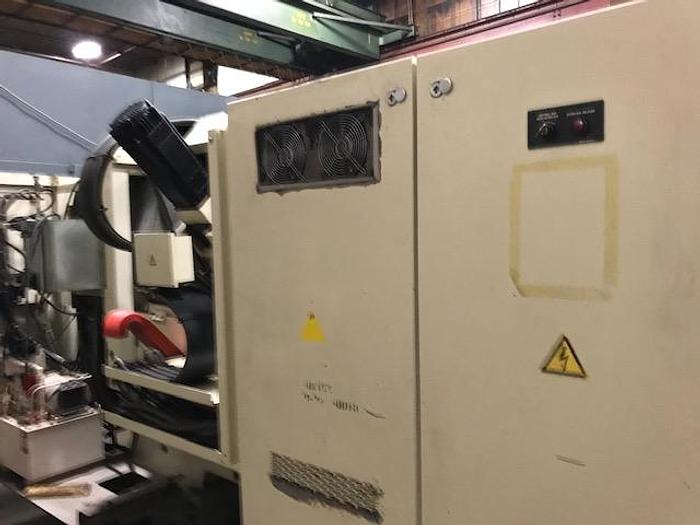

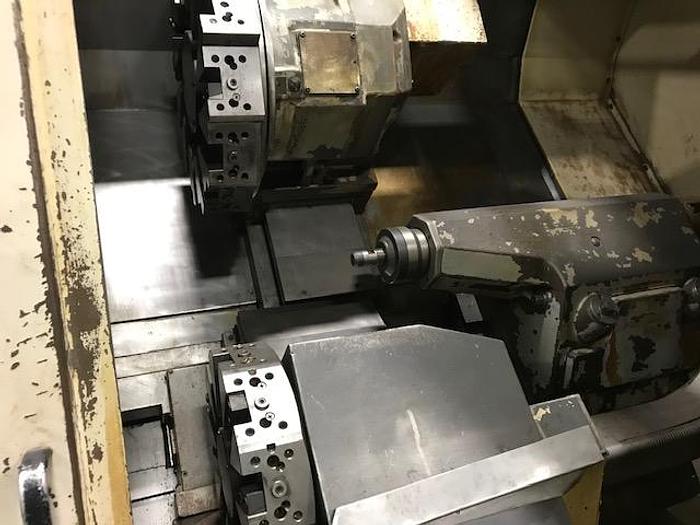

1995 OKUMA LU25, Twin Turret, Tailstock

1995 OKUMA LU25, Twin Turret, Tailstock

$19,000 (USD)

Location:Livonia, MI

Contact Us

orCall 732-367-4130

Description

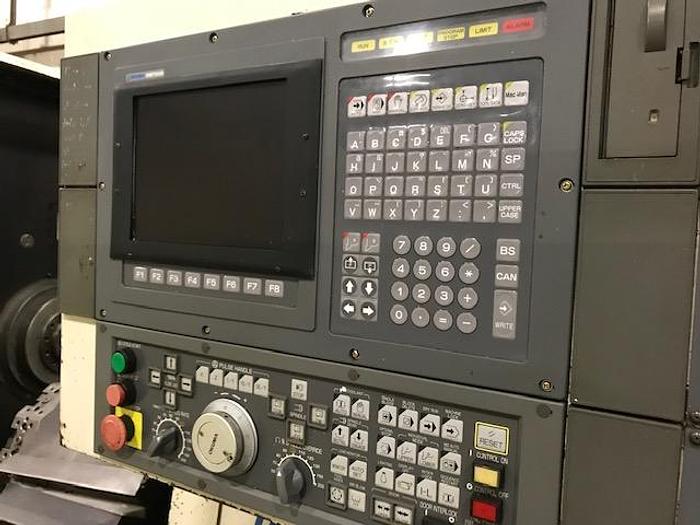

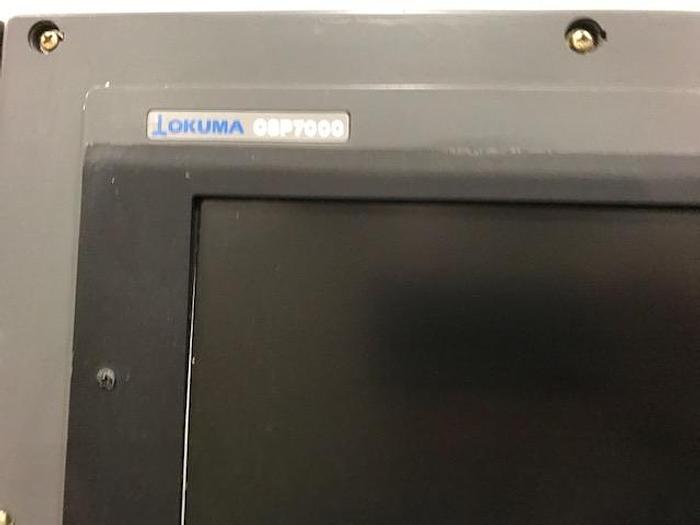

OKUMA LU25 4-AXIS TWIN TURRET CNC LATHE Preliminary Specification. Catalogue Specifications Swing over Bed 25.6" Swing over Carriage: 16.5" Swing over Cross Slide: 13" Distance Between Centers: 25.6" Max. Turning Diameter x Length: 16.54" x 15.75" Through Spindle Hole: 3.5" Speed: 65-3500 RPM Spindle Nose Type: JIS A2-8 Upper X-Axis Travel: 8.27" + 3.54" Lower X-Axis Travel: 5.12" + 2.56" Lower Z-Axis Travel: 26" X-Rapid Feed: 590.55 IPM Z-Rapid Feed: 787.4 IPM Upper Turret Tools: 12 Lower Turret Tools: 10 OD Turning Tools: .98" ID Turning Tools: 1.57" Tailstock Spindle Diameter: 3.94" Tailstock Taper. 5MT Tailstock Spindle Travel: 3.94" Spindle Drive Motor: 30 HP / 45 HP Carriage Feed (Z-Axis): 4.8 HP Upper X-Axis Cross-Slide Feed: 4.8 HP Lower X-Axis Cross-Slide Feed: 3.4 HP EQUIPPED WITH: Okuma OSP7000L CNC Control Tailstock coolant tank and tray Approximate Weight: 16000 Lbs Serial Number: 0058 Year (New 1995)

Specifications

ManufacturerOKUMA
ModelLU25
Year1995
ConditionUsed
