2008 MAZAK Nexus HCN-6000-II
No longer available
2008 MAZAK Nexus HCN-6000-II
Livonia, MI
Description

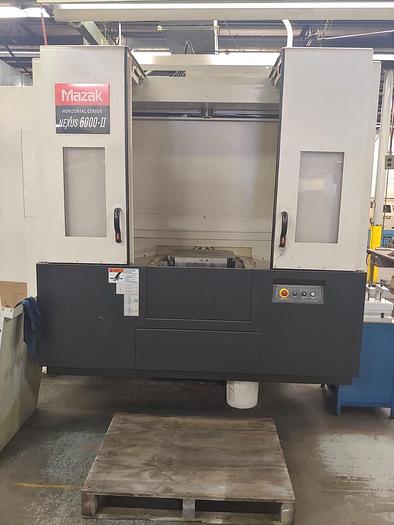

2008 Mazak Nexus HCN-6000-II CNC Horizontal Machining Center
SPECIFICATIONS
Table / Pallet Indexing: 1 Degree
Horizontal Table/Pallet Size in mm: 500mm
Number of Pallets: 2
X-Travel: 32"
Y-Travel: 32"
Z-Travel: 32"
Rapid Traverse: 2363 IPM
Cutting Feed Rate: 2363 IPM
SPINDLE
Spindle Taper Type: CAT#50
Spindle Speed: 7,000 RPM
Spindle Motor: 40 HP
TOOL CHANGER
Tool Magazine Capacity: 60
Tool Changer Type: Chain
Tool Change Time: 1.8 seconds
Chip-to-Chip Time: 4 seconds
CONTROL
Control Make/Model: Mazatrol Matrix Nexus Control
OPTIONS
EIA/ISO Code Input
12.1" Color LCD
USB 2 Port
LAN Port
Memory Card
Distance from Spindle Center to Top of Pallet: 3.94" ~ 35.43"
Distance from Spindle Nose to Pallet Center: 5.91" ~ 37.40"
Maximum Workpiece Height: 39.37"
Maximum Workpiece Diameter: 35.43"
Type of Servo Drives: Digital AC Motors
Inch/Metric Conversion
Auto Tool Length Measurement & Breakage Detection
Prep for Visual Tool ID/Data Mgt.
Chip Conveyor
80 Tool Chain Magazine
Std. Thru Spindle Coolant with High Pressure Prep
Coolers for Ball screw (X,Y,Z-Axis)
Preparation for Visual Tool ID/Data
Spindle Chiller Unit
High Torque Spindle 774NM/7,000 RP AC 40 HP
Index Table 1 Degree / 360 Positions
2 Pallet Changer
Multitap Transformer
Windows 2000 Operating System
213 PSI Thru Spindle with High Pressure Preparation
Additional Work Light (Halogen)
Coolant Types: Thru-Spindle Coolant
Coolant PSI: 213 PSI
High Pressure Coolant PSI: 213 PSI
Chip Removal: Chip Conveyor
Specifications
Manufacturer | MAZAK |
Model | Nexus HCN-6000-II |
Year | 2008 |
Condition | Used |
