HAAS VF-6SS 4-AXIS PRECISION VERTICAL MACHINING CENTER 2011

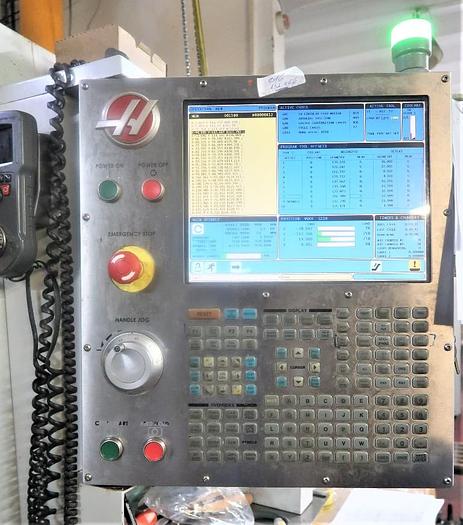

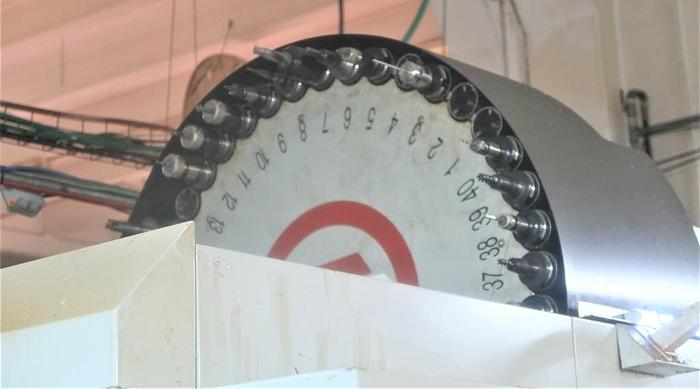

2011 HAAS VF-6SS 4-AXIS PRECISION VERTICAL MACHINING CENTER Specifications Travels: X-Axis 64" Y-Axis 32" Z-Axis 30" + 8" Spindle nose to table (max.) 35" Spindle nose to table (min) 5" Table: Length & width 64"/28" T-Slot width 5/8" T-Slot center distance 4.92" Number of Std T-Slots 5 Max. weight on table (evenly distributed) 4000 lbs Spindle: Max. rating 30 HP Max. speed geared spindle 12,000 RPM Max. torque 450 ft-lb @ 500 RPM Drive system 2-speed geared head Taper 40 BT Bearing lubrication Air/Oil injection Cooling Liquid cooled Feedrates: Rapids on X, Y & Z 540"/600"/600" in/min Max. cutting 500" in/min Axis Motors: Max. Thrust X, Y & Z 5600 Lb. Tool changer: Type SMTC Capacity 40+1 Max. tool diameter (adjacent empty) 10" Max. tool diameter (full) 4" Max. tool length (from gage line) 16" Max. tool weight 30 lb Tool to tool (avg) 4.2 sec Chip to chip (avg) 6.3 sec Air required 4 scfm, 100 psi Coolant capacity 95 gal Weight (approx.) 21,000 lbs Equipped With Haas CNC Controls 12,000 RPM 40 Taper spindle Side mount 40 position automatic tool changer 4th Axis ROTARY TABLE Early Power Fault Detection High Intensity lightning High Speed Machining Rotation & Scaling Macros & HARD Drive Spindle Orientation Full enclosure guarding, Automatic Chip Auger Programmable Coolant Nozzle Remote Jog Handle Rigid Tapping SECOND HOME POSITION INTUITIVE PROGRAMING SYSTEMS WIPS INTUITIVE PROBING, RENISHAW
