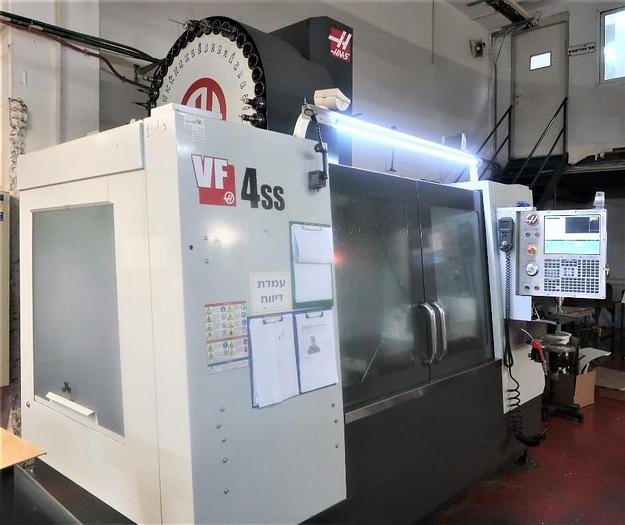

HAAS MODEL VF-4SS 3-AXIS PRECISION CNC VERTICAL MACHINING CENTER 2014
No longer available
HAAS MODEL VF-4SS 3-AXIS PRECISION CNC VERTICAL MACHINING CENTER 2014
Livonia, MI
Description
HAAS MODEL VF-4SS 3-AXIS PRECISION CNC VERTICAL MACHINING CENTER 2014
Specifications
Travels:
X 50"
Y 20"
Z 25"
Table:
Length 52"
Width 18"
Max. weight on table 1,750 lbs.
Spindle:
Speed 12,000 RPM
Drive system inline direct drive
Max. Rating 30 HP
Max. Torque 90 ft-lb@ 2000 RPM
Brushless Axis Motor: (Max. Thrust)
X & Y Axis 3,085 lb
Z-Axis 3,923 lb
Feedrates: (Max. Rapids)
X-Y-Z-Axis 1400 IPM
Max. Cutting 833 IPM
Tool Changer:
Capacity 40+1 BT40
Max. Tool Dia. 3.0"
Tool to Tool 1.6 sec
Chip to Chip 2.2 sec
Machine weight (approx) 13,300 lbs.
Equipped With

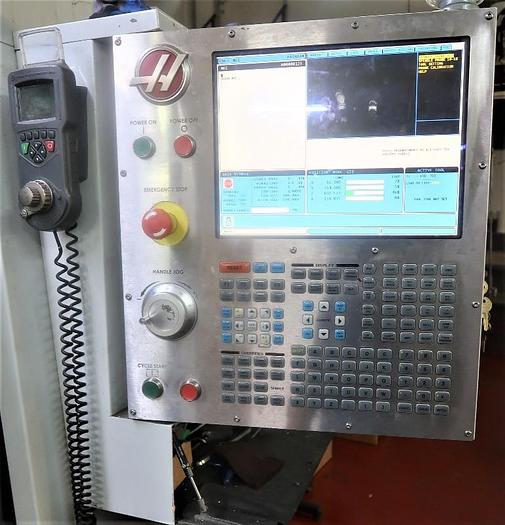

Haas CNC Controls

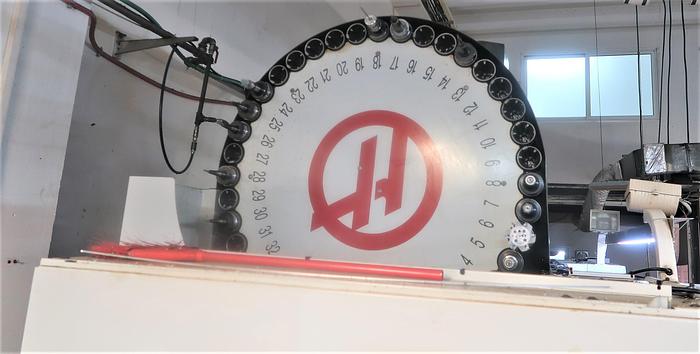

40 Position side mount automatic tool changer
12,000 RPM inline direct drive spindle

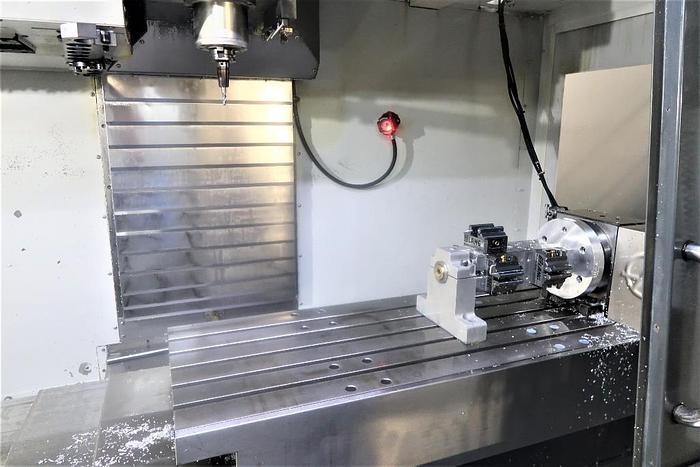

High speed machining, 4th Axis TABLE
Rotation & Scaling, Spindle orientation, Rigid tapping
Intuitive Probing, Renishaw, Early Power Fault detection
INTUITIVE PROGRAMING, Programmable coolant nozzle, Coolant system & Chip Auger
HIGH INTENSITY LIGHTING
EARLY POWER FAULT DETECTION
Specifications
Manufacturer | HAAS |
Model | VF-4SS |
Year | 2014 |
Condition | Used |
